Protective roof
3.1 Simple roof

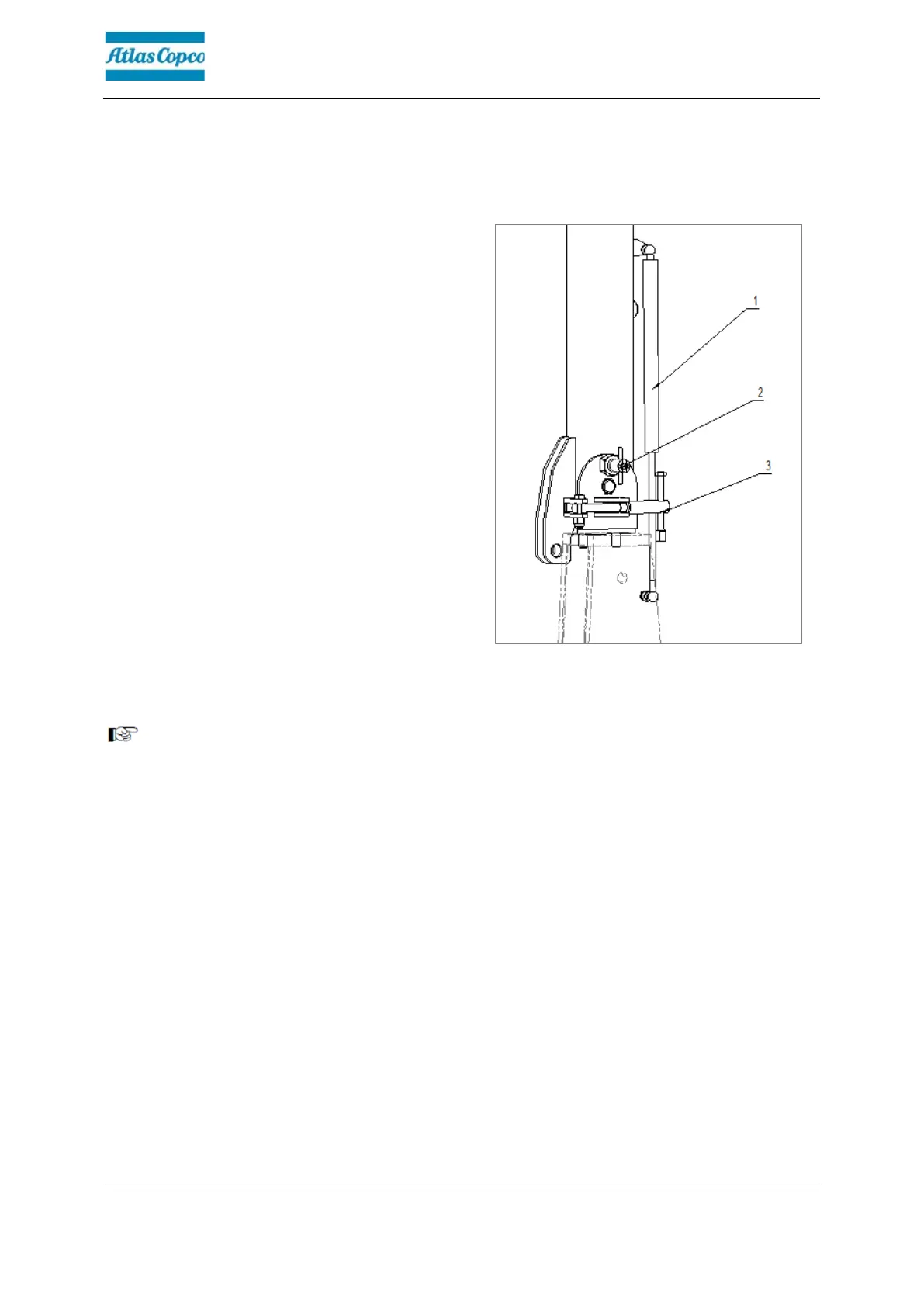

1=Gas spring
2=Locking device for raising / lowering
the roof
3=Locking device for raising the roof /
working condition
- Raise the roof:
release the locks (2) on both sides of the roof, push the roof forwards to its
uppermost position, and secure the locking devices (3) & (2) on both sides of the
roof.
- Lower the roof:
release the locks (3) & (2) on both sides of the roof, pull the roof backwards to
collapse the gas springs (1), and secure the locks (2) on both sides to lock the
protective roof and keep it in folding posisition.
