User's Manual 294 Document #: LTRT-65422

MP-11x & MP-124

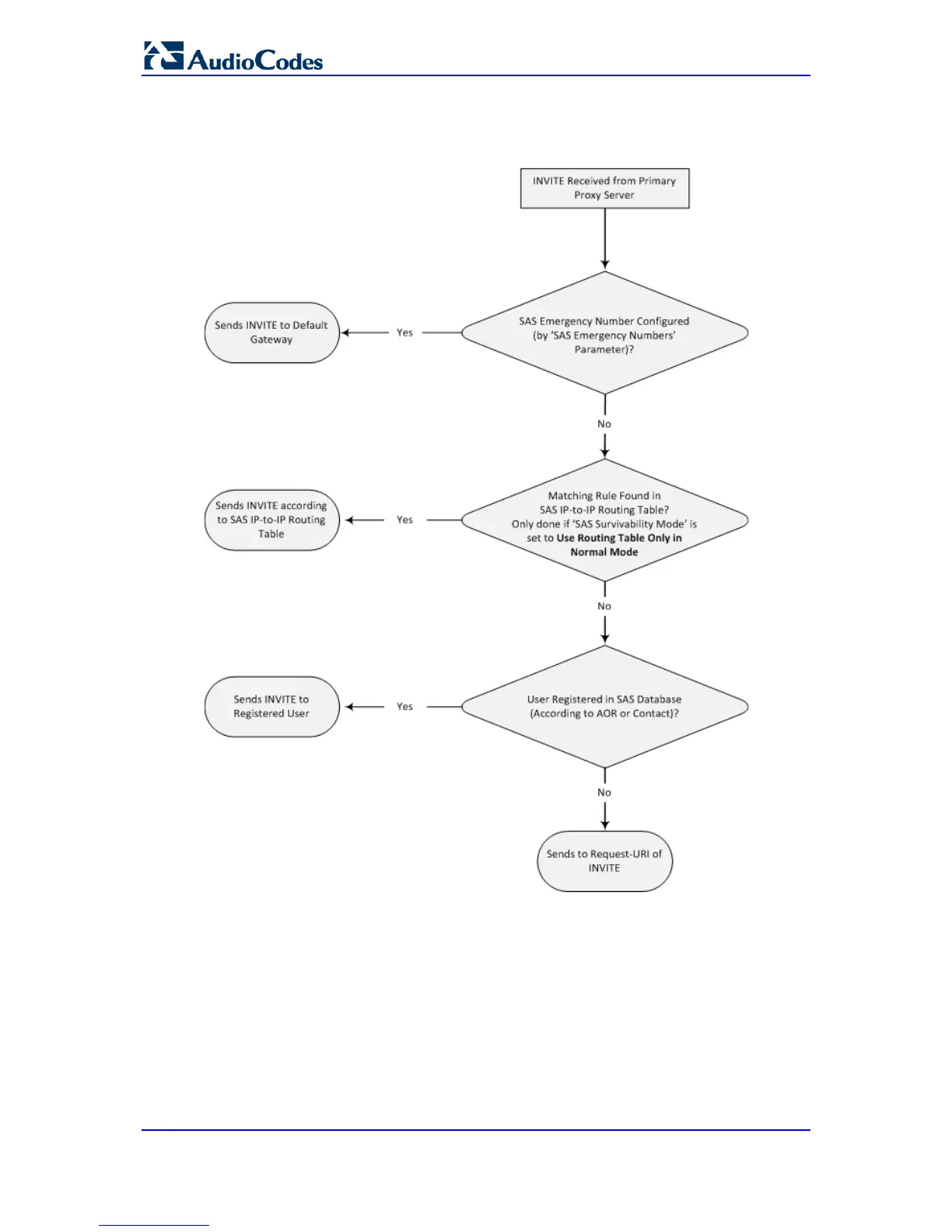

The flowchart below displays the routing logic for SAS in normal state for INVITE

messages received from the external proxy:

Figure 26-6: Flowchart of INVITE from Primary Proxy in SAS Normal State
