36.8 Viewing IP Connectivity
The IP Connectivity page displays on-line, read-only network diagnostic connectivity
information on all destination IP addresses configured in the Tel to IP Routing page (see
'Configuring Tel to IP Routing' on page 223).
Note: The information in columns 'Quality Status' and 'Quality Info' (per IP address)
is reset if two minutes elapse without a call to that destination.
 To view IP connectivity information:
1. In the Routing General Parameters page, set the 'Enable Alt Routing Tel to IP'
parameter (AltRoutingTel2IPMode) to Enable or Status Only (see 'Configuring
General Routing Parameters' on page 223).
2. Open the IP Connectivity page (Status & Diagnostics tab > VoIP Status menu > IP
Connectivity).

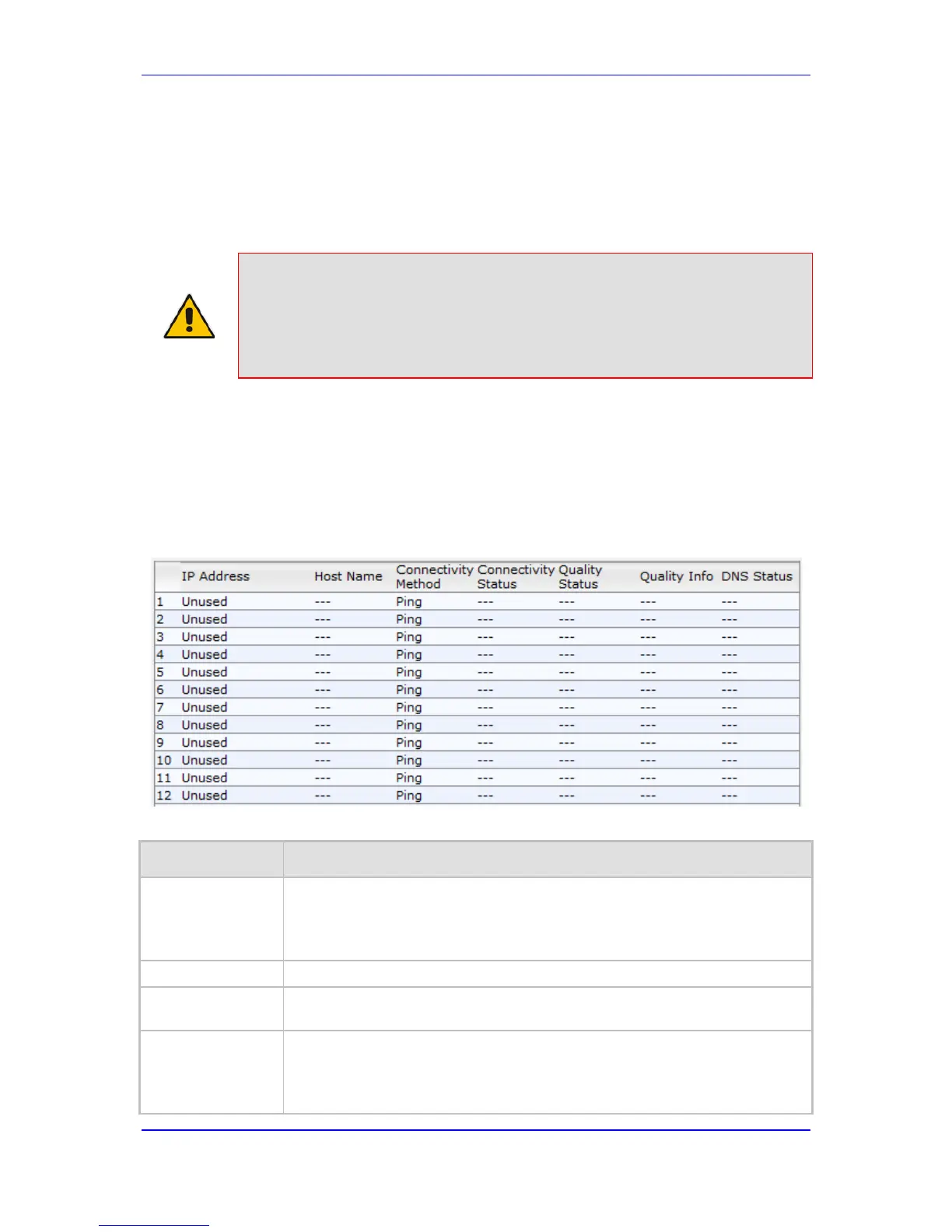

Figure 36-6: IP Connectivity Page
Table 36-4: IP Connectivity Parameters
Column Name Description
IP Address
The IP address can be one of the following:
 IP address defined as the destination IP address in the Tel to IP Routing.
 IP address resolved from the host name defined as the destination IP
address in the Tel to IP Routing.
Host Name
Host name (or IP address) as defined in the Tel to IP Routing.
Connectivity
Method
The method according to which the destination IP address is queried
periodically (ICMP ping or SIP OPTIONS request).
Connectivity
Status
The status of the IP address' connectivity according to the method in the
'Connectivity Method' field.
 OK = Remote side responds to periodic connectivity queries.
 Lost = Remote side didn't respond for a short period.
