23.9

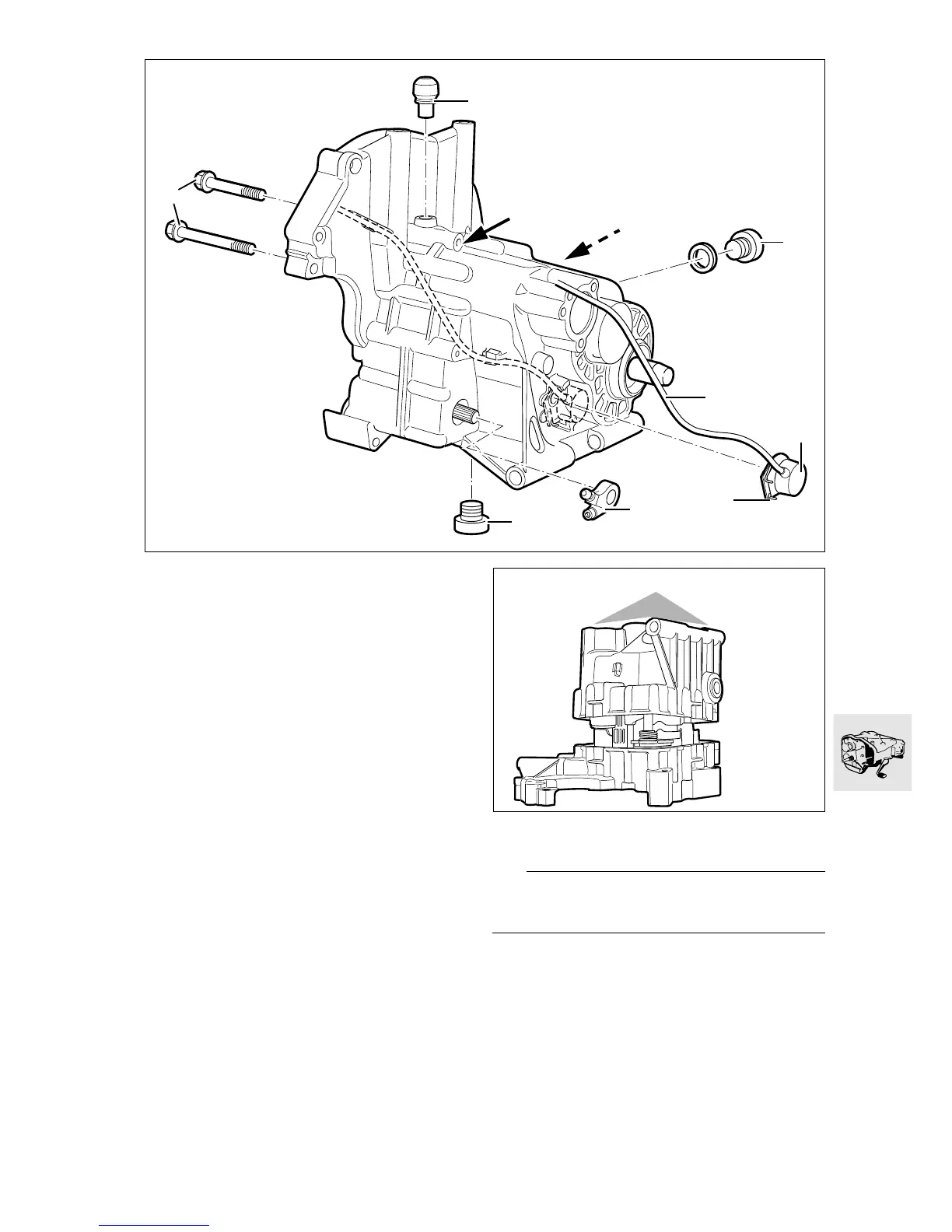

Dismantling gearbox
Removing gearbox housing
•
Take out oil filler/level check screw (2).
•
Take out oil drain plug (7) and drain the oil out of
the gearbox into a suitable tray.
•
Remove breather (1).
•
Unclip cable (3) for neutral indicating switch (4).
•
Compress spring (5) and take off neutral indicat-
ing switch (4).
•
Remove selector lever (6).
•
Carefully press back centering pins (arrows),
working from the back of the gearbox.
•
Remove screws (8) securing cover to housing.
•
Set the gearbox down on its cover.
e Caution:
Avoid damage to the housing cover and painted sur-
faces.
•
Heat the bearing points in the housing to
80 °C... 100 °C (176 °F...212 °F).
•
Strike lightly with a plastic-faced hammer to re-
lease the gearbox.
C230012
1
4
7
6
5
3
8
2
C230020
h
80…100
w
