46.10

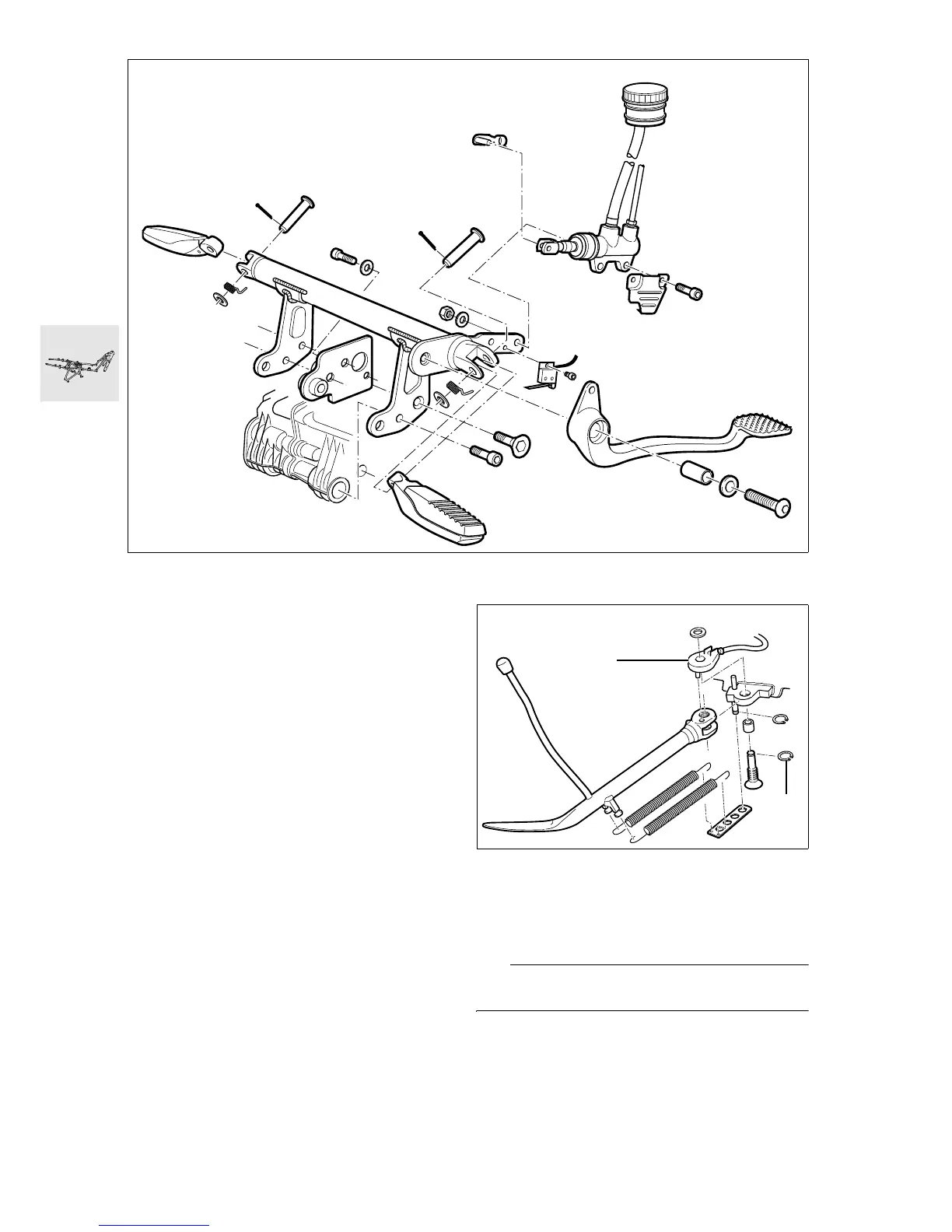

Removing/installing footrest
supports
X Tightening torque:
Footrest support to engine
M12 bolt....................................................... 71 Nm
M8 bolt......................................................... 21 Nm
Brake master cylinder to footrest assembly.... 8 Nm
Brake pedal to footrest assembly ................. 37 Nm
Removing and installing side (prop)
stand
•
Remove keeper (1) from side (prop) stand switch.
•
Pull off side (prop) stand switch (2).
•
Disconnect tension springs.
•
Remove side (prop) stand.
e Caution:
Note wiring paths.
Lubricant:.................. e.g. Staburags NBU 30 PTM
X Tightening torque:
Side stand to pivot mount
(clean thread + Loctite 243).......................... 42 Nm
C460040
C460050
2
1
