23.22
Assembling gearbox
Installing input, output and
intermediate shaft
•

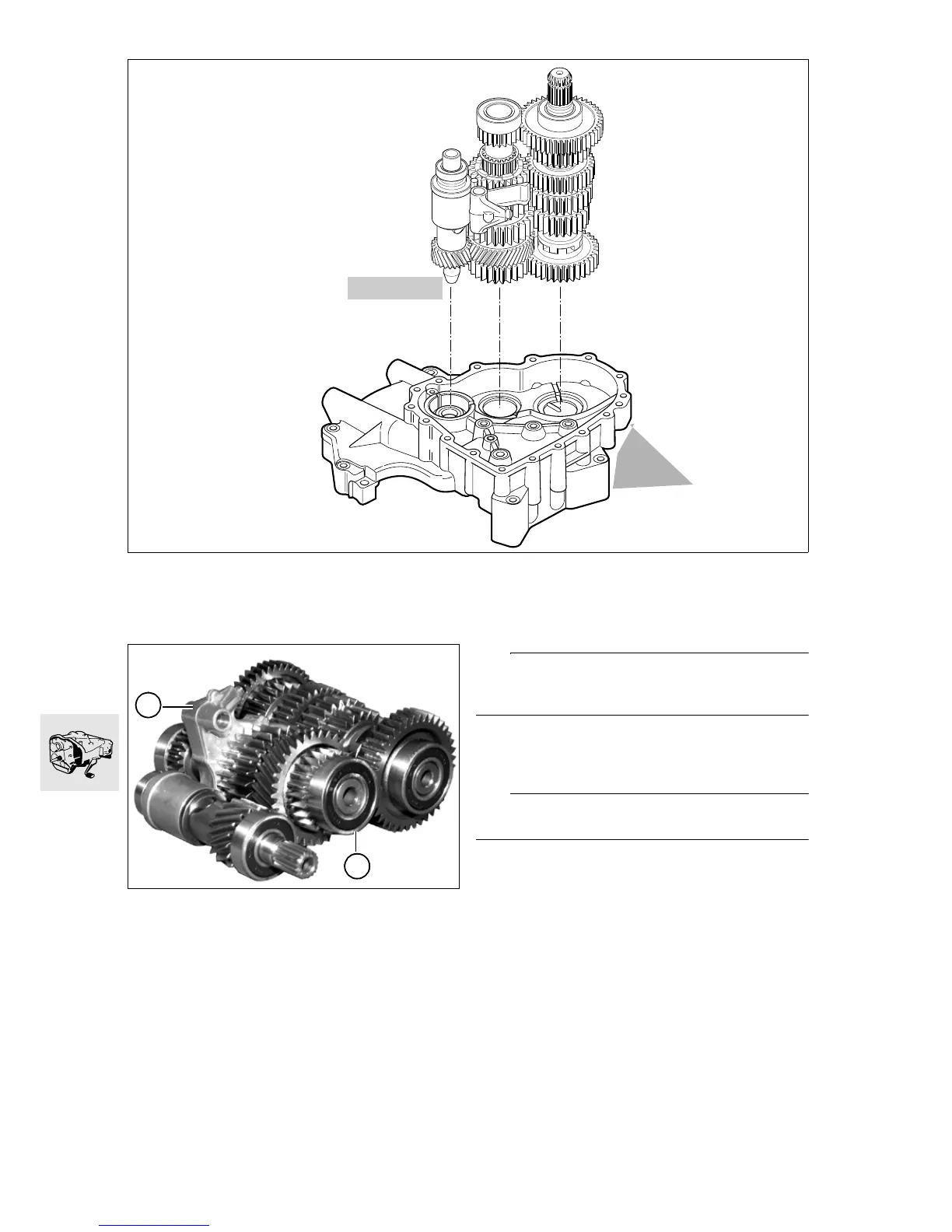

Insert selector shaft (1) into intermediate shaft (2).
•
Align input, output and intermediate shafts so
that their gear teeth mesh and the selector fork is
in the position illustrated.
•
Push slip-over sleeve, BMW No. 23 4 712, on to
the input shaft splines.
L Note:
This is only necessary if the shaft sealing ring is in-
stalled.
•
Heat the bearing points on the cover to
80 … 100 °C (176 ... 212 °F).
•
Insert the input, output and intermediate shafts
together.
e Caution:
Check that the gearbox shafts are correctly seated.
•
Install the 1st/3rd gear and 2nd/4th gear selector
forks.
C230100
h
80…100
w
23 4 712
C230070
1
2
