BMW R 850 C - Removing and Installing ABS Unit; Removing the ABS Unit

34.16
Removing and installing ABS unit
e Caution:
Work on the ABS unit is only to be performed by an
authorized BMW workshop.
Removing the ABS unit
•
Remove fuel tank.
•
Disconnect ABS brake lines (1) at ABS unit.
e Caution:
If brake fluid escapes, it may damage paint.
Line connections must be protected against dirt
penetration; if ncessary seal/cover over.
•
Hold the front brake lever against the handlebar
grip with a rubber band (to close the brake fluid
feed bore).
e Caution:
Switch off ignition, disconnect and insulate the
ground (earth) strap.
•
Remove cover (2) from ABS control unit, press
the lock in with a screwdriver and pull the cover
up.
•
Detach wires (3).
•
Pull off 2-pin plug (4).
•
Pull off the central plug (5).
•
Remove the ABS unit (6).

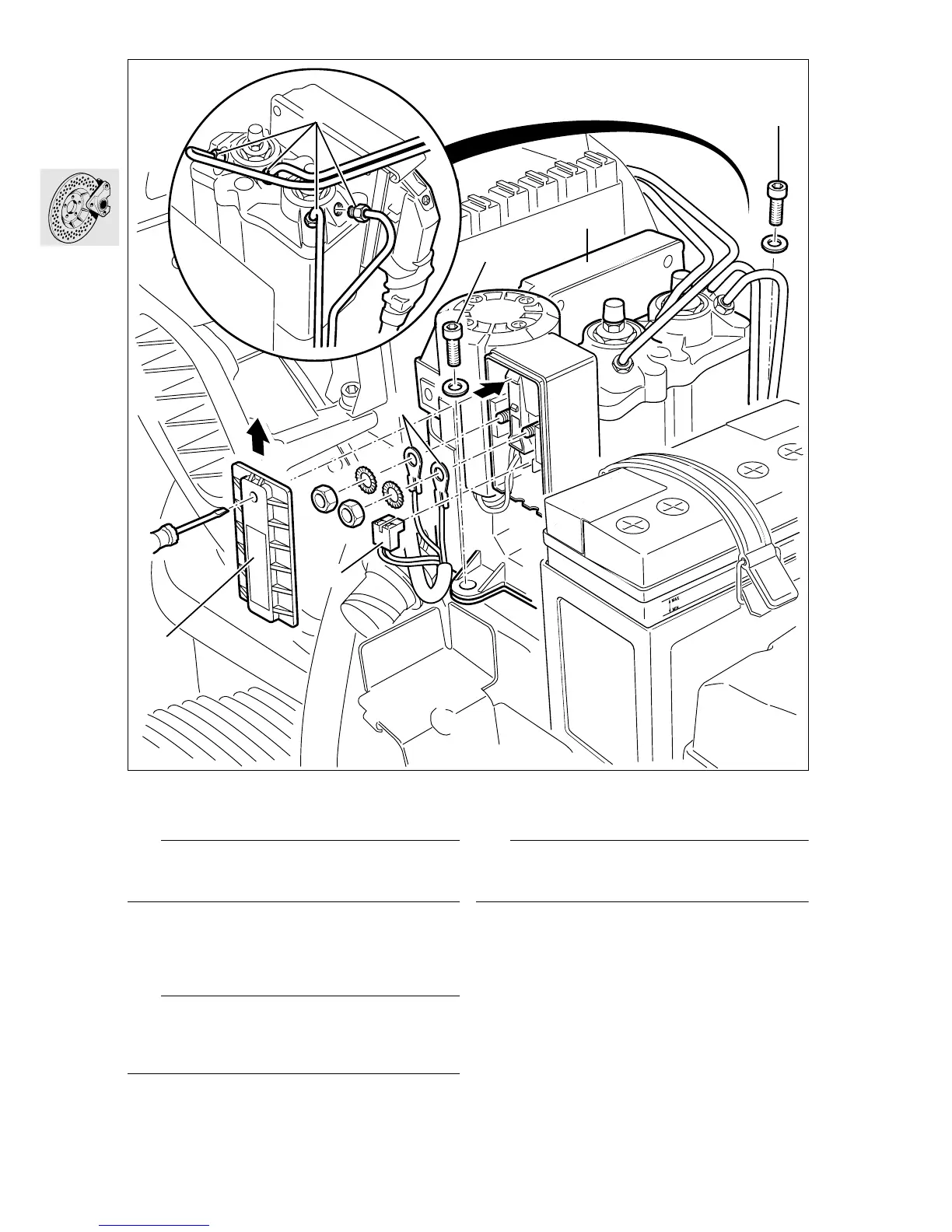

C340010
