23.24
Assembling gearbox housing
•

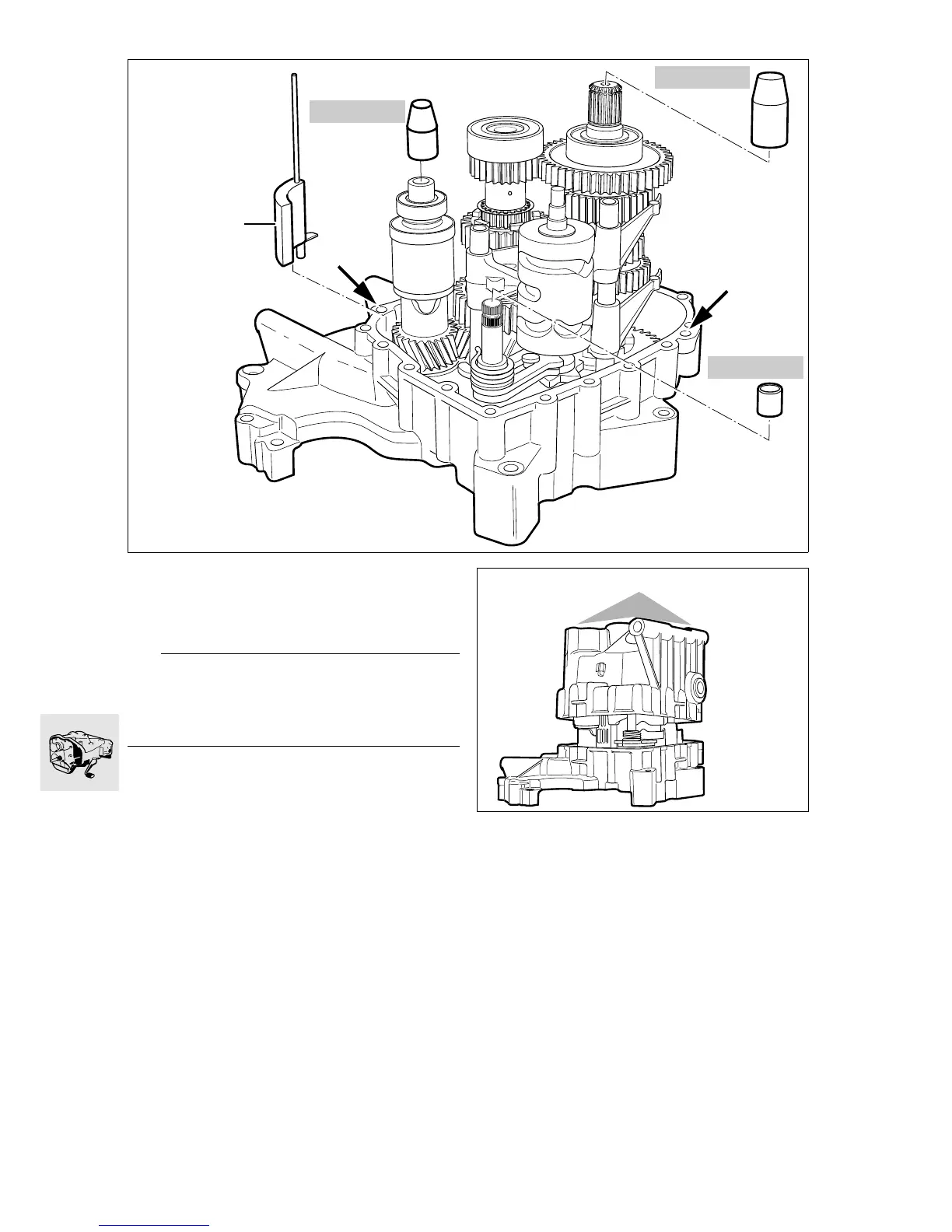

Install reamed pins (arrows) in cover.
•
Install breather tube (1) in housing cover.
e Caution:
The sealing faces must be free from oil or grease.
The sealing material sets within 30 minutes; within
this time, place the housing in position and screw it
down.
•
Using the metering device, apply Loctite 5203
surface sealant to the cover joint face.
•
Place slip-over sleeve, BMW No. 23 4 732, on
the output shaft.
•
Place slip-over sleeve, BMW No. 23 4 712, on
the input shaft.
•
Place slip-over sleeve, BMW No. 23 4 612, on
the selector shaft.
•
Heat the bearing seats in the housing to
80 … 100 °C (176 ... 212 °F) and place the hous-
ing on the cover.
C230090
1
23 4 732
23 4 712
23 4 612
C230020
h
80…100
w
