11.60

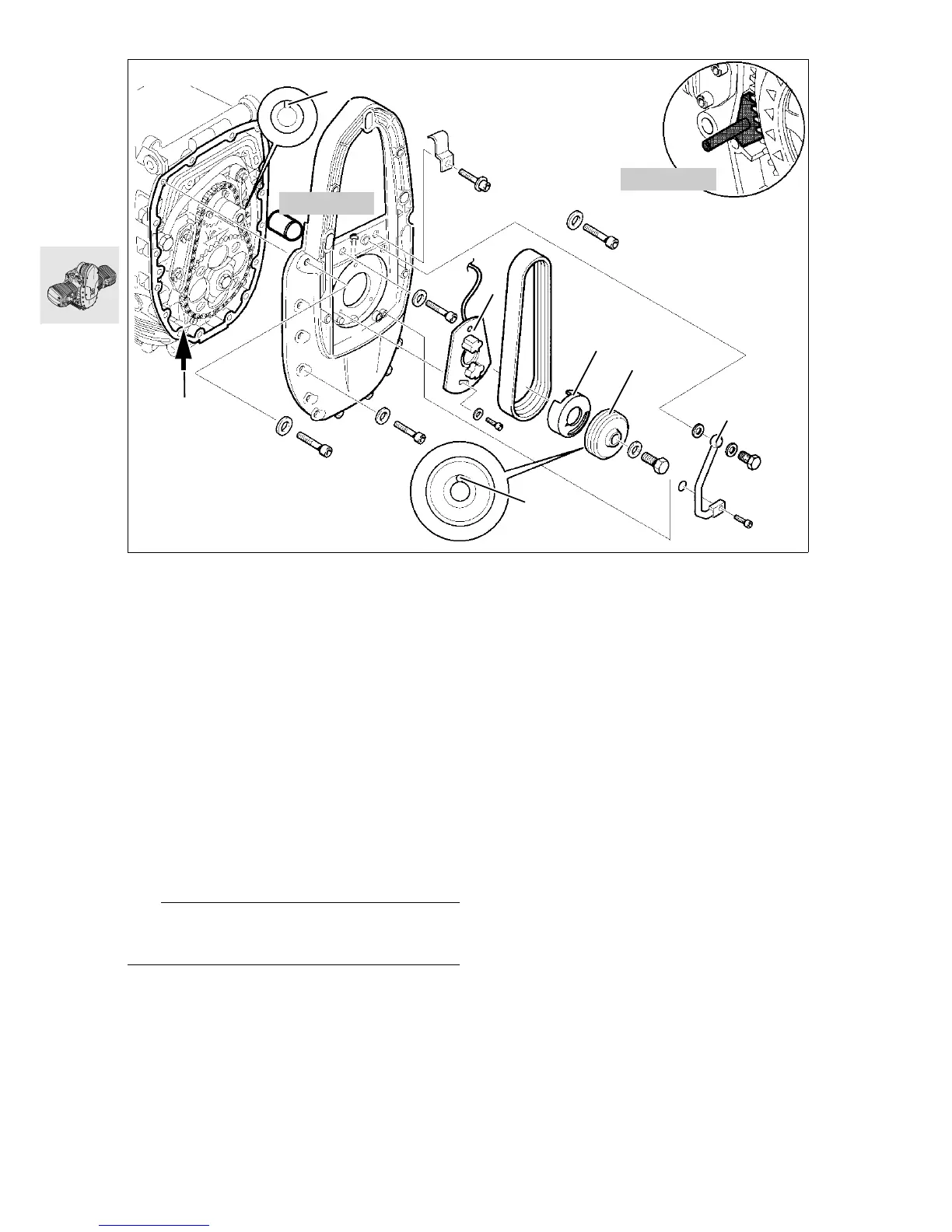

Installing alternator mount cover
•
Place sliding sleeve, BMW No. 11 5 680, on
crankshaft.
•
Apply 3-Bond 1209 to the sealing face (arrow),
which must be clean and free from grease.
•
Install alternator mount cover.
X Tightening torque:
M 8 screw .................................................... 20 Nm
M 6 screw ...................................................... 9 Nm
Installing magnetic gate/belt pulley
•
Install Hall-effect trigger plate (1).
•
Lock clutch housing with special tool
BMW No. 11 5 640.
•
Secure rotor (2) of Hall-effect gate to the Poly-V
belt pulley (3) with, for example, Loctite instant
adhesive.
•
Install the Poly-V belt pulley.
e Caution:
Install retainer for Hall-effect gate rotor (4) at groove
in crankshaft (5).
X Tightening torque:
Retaining screw for belt pulley...................... 50 Nm
•
Install rotary breather pipe (6) with new sealing
rings.
X Tightening torque:
Vent line to alternator mount cover
M 8 screw .................................................... 20 Nm
Banjo screw ................................................. 25 Nm
11 5 680
RS110450
11 5 640
6
3
2
1
4
5
u
