Checking front/rear wheel rim for
runout
•

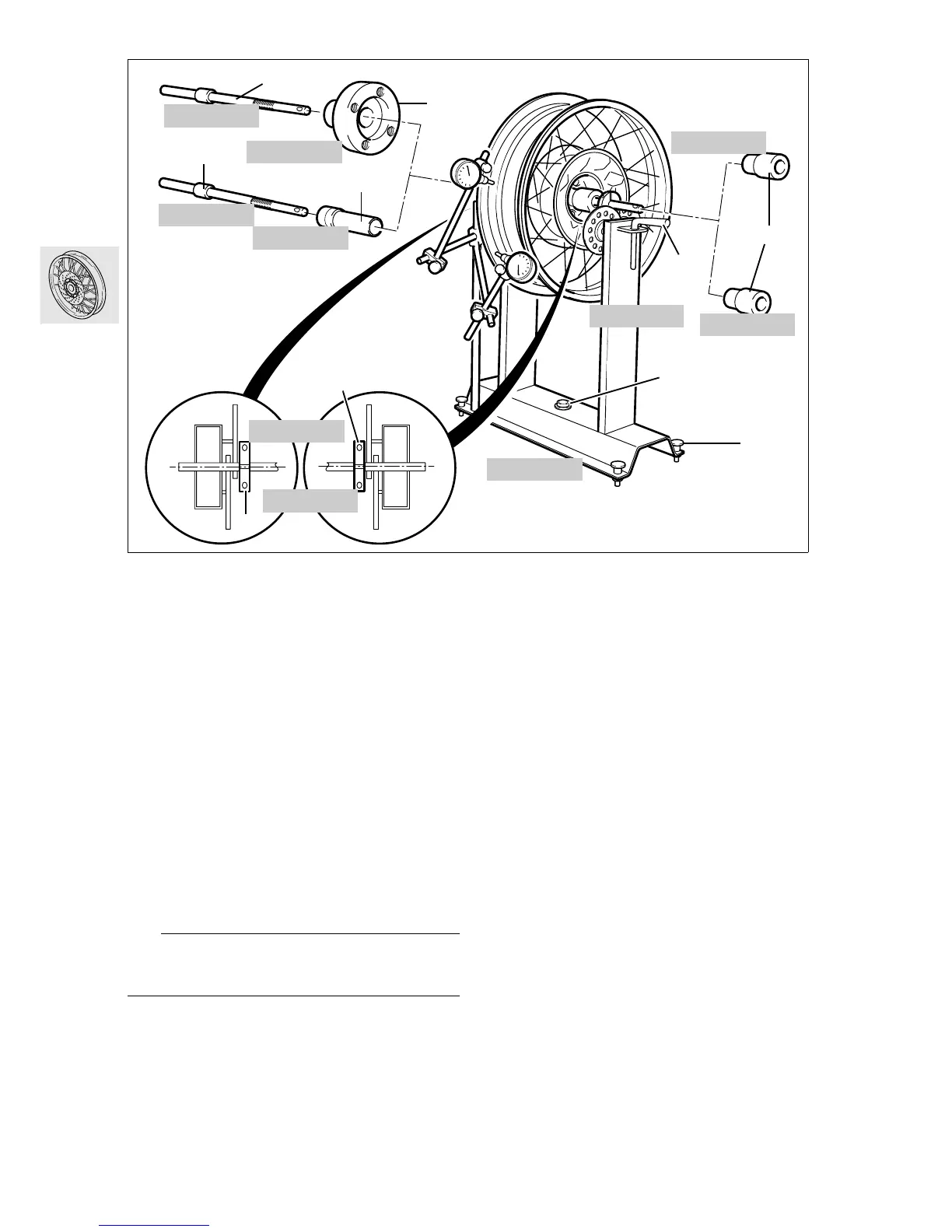

Remove tyre.
•
Install the balancing shaft (1),
BMW No. 36 3 606, with measuring bushing (2)
and nut (3), BMW No. 36 3 616, in the front wheel
bearings.
•
Lightly preload bearing with knurled nut (3).
•
Use pin (4) to lock the balancing shaft against the
balancing stand to prevent the shaft from turn-
ing.
•
At the rear wheel, attach mounting fixture (5),
BMW No. 36 3 613, on the centering collar side
with the wheel studs, then install the balancing
shaft.
•
Clamp locating discs (6), BMW No. 36 3 615, to
the balancing shaft at left and right in such a way
that the shaft cannot wander.
•
Align the balancing fixture, BMW No. 36 3 600,
with the knurled screws/bubble gauge (7/8).
•
Check radial/axial runout.
e Caution:
Only apply dial gauge to machined inner face of
wheel rim.
Max. vertical runout/horizontal runout
.................................................... 1.3 mm (0.05 in)
C360080
36 3 606
36 3 616
36 3 613
36 3 615
36 3 616
36 3 600
36 3 606
36 3 616
36 3 616
36 3 615
2
1
1
3
8
7
6
6
5
4
