46.8

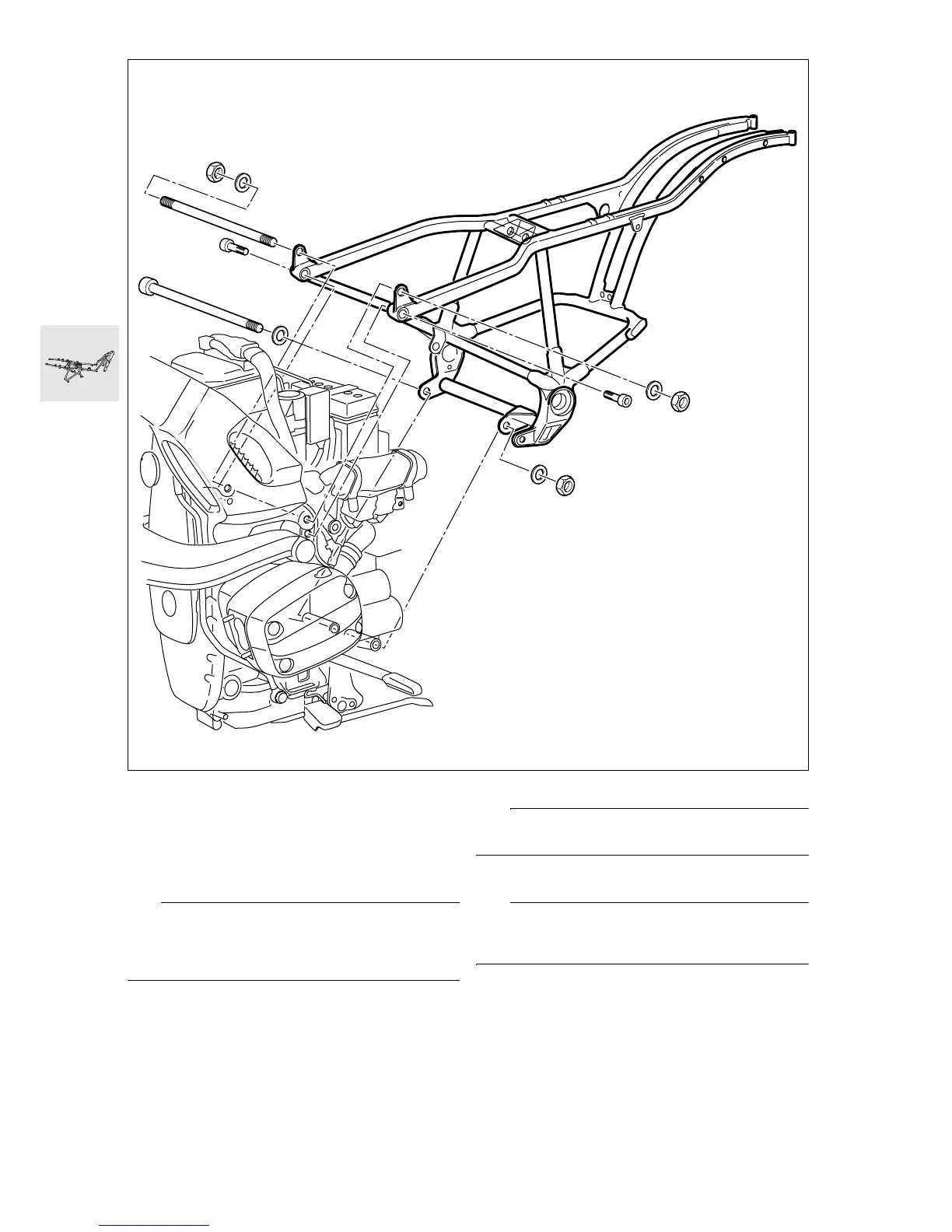

Removing and installing rear frame
•
Attach stand to motorcycle with extension bush-
ings, BMW No. 00 1 520/529.
•
Remove seat.
•
Remove side trim.
•
Remove fuel tank.
e Caution:
Switch off ignition.
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.
•
Remove rear wheel.
•
Detach rear brake caliper.
•
Detach ABS sensor.
•
Detach speedometer signal transmitter.
•
Detach brake line cover on swinging arm.
•
Tie the swinging arm up to the frame with a strap.
•
Remove suspension strut.
L Note:
Press to the rear at the top.
•
Pull the swinging arm up with the strap.
•
Remove silencer (muffler).
L Note:
Alternately strike the silencer (muffler) rearwards
with the palm of the hand or pull it.
•
Disconnect the oxygen sensor plug.
•
Remove rear wheel drive unit.
C460030
