33.15

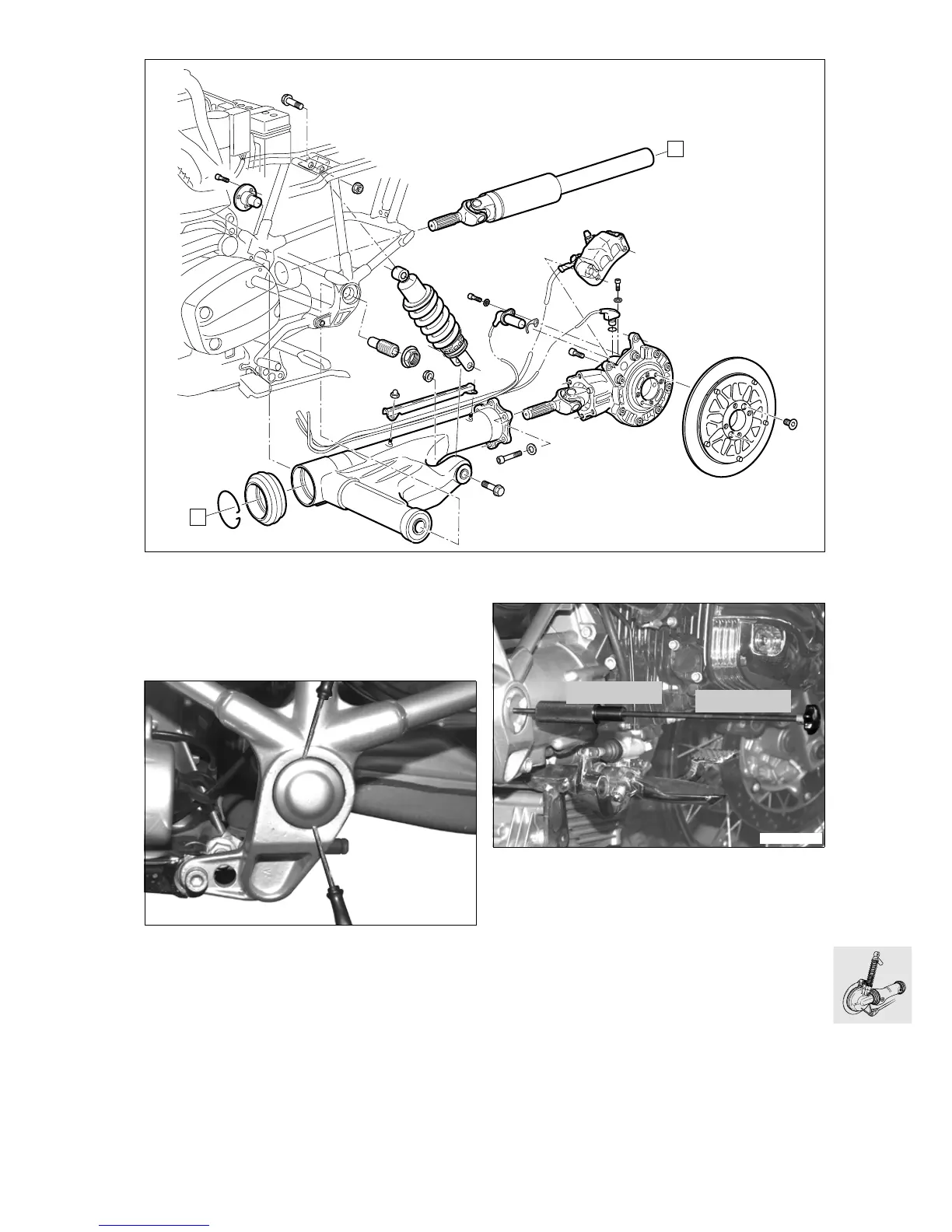

Removing/installing rear swinging
fork
Removing rear swinging arm
•
Detach the lower suspension strut mount (1)
.
•
Force off the left swinging arm bearing cap using
two screwdrivers in the holes.
•
Loosen the free swinging arm bearing journal.
•
Detach the fixed swinging arm bearing journal.
•
Using pull rod, BMW No. 00 8 581, and impact
weight, BMW No. 00 8 582, pull out the fixed
swinging arm bearing journal.
•
Remove the swinging arm bearing journal.
A
A
C330014
C330030
00 8 581
C330040
00 8 582
