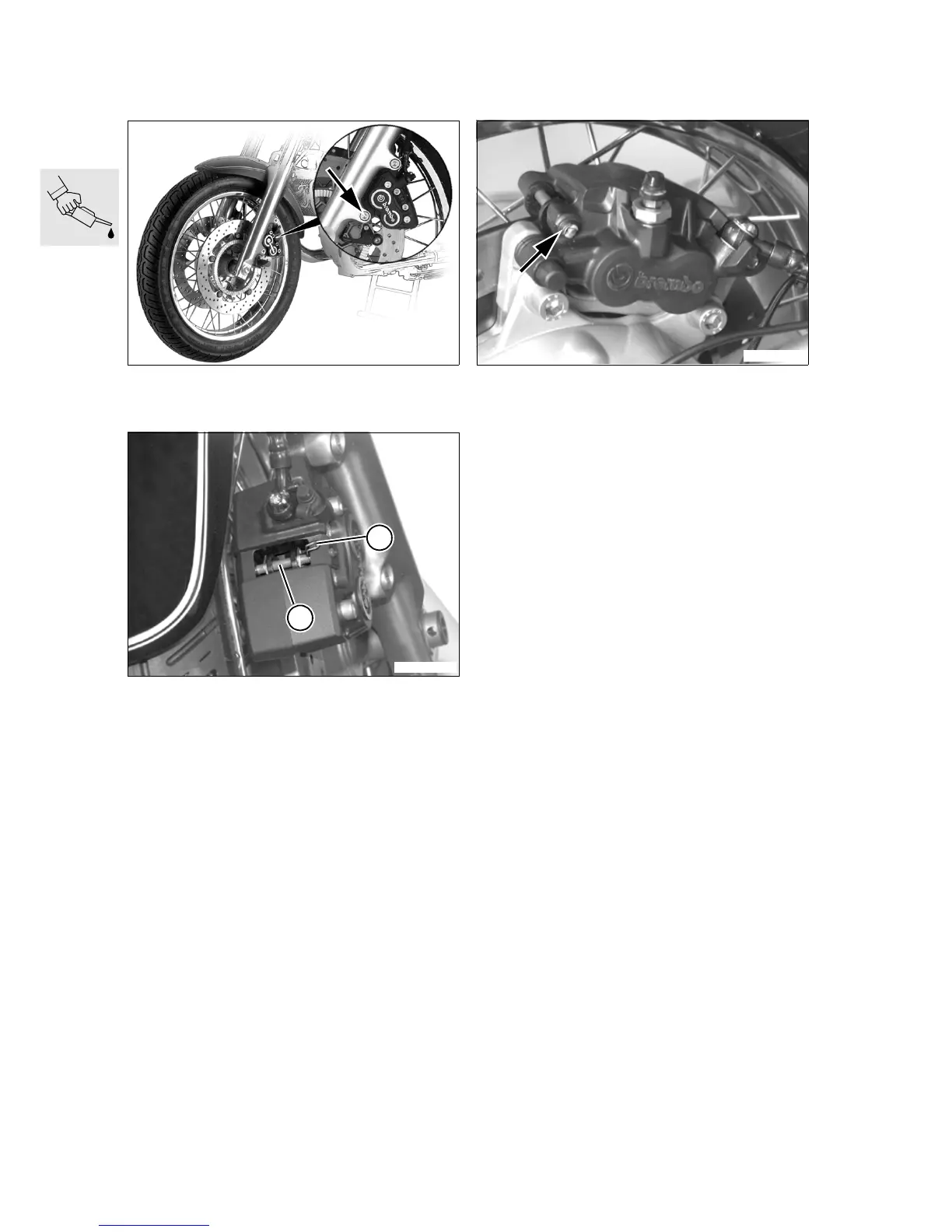

Renewing brake pads
Front brake
•
Detach/remove brake caliper from mounting (ar-
row).
•
Remove the split-pin keeper (1) from the retain-
ing pin (2).
•
Drive out retaining pin (2).
•
Remove brake pads by pulling downwards.
•
Install by following the above work instructions in
the reverse order.
•
Before installing the brake caliper, force the pis-
tons fully back with resetting tool,
BMW No. 34 1 500.
X Tightening torque:
Brake caliper at fork slider tube.................... 40 Nm
Renewing brake pads
Rear brake
•
Loosen the rear wheel.
•
Unfasten/remove brake caliper.
•
Remove circlip (arrow) at retaining pin.
•
Drive the retaining pin out towards the wheel
side.
•
Remove brake pads.
•
Install by following the above work instructions in
the reverse order.
•
Before installing the brake caliper, depress the
piston fully.
X Tightening torque:
Brake caliper to rear wheel drive.................. 40 Nm
Screw the rear wheel studs in handtight, then
tighten them in a crosswise pattern.
Initial tightening............................................ 50 Nm
Final tightening........................................... 105 Nm
