11.21
Removing and installing chain
tensioner
e Caution:
Do not accidentally confuse the chain tensioner pis-
tons. When installing, fit a new gasket.

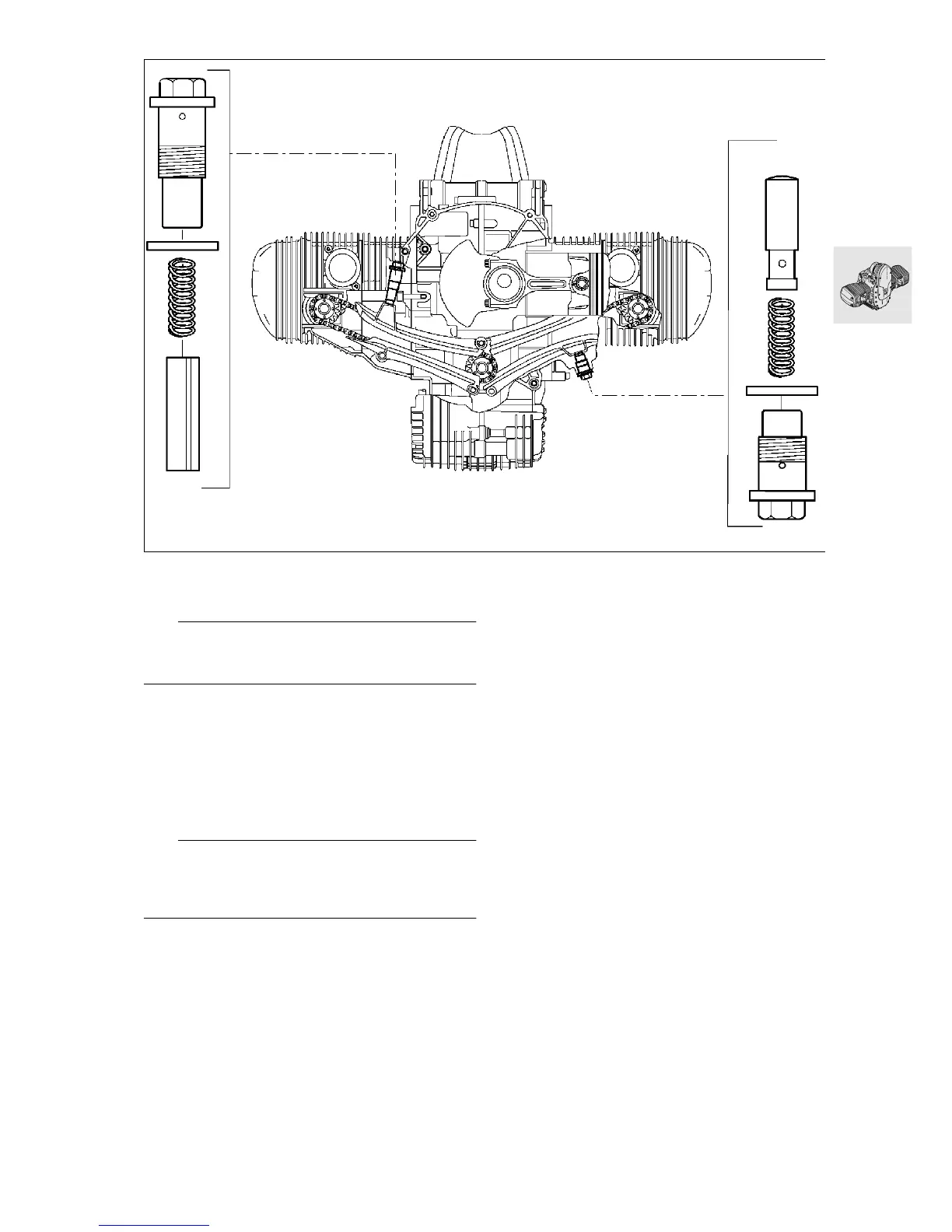

Assembly specification for timing chain ten-
sioner:
Removal:
•
Remove timing chain tensioner, then remove
camshaft sprocket from camshaft.
Installing:
•
First install camshaft sprocket, then timing chain
tensioner.
e Caution:
Failure to observe this sequence can cause the
chain tensioner piston to fall into the left side of the
timing chain cavity.
X Tightening torque:
Chain tensioner............................................ 32 Nm
RS110060
