36.9
Static balancing of front wheel/rear
wheel
•

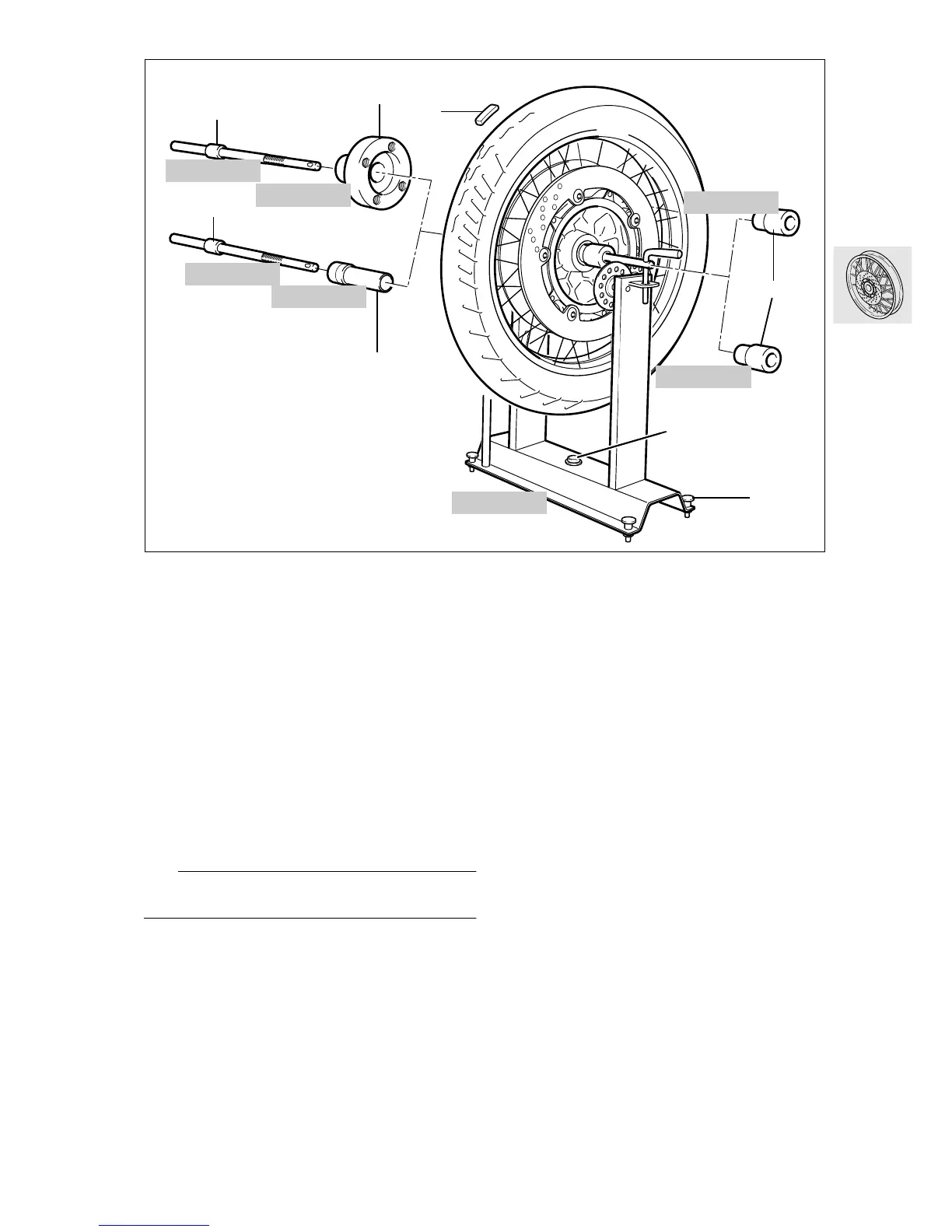

Install balancing shaft (1), BMW No. 36 3 606,
with measuring bushing (2) and nut (3),
BMW No. 36 3 616, in front wheel bearings.
•
Lightly preload bearing with knurled nut (3).
•
At the rear wheel, bolt the mounting fixture (4),
BMW No. 36 3 613, to the centering collar side
with the balancing shaft.
•
Align the balancing fixture, BMW No. 36 3 600,
with knurled screws and bubble gauge (5/6).
•
Allow wheel to settle.
•
Clean points of adhesion for balance weights.
•
Attach adhesive weights (7) opposite the heavi-
est point on both sides of the wheel rim, with the
total weight equally divided between the left and
right sides.
e Caution:
Maximum balancing weight 60 g (2.12 oz).
•
Repeat the balancing procedure as a check.
36 3 600
C360070
36 3 606
36 3 613
36 3 616
36 3 606
36 3 616
36 3 616
2
1
1
4
7
3
6
5
