34.8
Dismantling and assembling rear
brake caliper

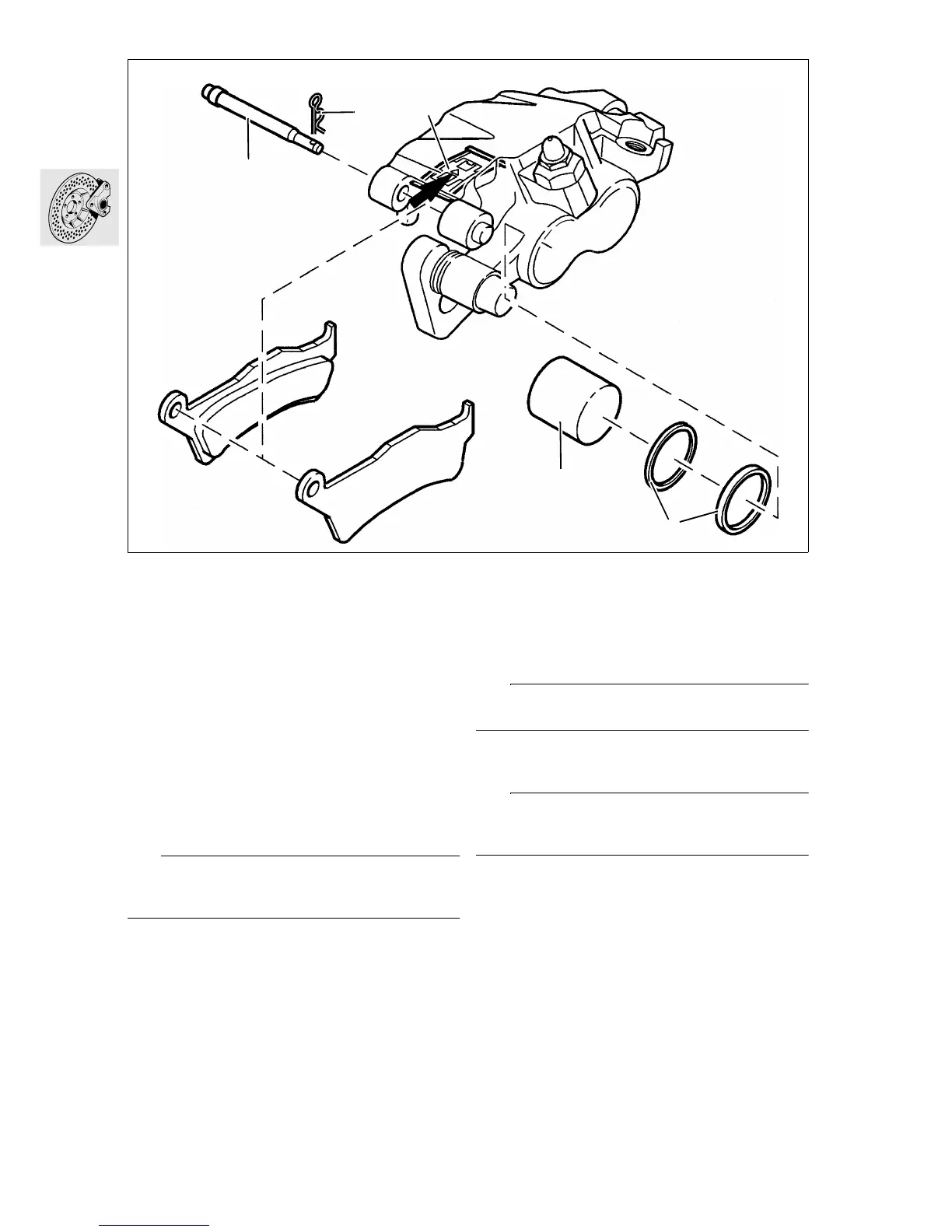

Dismantling rear brake caliper
•
Remove keeper (1).
•
Drive out retaining pin (2).
•
Take out brake pads.
•
Seal the bleed screw.
X Tightening torque:
Bleed screw at brake caliper.......................... 4 Nm
•
Hold a cloth over the brake caliper piston.
•
Carefully press out brake piston (3) with a com-
pressed air gun applied to the connecting bore;
work at low air pressure.
e Caution:
Keep fingers away from gap between pistons and
side contact face of brake pads; risk of injury.
•
Remove sealing rings (4) from left/right cylinder.
•
Inspect the brake caliper piston for hairline
cracks/score-marks/other damage.
Assembling rear brake caliper
•
Coat the new sealing rings with brake fluid and
insert them into the left/right brake caliper cylin-
ders.
•
Coat both brake caliper pistons with brake fluid
and install them.
e Caution:
Do not tilt the brake pistons when installing.
•
Coat the adapter plate locating pins with
Shell Retinax A and install the adapter plate.
•
Insert locating plate (5) into brake caliper.
L Note:
The installed position must be correct (arrow point-
ing in forward-travel direction).
•
Insert brake pads and secure with retainers.
GS340140
1
2
3
4
5
