33.17

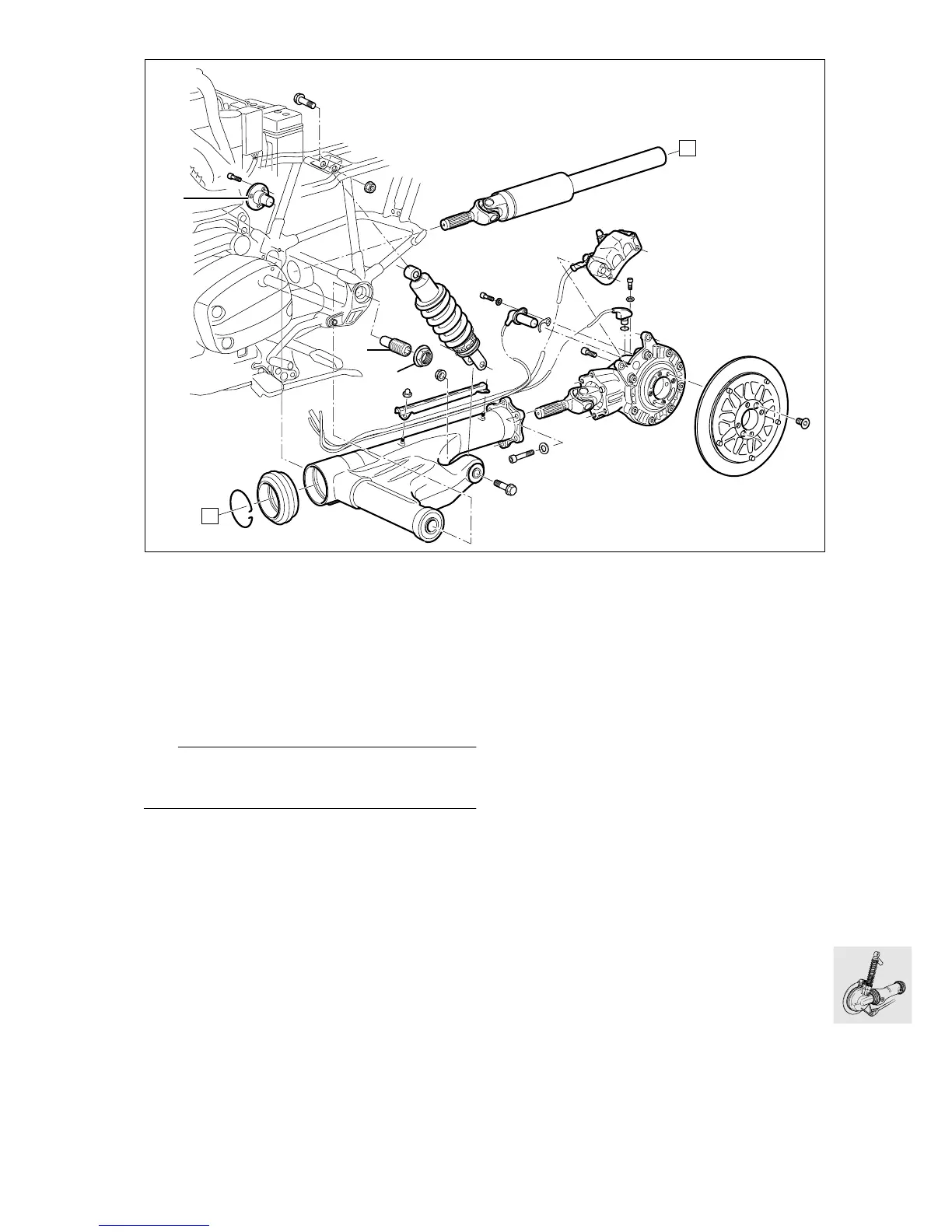

Installing rear swinging arm
•
Slide swinging arm over drive shaft as far as pos-
sible until rubber gaiter connects on housing
neck.
•
Install fixed bearing journal (1).
•
Screw in free bearing journal (2).
•
Tighten fixed bearing journal.
•
Tighten free bearing journal.
•
Tighten locknut (3).
•
Install the left swinging arm bearing cap.
e Caution:
Make sure that the O-ring is in good condition.
The drain hole must point down.
•
Secure suspension strut (1).
X Tightening torque:
Fixed bearing journal .................................... 10 Nm
Free bearing journal ...................................... 7 Nm
Locknut...................................................... 160 Nm
Suspension strut to swinging arm ................ 50 Nm
A
A
C330014
2
3
1
