34.13
Removing and installing rear ABS
sensor
L Note:
To install spacing shims, pull the sensor out by a
small amount only and pull the spacing shims out
upwards.
•
Before removing/installing, clean the sensor
bore.
•

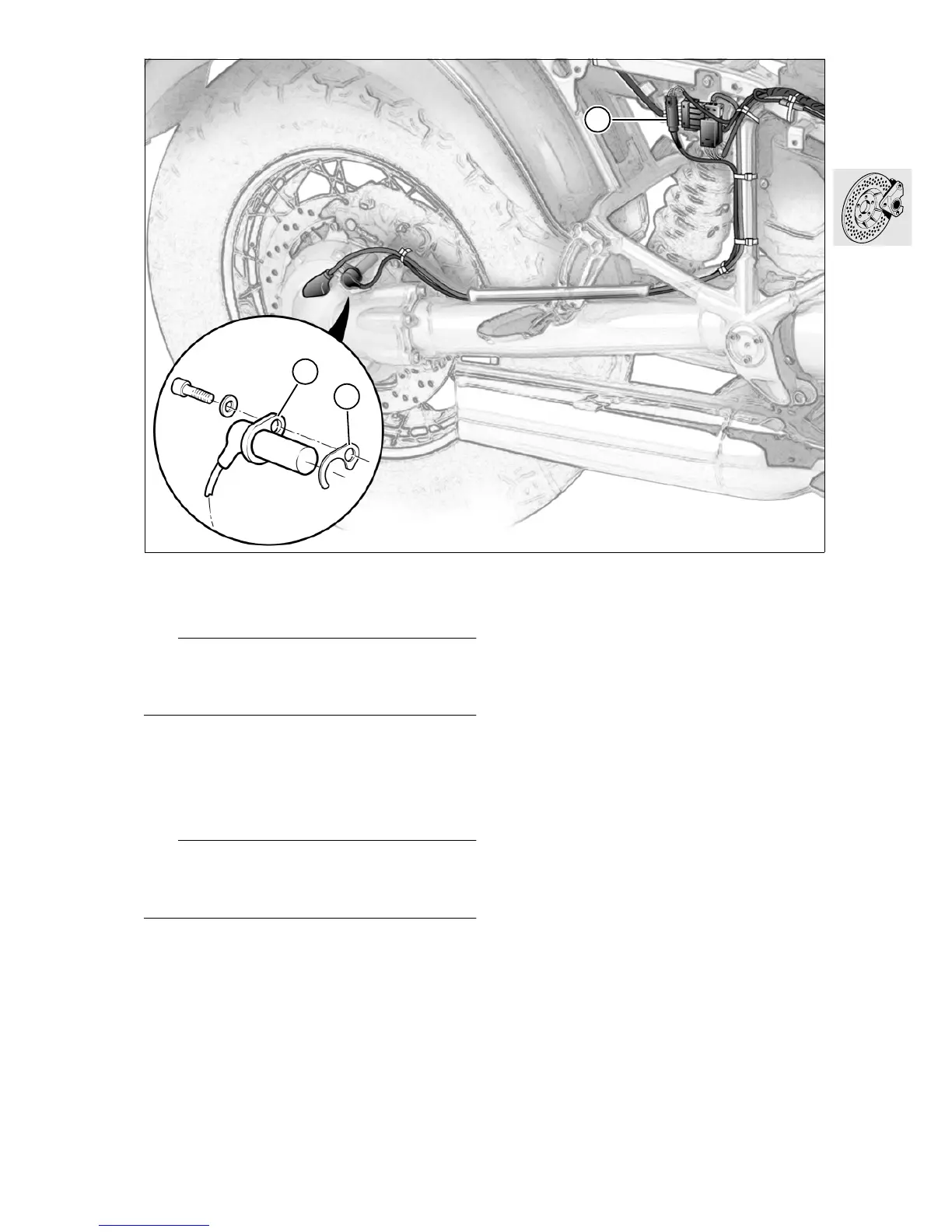

Using Torx T 25, detach sensor (1).
•
Separate plug connector (2) in the sensor line.
•
Install by following the above work instructions in
the reverse order.
•
Coat O-rings with oil before installing.
e Caution:
Run the sensor line correctly.
Check sensor gap and adjust if necessary with
spacer plates (3).
Sensor gap:............ 0.45...0.55 mm (1.77...2.22 in)
X Tightening torque:
Sensor ...........................................handtight, 4 Nm
C340070
3
1
2
