23.12

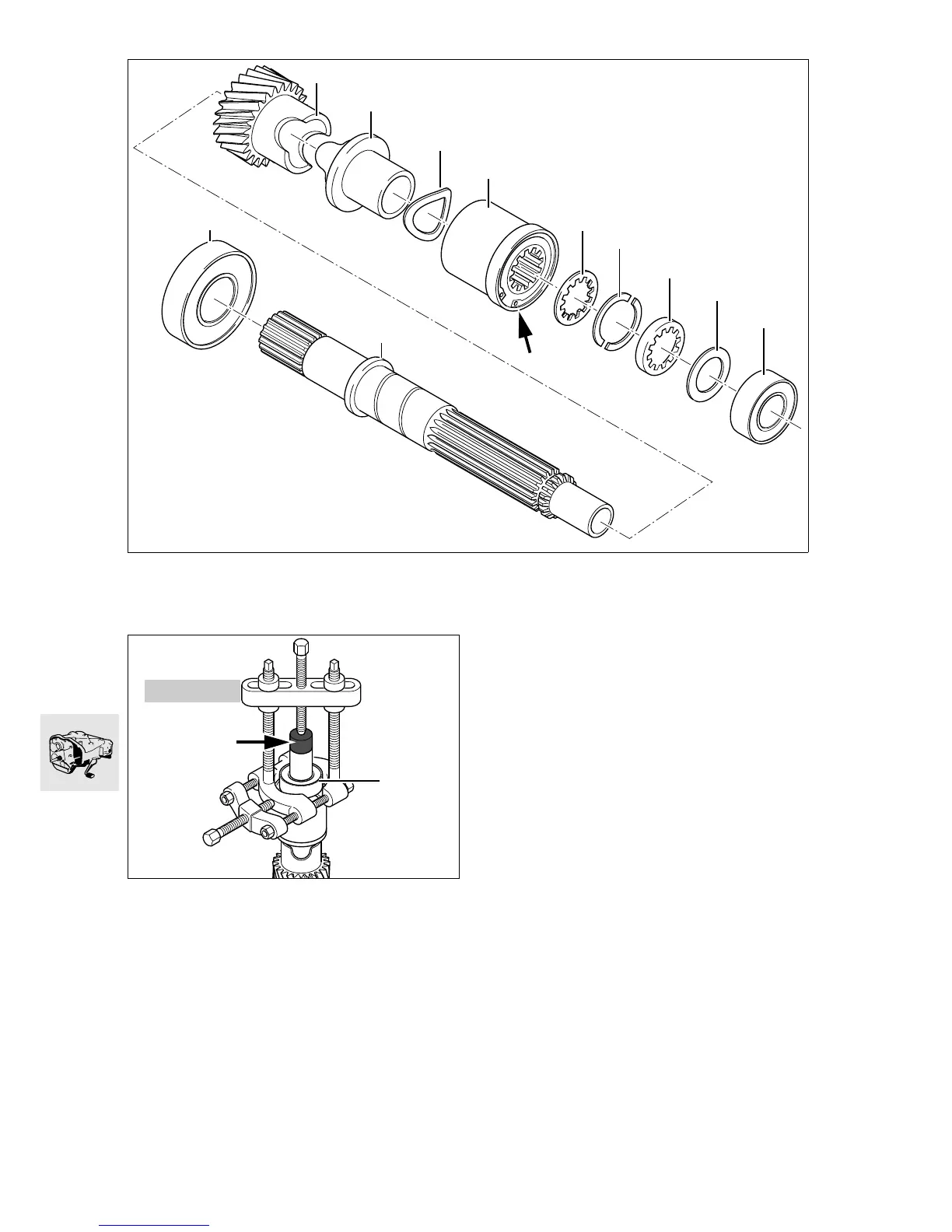

Dismantling/assembling input shaft
Dismantling input shaft
•
Clamp the input shaft into the vise, using soft
jaws.
•
Use universal puller, BMW No. 00 7 500, and
pressure head (arrow) to pull off deep-groove ball
bearing (9) with spacing washer (8).
•
Note the thickness of spacing washer (8).
•
Remove guide ring (7).
•
Compress spring cluster (4) and remove split
segment washer (6).
•
Remove support disc (5), spring cluster (4), anti-
rattle disc (3), thrust block (2) and constant-
speed gear (1).
•
Transfer input shaft (10) to a different position.
•
Use universal puller, BMW No. 00 7 500, and
pressure head (arrow) to pull off deep-groove ball
bearing (11).
11
10
KR230080
9
8
7
6
5
4
3
2
1
00 7 500
KR230090
9
