23.13

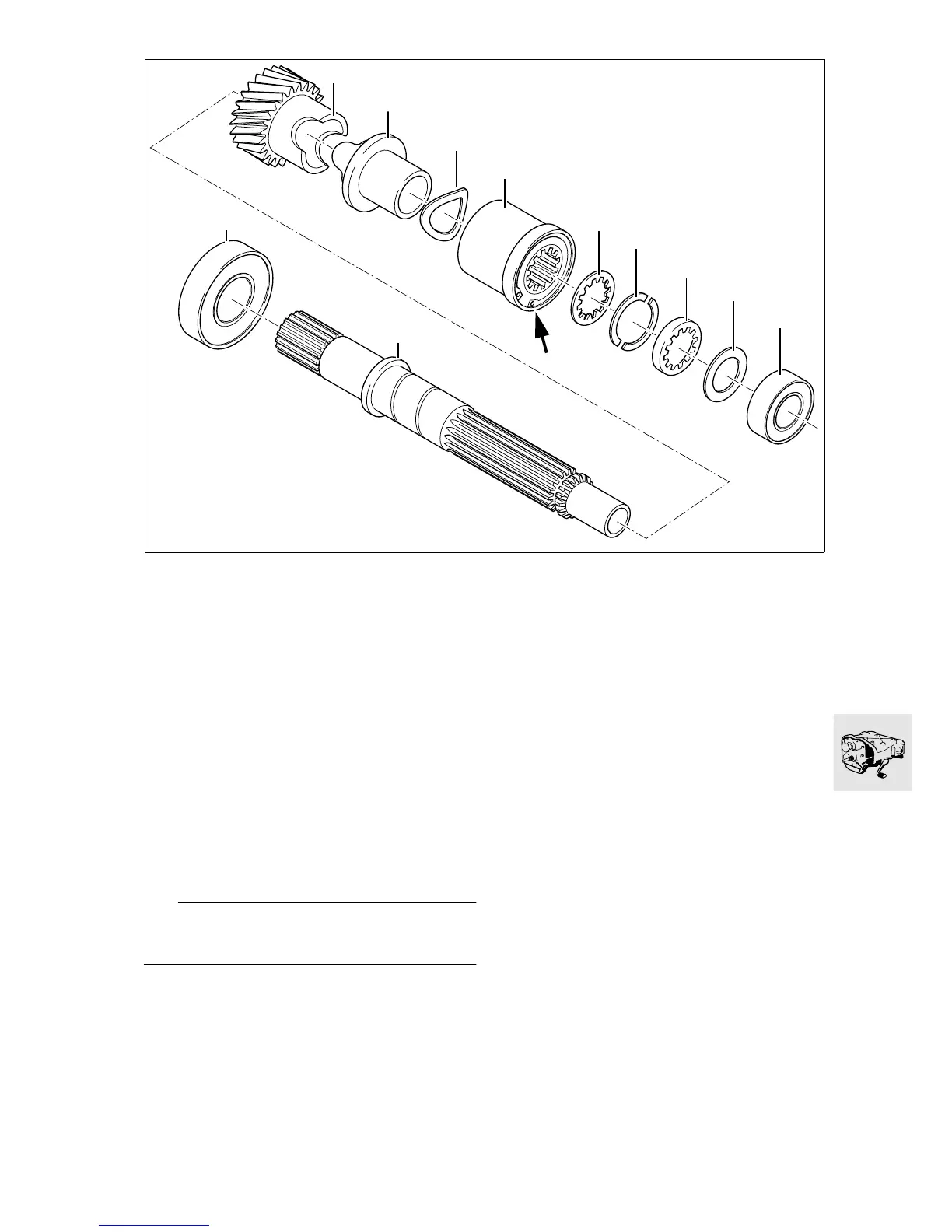

Assembling input shaft
•
Oil the bearing surface for constant-speed
gear (1) lightly on input shaft (10), and install the
constant-speed gear.
•
Oil the splines in thrust block (2) lightly and install
it.
•
Place anti-rattle disc (3) on thrust block (2).
•
Mount spring cluster (4) and circlip (arrow) facing
upwards on anti-rattle disc (3).
•
Install a support disc (5) of the same thickness as
the one previously removed.
•
Compress spring cluster (4) and insert the split
segment washer (6) in the ring groove.
•
Install guide ring (7) with shoulder facing over
segment disc (6).
•
Check fuly-compressed length and adjust if nec-
essary (
a 23.19).
•
Install spacing washer (8) of the determined
thickness, and press on deep-groove ball bear-
ing (9).
•
Check endplay of spring cluster (4).
L Note:
If endplay is greater than the tolerance limit, the
cause may be wear or incorrect assembly.
Endplay:
Spring
cluster on shaft ......0.4…0.6 mm (0.016…0.024 in)
11
10
KR230080
9
8
7
6
5
4
3
2
1
