11.33
Removing and installing alternator cover
with engine installed
e Caution:
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.
•
Detach the horn.
•
Remove the oil cooler line.
•
Separate the Hall-effect signal transmitter plug.
•
Remove the starter motor.
•
Remove rear leading link mount.

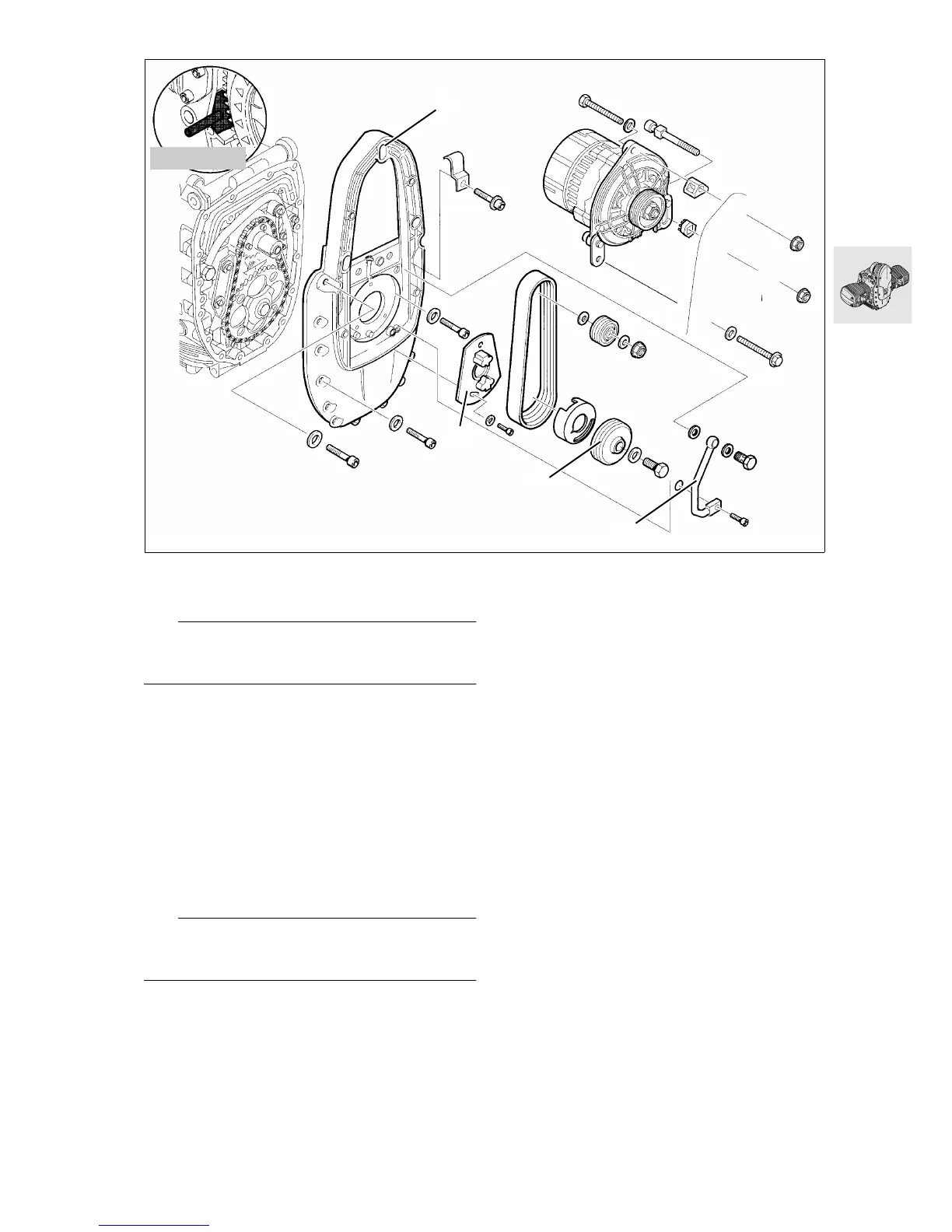

Removing alternator mount cover
•
Detach the alternator.
•
Remove rotary breather line (1).
•
Lock the clutch housing with special tool
BMW No. 11 5 640.
•
Remove pulley (2).
•
Remove magnetic gate (3).
L Note:
If complete alternator mount cover is removed,
leave magnetic gate (3) installed.
•
Remove alternator mount cover (4).
11 5 640
RS110230
4
3
1
2
