23.21
Shimming selector shaft
e Caution:
If the housing or the complete selector shaft is re-
newed, the selector shaft must be measured and
shimmed again.
•
Measure dimension “A” from shouldered bush-
ing to cover joint face.
•
Measure dimension “B” from shouldered bush-
ing to housing joint face.
•
Measure dimension “C” from the shoulder on the
selector shaft to the back of the sleeve.
•
Determine endplay as follows:
Dimensions “A” + “B” = “D”
Dimensions “D” - “C” = “E”
Dimensions “E” - thickness of spacing washer =
endplay.
Endplay:
Selector shaft ......... 0.1…0.3 mm (0.004…0.012 in)

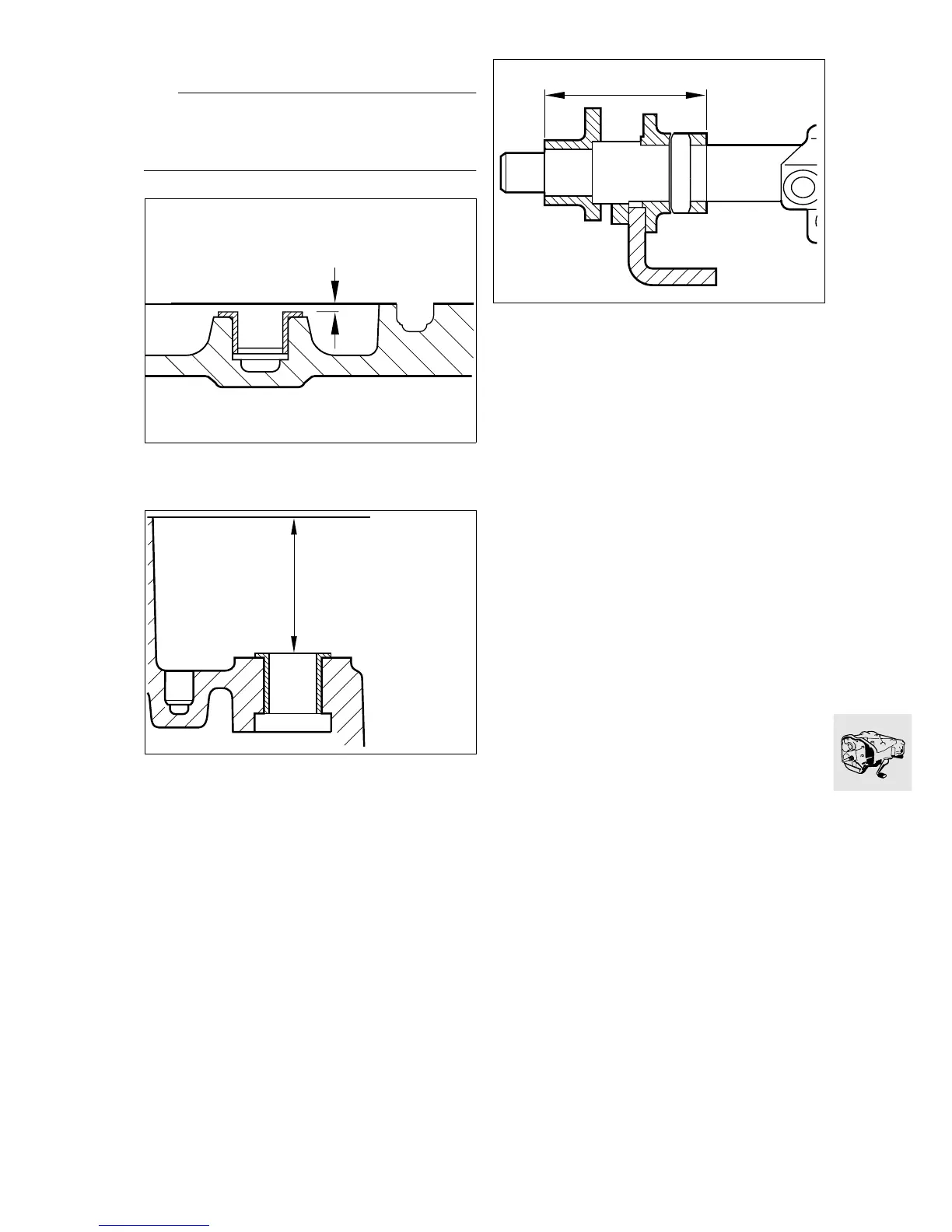

KR230200
A
KR230210
B
KR230220
C
