00.16
Checking battery acid level/topping
up if necessary, cleaning/greasing
battery posts
(Inspections III and IV)
•
Release the rubber strap holding the battery.
•
Raise the battery and check its acid level.
•
Top up battery acid level with distilled water as
far as the MAX mark.
Protective
battery-post grease: ...............e.g. Bosch Ft 40 V1

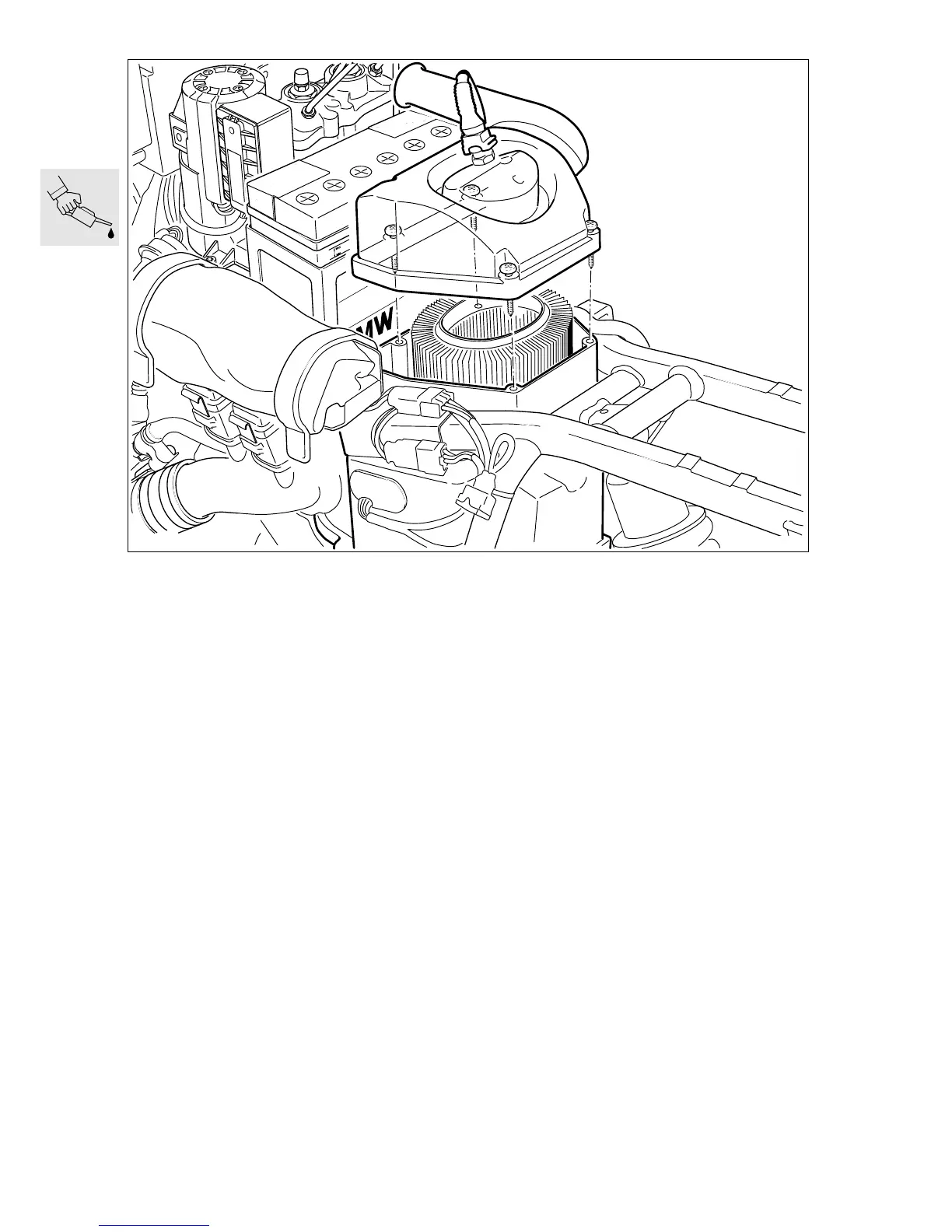

Renewing intake air cleaner
element
(Inspection III)
In very dirty and dusty operating conditions,
renew every 10 000 km (6 000 miles) or even
more frequently if necessary
•
Detach and raise the upper part of the air cleaner
housing.
•
Renew air cleaner element.
•
Install the fuel tank.
•
Note correct path of vent lines.
•
Install the left/right trim panels.
X Tightening torque:
Fuel tank to rear frame ................................. 10 Nm
C000020
