23.15

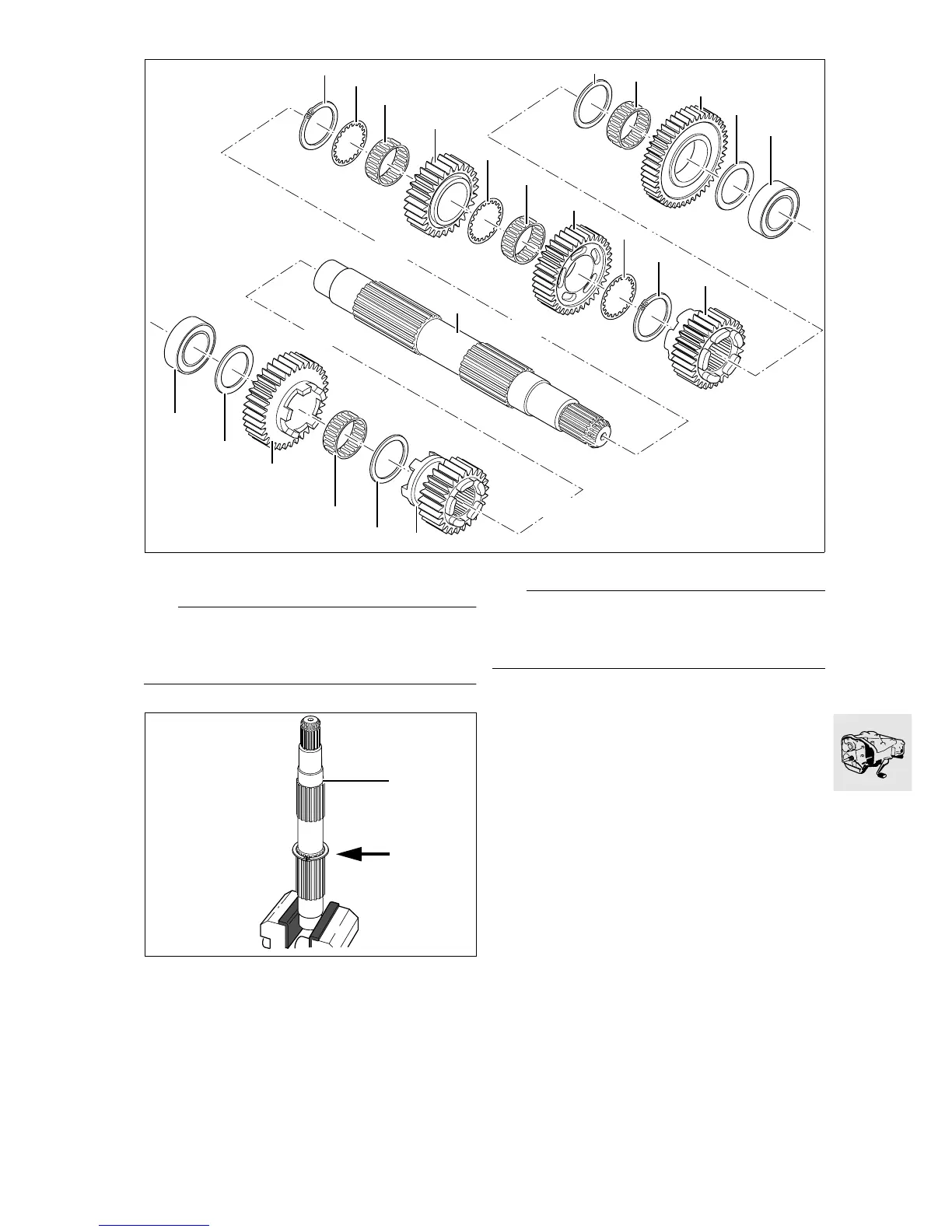

Assembling output shaft
L Note:
Assembly starts at the shift gearwheel for 4th gear.
Before assembly, oil all running surfaces lightly with
gear oil.
•
Clamp the output shaft into the vise with soft
jaws and with the splines facing upwards.
•
Install circlip (16/arrow).
•
Install thrust washer (15).
•
Install needle roller bearing (14).
e Caution:
To avoid damaging the needle roller bearing at the
splines, spread it carefully at the butt joint before in-
stalling.
•
Install shift wheel for 4th gear (13) with the pock-
ets facing circlip (16).
•
Install support washer (12) and needle roller (11).
•
Install shift wheel for 3rd gear (10) with pockets
facing away from the 4th gear shift wheel (13).
•
Install support washer (9) and circlip (8).
•
After installing the 3rd and 4th shift gearwheels,
measure endplay (
a 23.16).
•
Install sliding gear (7) with the recess for the se-
lector fork facing the shift gearwheel for 3rd gear
(10).
•
Install support washer (18) and needle roller
bearing (19).
•
Install the shift gearwheel for 1st gear (20) with
the pockets facing sliding gearwheel (7).
•
Install spacing washer (21) and deep-groove ball
bearing (22).
•
After installing, check endplay at the shift gear-
wheel for 1st gear (
a 23.16).
KR230120
21
20
19
18
16
15
14
13
12
11
10
9
8
7
6
1
2
3
4
5
17
22
5th gear
2nd gear
4th gear
3rd gear
1st gear
KR230130
16
6
