11.54

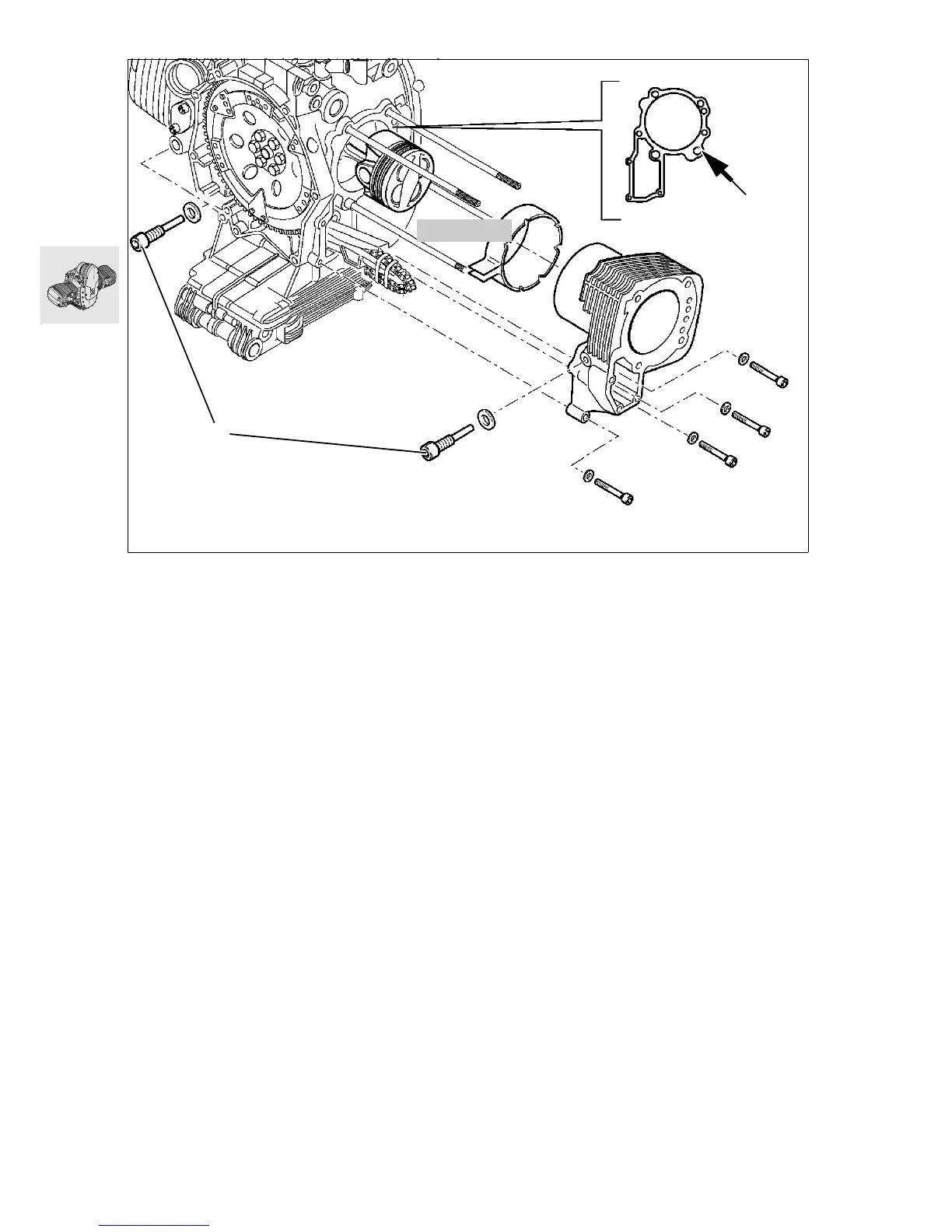

Installing cylinder
•
Apply 3-Bond 1209 to the cylinder base sealing
face (arrow), which must be clean and free from
grease.
•
Oil the cylinder wall.
•
Compress the piston rings with a clamping strap,
BMWNo.112900.
•
Install the cylinder and at the same time pass the
timing chain and the tensioning and guide rail
through the timing case cavity.
•
Tighten cylinder down firmly.
•
Fit new seal to pivot pin for chain guide rail (1).
•
Install chain sprocket.
X Tightening torque/tightening order:
1. M 8 screw ................................................ 20 Nm
2. M 6 screw .................................................. 9 Nm
3. Pivot screw for chain guide rail.................... 18 Nm
11 2 900
RS110420
1
u
