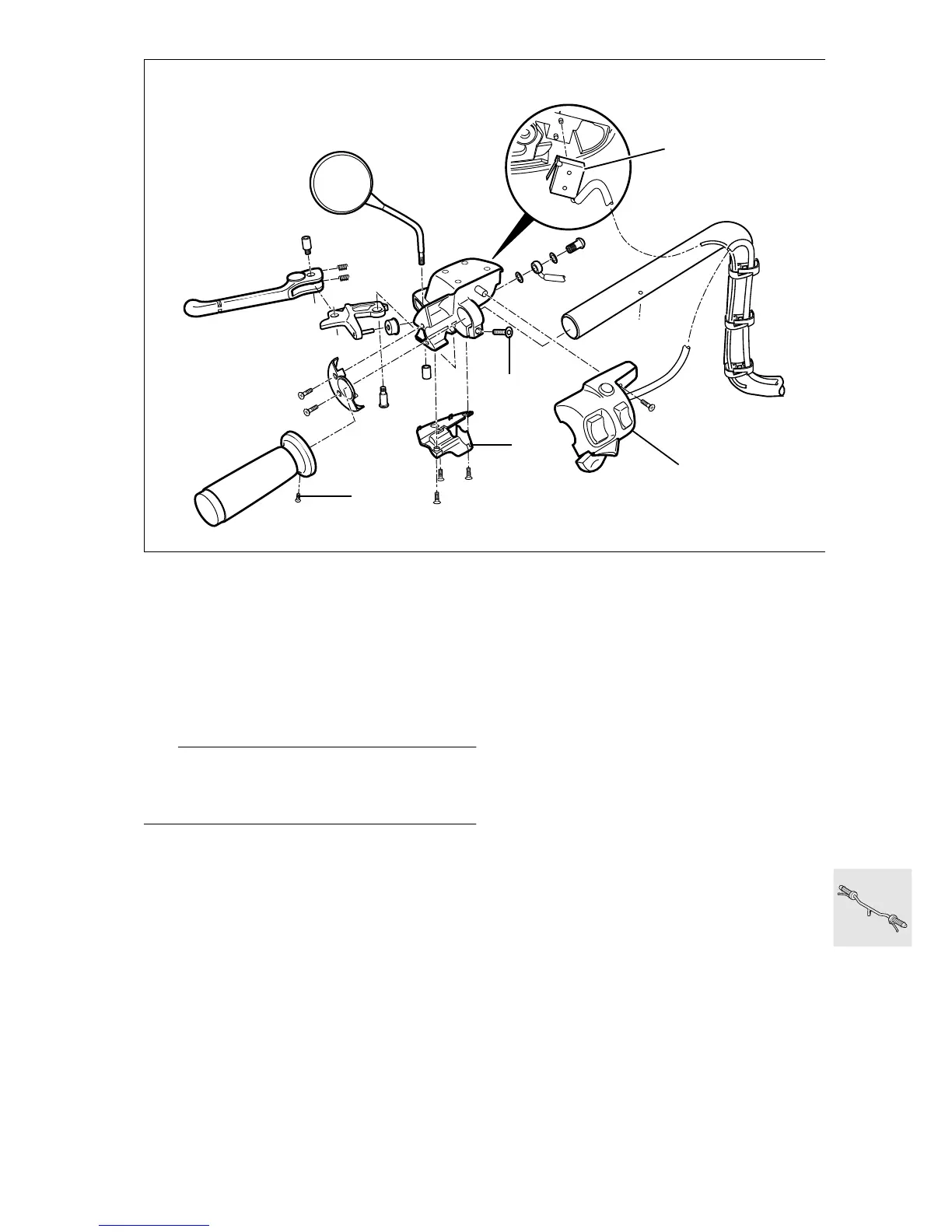

32.5
Removing and installing left
handlebar fitting
•
Detach mirror.
•
Loosen screw (1) for handlebar grip and pull off
the grip.
•
Detach lower section (2) at handlebar fitting.
•
Pull off clutch switch (3).
•
Detach combined switch (4).
•
Drain the clutch operating system.
e Caution:
Do not allow brake fluid to come into contact with
painted parts of the motorcycle, because brake fluid
destroys paint.
•
Detach the clutch line.
•
Loosen the retaining screw (5) for the clutch fit-
ting and pull the fitting off.
•
Unscrew fuel tank and pull to the rear.
•
Take off the central electrical equipment box
cover.
•
Pull off the combined switch plug.
•
Pull off the clutch switch plug.
•
Install by following the above work instructions in
the reverse order.
•
Align the clamp joint line with the punch mark on
the handlebar.
•
Fill/bleed the clutch operating system.
X Tightening torque:
Clutch lever fitting to handlebar...................... 8 Nm
Clutch line to clutch lever fitting ................... 18 Nm
1
C320020
2
5
4
3
