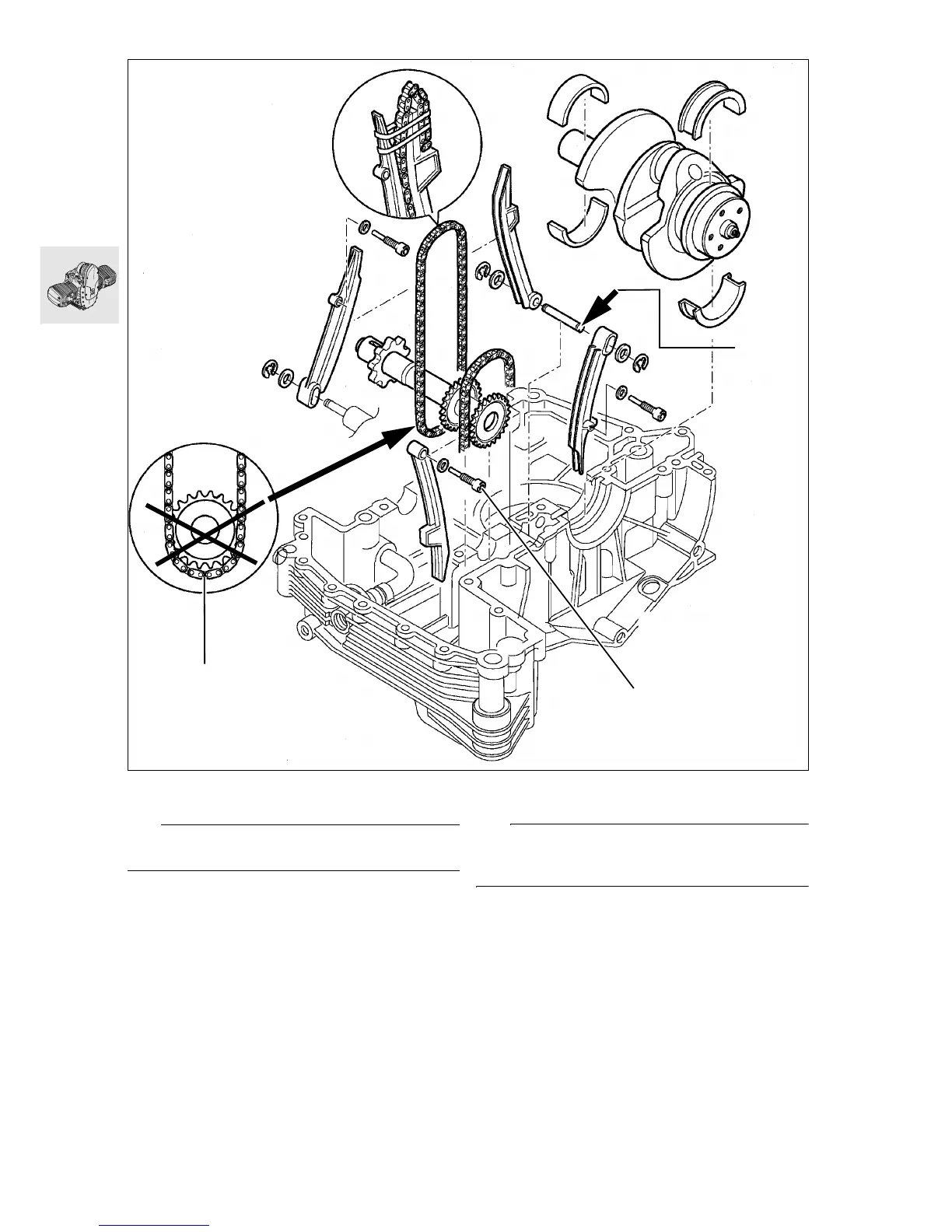

Installing crankshaft
e Caution:
Oil the bearings.
Installing timing chain tensioning and
slide rails
•
Seal pivot pin for tensioning rail/slide rail at
clutch side (arrow) with 3-Bond 1209.
Insert pivot screw (1) into chain tensioner rail, using
a new seal.
X Tightening torque:
Chain guide rail pivot pin.............................. 18 Nm
Installing auxiliary shaft/timing chains
e Caution:
Timing chains (2) must mesh fully with auxiliary shaft
sprockets.
RS110291
u
2
1
To Next Page
