11 - 2
WALK-UP PHOTOCAPTURE CENTER
™
Getting started

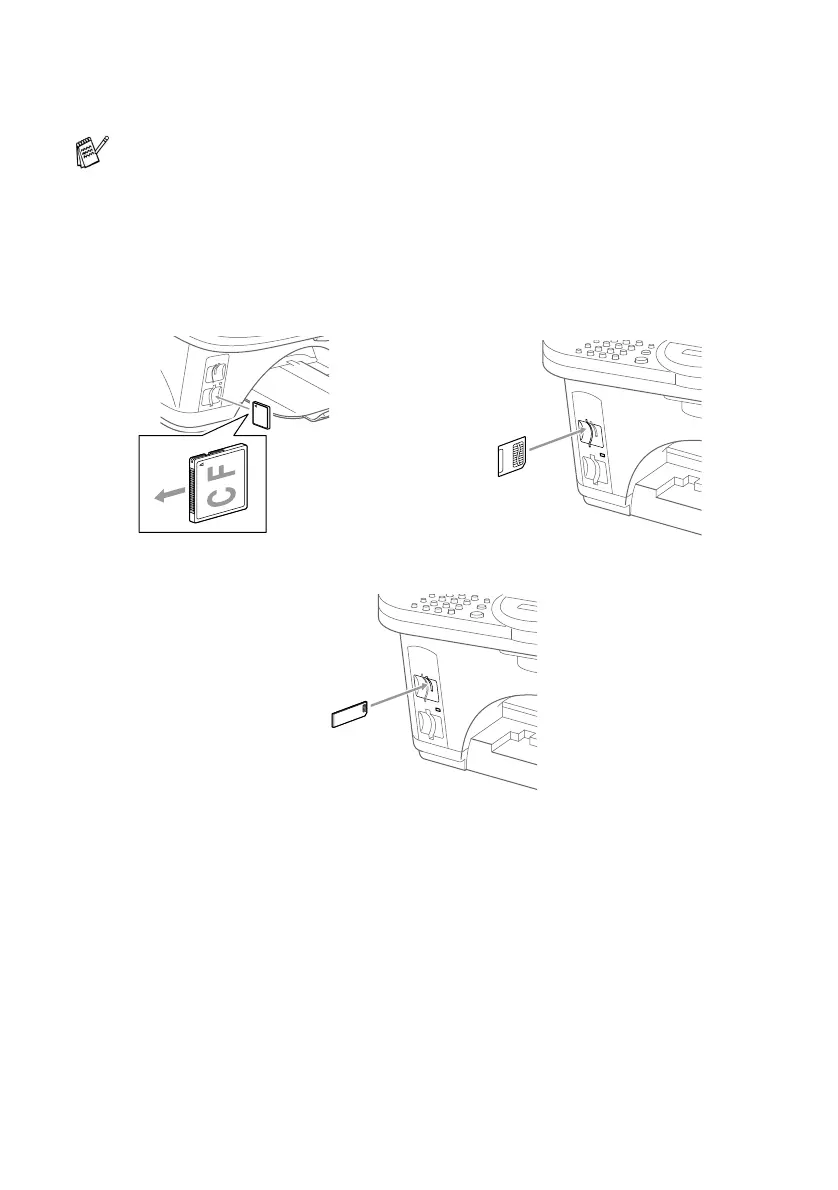

The top left slot
is for a SmartMedia
™
Card, the top right slot is for a
Memory Stick
™
and the bottom is for a CompactFlash
™
Card.
Firmly insert the card into the appropr
iate slot.
There are separate slots on your machine, for a Compa
ctFlash
™
card, a SmartMedia
™
card and a Memory Stick
™
.
Use only media cards with 3.3 voltage in your machine.
CompactFlash
™
SmartMedia
™
Memory Stick
™
