4-3-6 Mechanical Functions Checks
4-3-6-1 Kickstand mechanical Checks
1.) Lay the system on a stable flat surface covered with a soft material (such as foam or thick cloth) to
prevent scratches to the display.
2.) Pull upwards the kickstand, ensuring that the kickstand doesn’t move freely

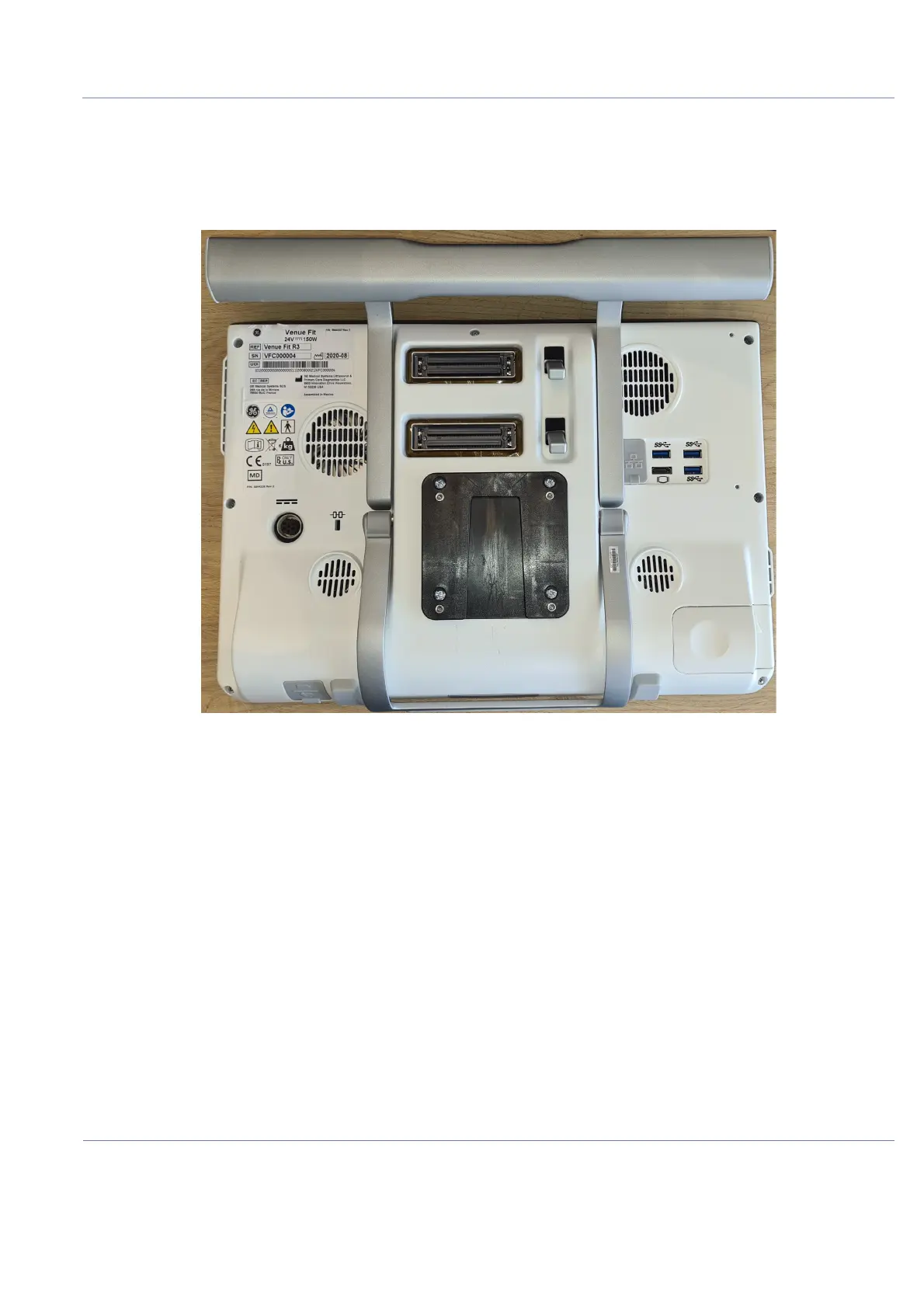

Figure 4-57 Kickstand
3.) Carefully position the system, leaning on the kickstand.
4.) Verify that the system and the kickstand are stable and do not “slip”.
