DIRECTION 5854713-100, REVISION 2 VENUE FIT™ SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-9
PRELIMINARY
8-2-5 Speakers Replacement Procedure
8-2-5-1 Tools
Phillips screwdrivers of appropriate size
8-2-5-2 Time Required
5 min
8-2-5-3 Preparations
1.) Shut down the Venue Fit™ ultrasound unit, as described in Power Shutdown .
2.) Prepare stable flat surface covered with a soft material (such as foam or thick cloth) to prevent
scratches to the display.
3.) Dismount Venue Fit™ system from cart as described in Mounting / Dismounting System on Cart
and place it on a previously prepared surface with the display facing down.
8-2-5-4 Speakers Removal Procedure
1) Remove back cover.
2) Disconnect the speakers connector from the M-BEB.
3.) Remove the 2 grounding screws marked with red and green circles (the screw marked in red is
longer) and release the 2 supporting screws (marked with blue circles)

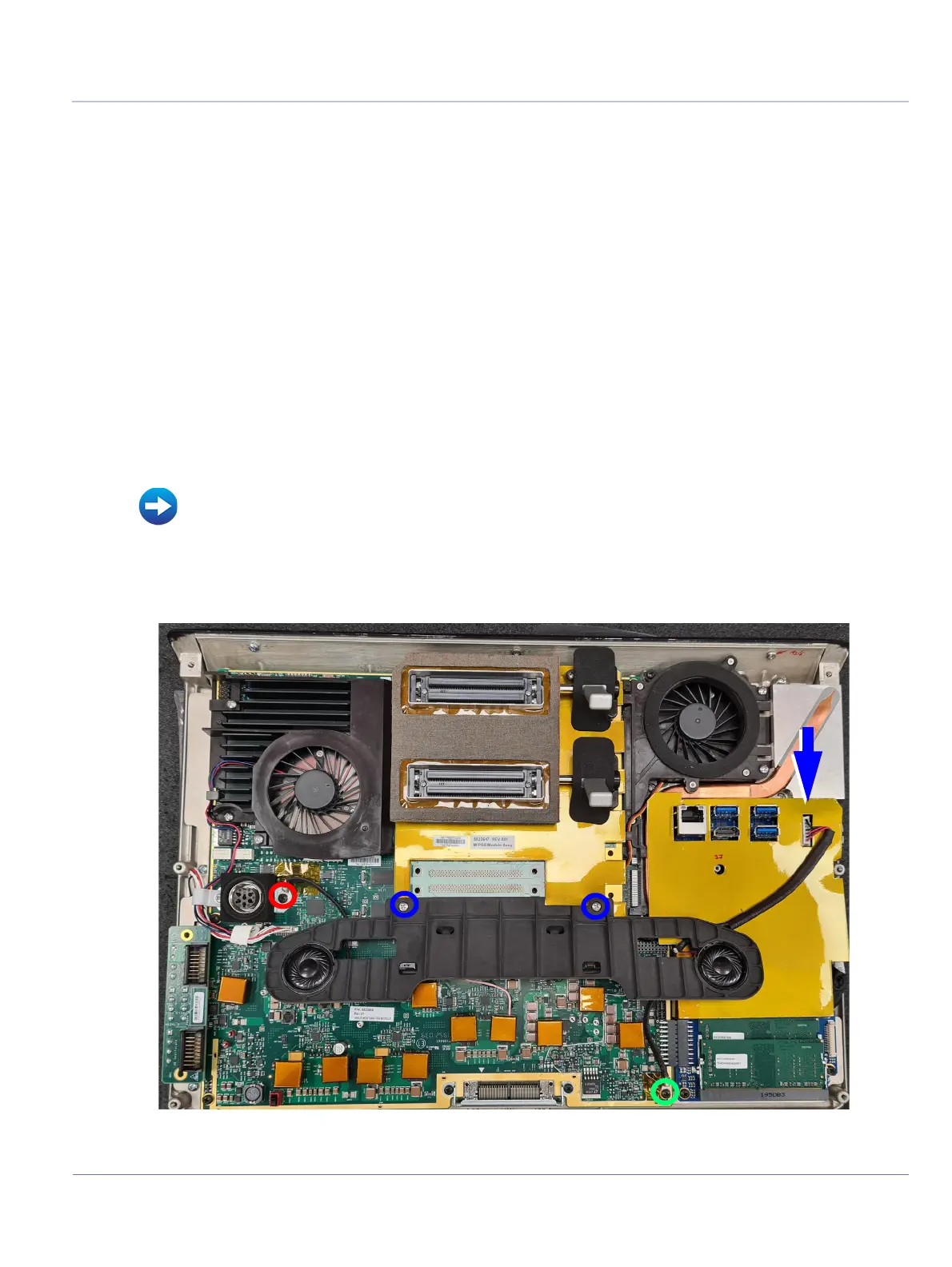

Figure 8-38 Speakers removal
• Rear Cover Removal Procedure
To Next Page
