DIRECTION 5854713-100, REVISION 2
VENUE FIT™ SERVICE MANUAL
Chapter 5 - Components and Function (Theory) 5-7
PRELIMINARY
Section 5-4
Venue Fit™ Back End (M-BEB)
5-4-1 Back End
The Back End consist of single board called M-BEB, and is responsible for the following scanner
functions:
• Operation of scanner computer based on AMD Ryzen APU processor that operates the Venue
Fit™scanner application under Windows 10 Embedded operating system.
• Generation from the +12v and +5v Standby DC supplies, of all the required Back End and Display
supply voltages.
• Support of the external and internal interfaces.
• Storage of Operating System and application on internal SSD.
• Network connectivity (LAN).
• Connection to peripherals.
5-4-1-1 Back End Interfaces
The External Interfaces from the Back End are located at the rear side of the system:
• 1 x HDMI Connector - supported resolution: 1920 x 1080 pixels (WSXGA)
• 1 x LAN Connector
• 3 x USB 3.0 Connectors
• 1 x USB 3.0 Connector
5-4-1-2 Solid State Hard Drive
Venue Fit™ system contains an internal SSD. The SSD, which is controlled by the CPU, is partitioned
into four logical drives, each of which is designated for different operations.

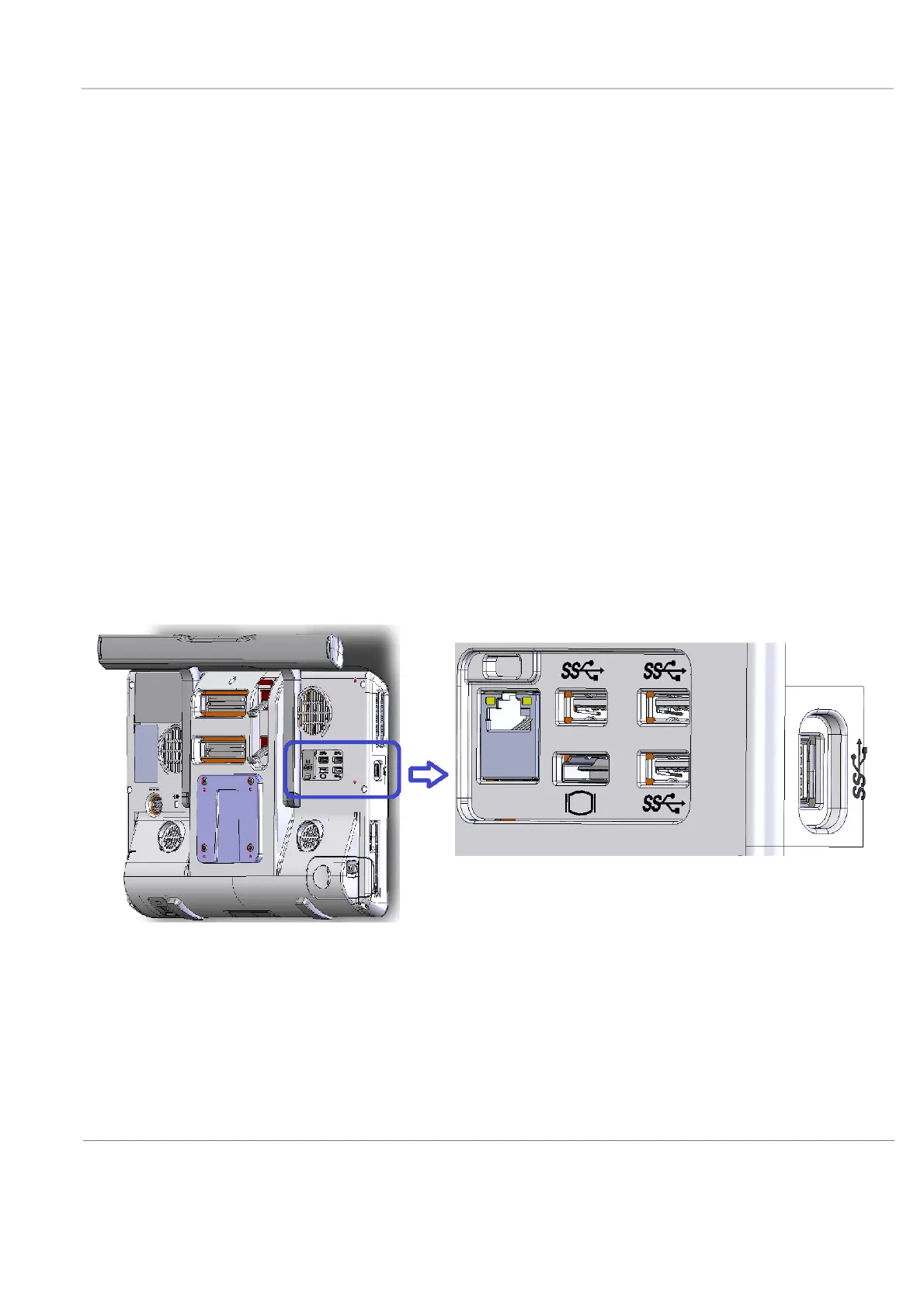

Figure 5-1 M-BEB interfaces
