DIRECTION 5854713-100, REVISION 2
VENUE FIT™ SERVICE MANUAL
5-12 Chapter 5 - Components and Function (Theory)
PRELIMINARY
Section 5-7
External Input/Output
The Venue Fit™ ultrasound scanner has a connection panel (located at the rear of the system) that can
host the connections illustrated below.
1 Ethernet LAN connector — 1000 Base-TX Ethernet IEEE 802.3 (1.5kV insulation)
2 USB 3.0 connector x3 (not insulated)
3 HDMI connector (not insulated). Supports HDMI 1.4a standard.
NOTE: Non insulated I/O can be populated either by certified medical devices or a self powered device
(powered by the system, not by external AC). All other devices should be connected to the system by
means of additional insulation.

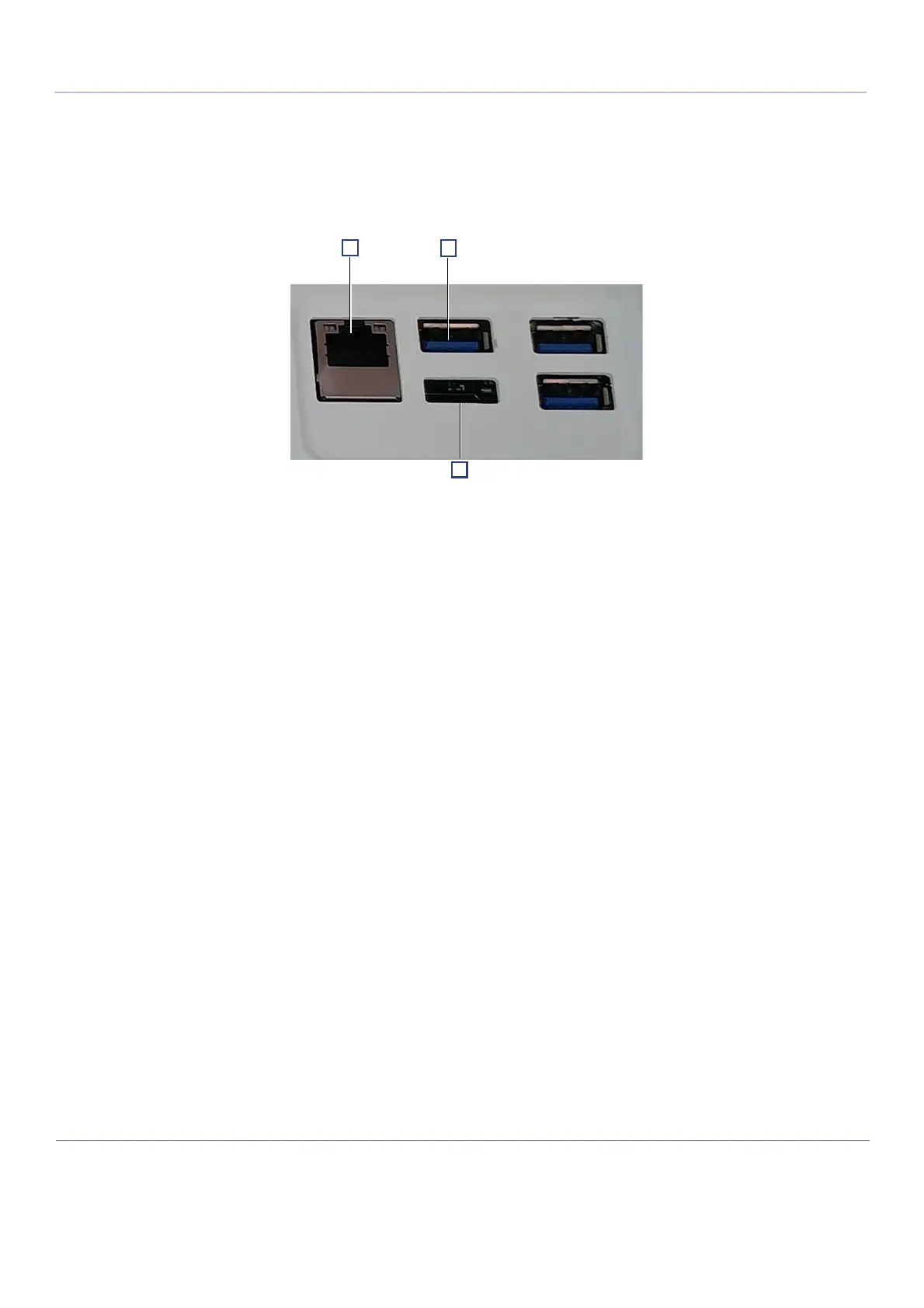

Figure 5-2 View of the Venue Fit™ Peripheral/Accessory Interface Panel
