DIRECTION 5854713-100, REVISION 2 VENUE FIT™ SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-25
PRELIMINARY
8-2-11 Mounting / Dismounting System on Cart
8-2-11-1 Tools
Phillips screwdriver of appropriate size (in case the captive screws are tightened hardly)
8-2-11-2 Time Required
2 min
8-2-11-3 Preparations
1.) Shut down the Venue Fit™ ultrasound unit, as described in Power Shutdown .
8-2-11-4
Dismounting System on Cart
2.) Lock the cart casters.
3.) Disconnect system cables: probes, barcode, network, HDMI and power.
4.) Tilt the system to its vertical position.

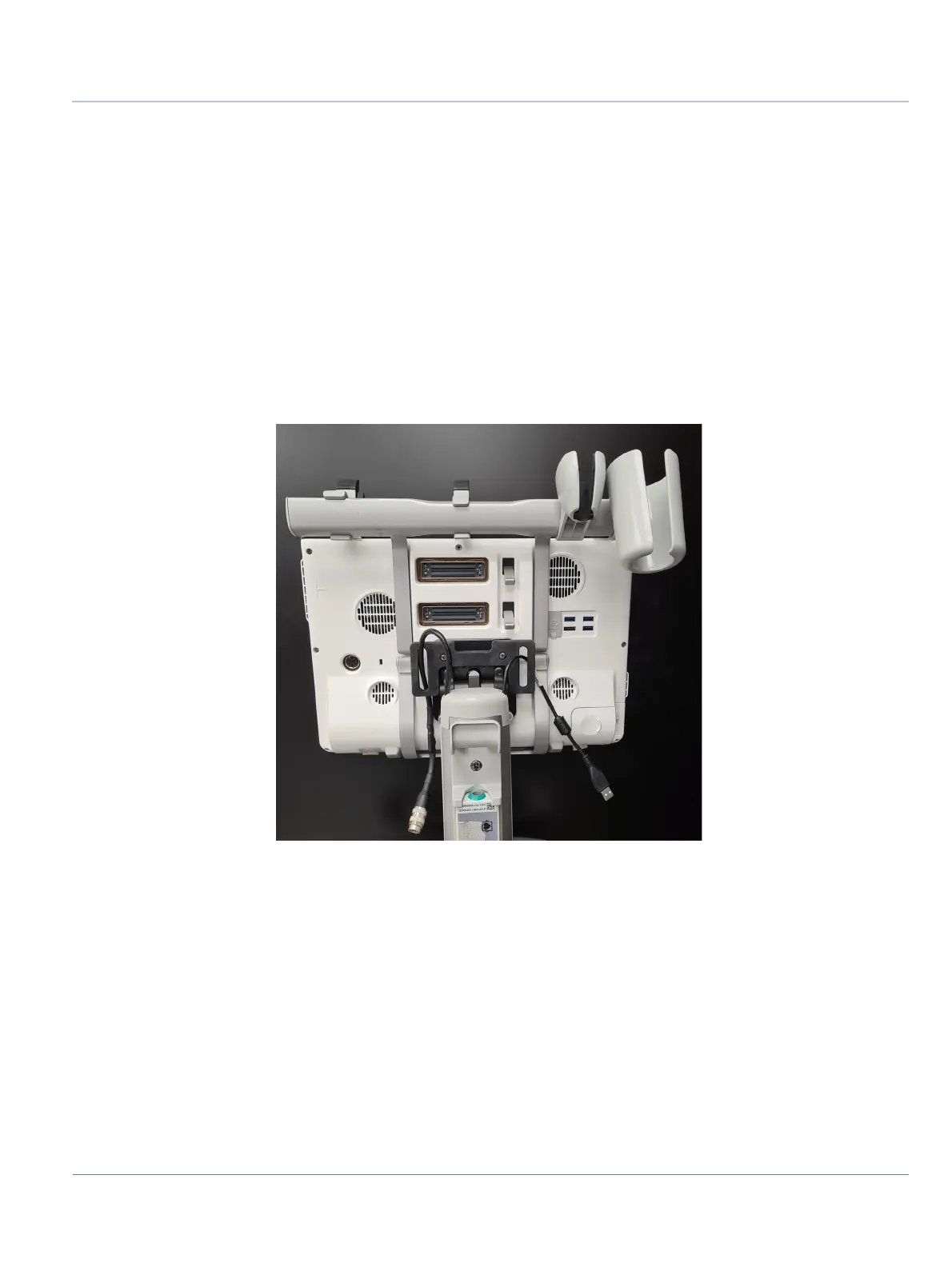

Figure 8-50 Disconnecting Cables from System
