DIRECTION 5854713-100, REVISION 2 VENUE FIT™ SERVICE MANUAL
8-28 Chapter 8 - Replacement Procedures
PRELIMINARY
8-2-12 Casters Replacement Procedure.
8-2-12-1 Tools
Allen key 6 mm
Phillips screwdriver of appropriate size
8-2-12-2 Time Required
5 min
8-2-12-3 Preparations
1.) Shut down the Venue Fit™ ultrasound unit, as described in Power Shutdown .
2.) Lower the cart to its lowest position.
3.) Dismount Venue Fit™ system from cart.
8-2-12-4 Casters Removal Procedure
4.) Using a flat screw driver, carefully remove the screw cap.
5.) Using Allen key 6mm, remove the holding screw and detach the caster.
8-2-12-5 Casters Installation Procedure
1.) Install new caster and secure the holding screw.
2.) Place screw cap back into its place.
3.) Mount Venue Fit™ system on cart.

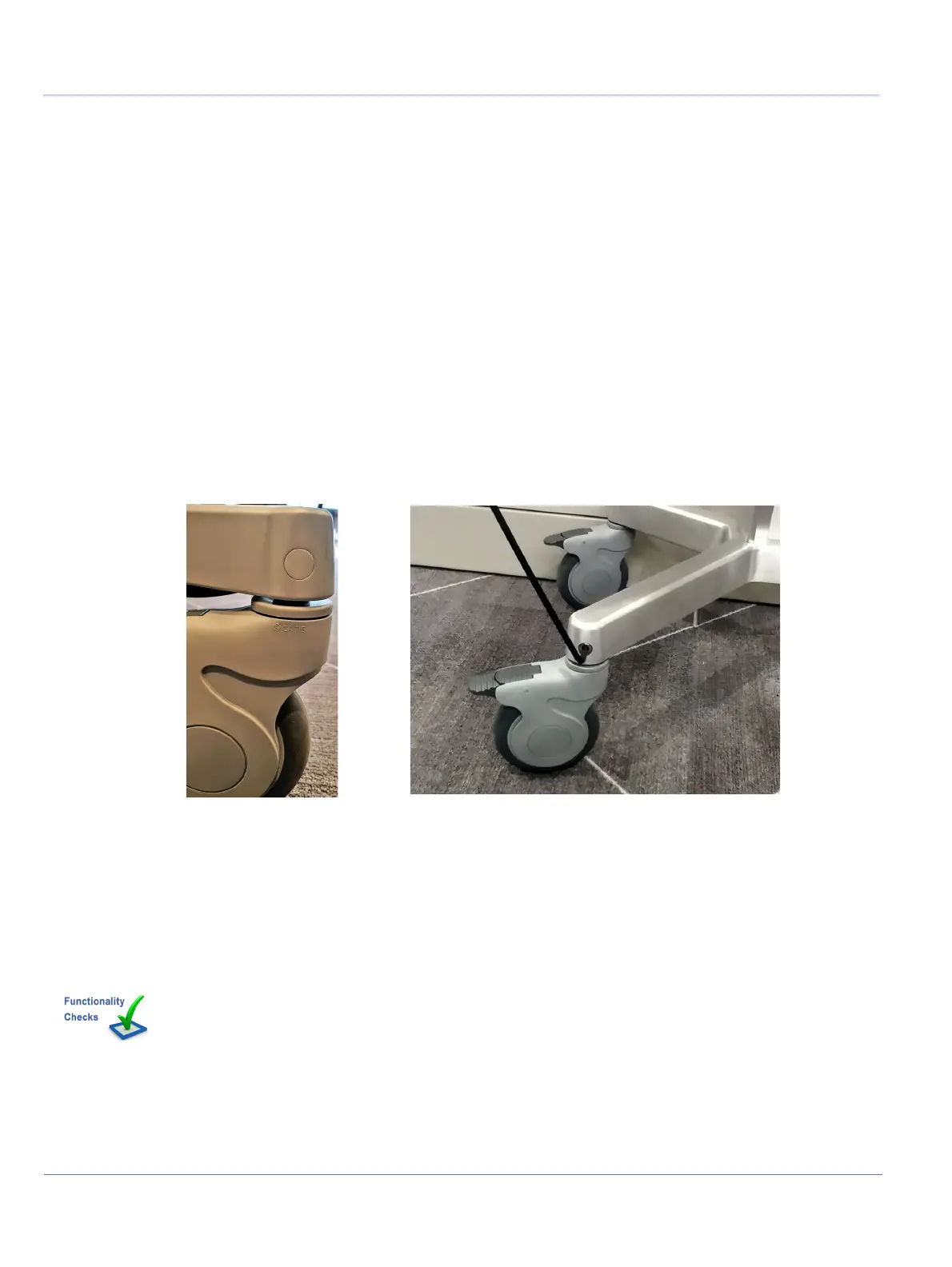

Figure 8-53 Removing Cater Cap and Holding Screw
Perform the checks listed in Tab l e 8-3 6 - Cart Parts section
To Next Page
