8-34 Chapter 8 - Replacement Procedures
PRELIMINARY
8-2-15 ECG USB Cable Replacement Procedure
8-2-15-1 Tools
N/A
8-2-15-2 Time Required
3 min
8-2-15-3 Preparations
1.) Lock all cart casters.
8-2-15-4
ECG USB Cable Removal Procedure
2.) Disconnect the USB ECG cable from the system and remove the USB cable from the Tilt cable
holder.
3.) Disconnect the USB cable from the ECG module.
4.) Slide the cart cable guide upwards to release the ECG USB cable.
8-2-15-5
ECG USB Cable Installation Procedure
1) Connect the ECG USB to the ECG module.
2.) Route the USB to the side of the cart pole and secure with the cart cable guide.
3.) Route the USB cable through the tilt cable holder and connect it to the system.

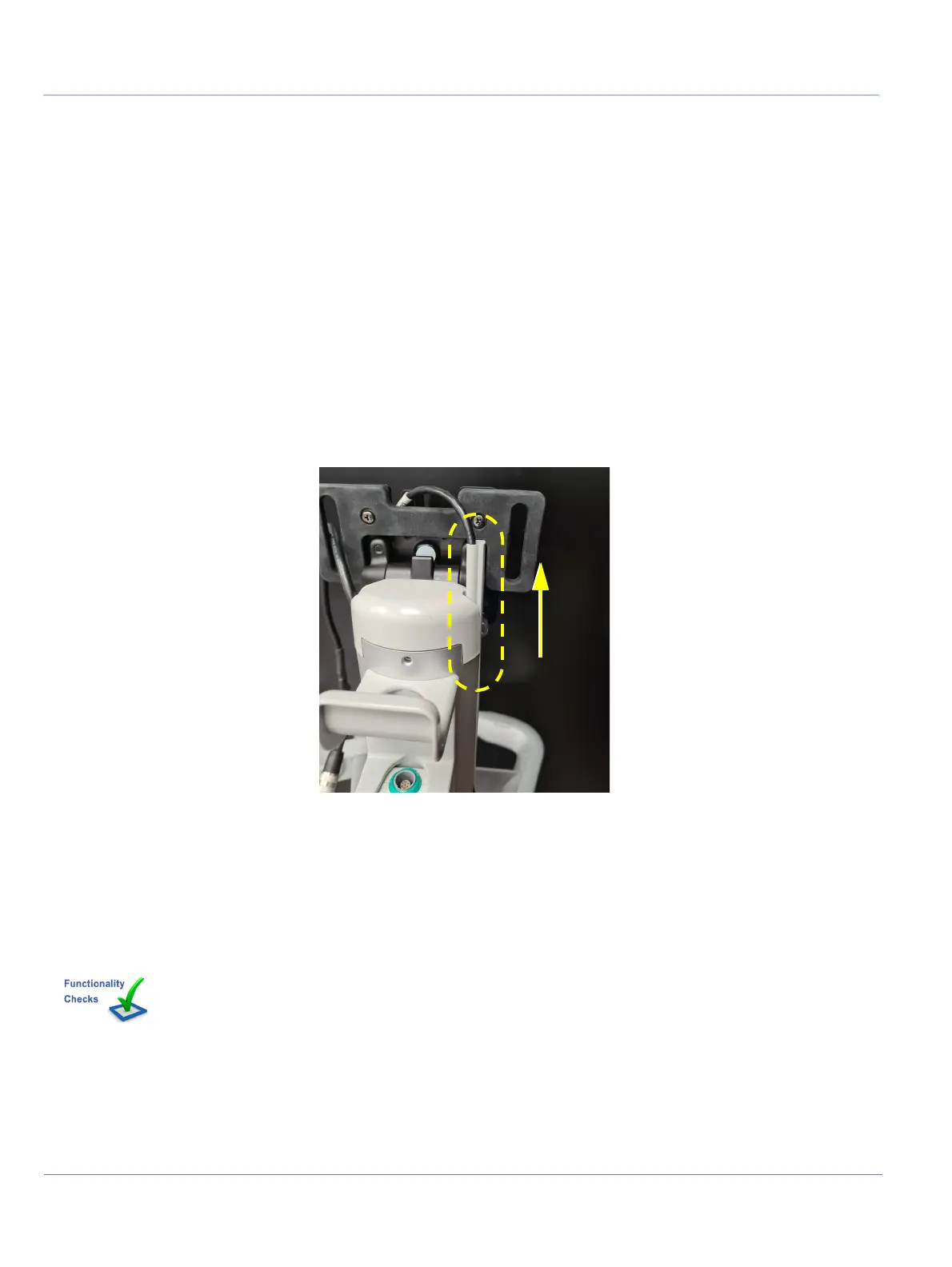

Figure 8-58 Removal of Cart cable guide
Perform the checks listed in Tab l e 8-3 6 - Cart Cables section
