DIRECTION 5854713-100, REVISION 2
VENUE FIT™ SERVICE MANUAL
5-2 Chapter 5 - Components and Function (Theory)
PRELIMINARY
Section 5-2
General Information
5-2-1 Introduction
The Venue Fit™ system is a compact portable ultrasound scanner that can be used with both phased
array and linear array ultrasound probes.
Weighing less than 6 kg (13.2 lb), the Venue Fit™ ultrasound scanner is extremely versatile and -
depending upon the installed software - can be used for various imaging modes. These include:
• 2D Gray Scale and 2D Color Flow imaging
• M-Mode Gray Scale imaging
• Color M-Mode
• Doppler
• Different combinations of the above modes.

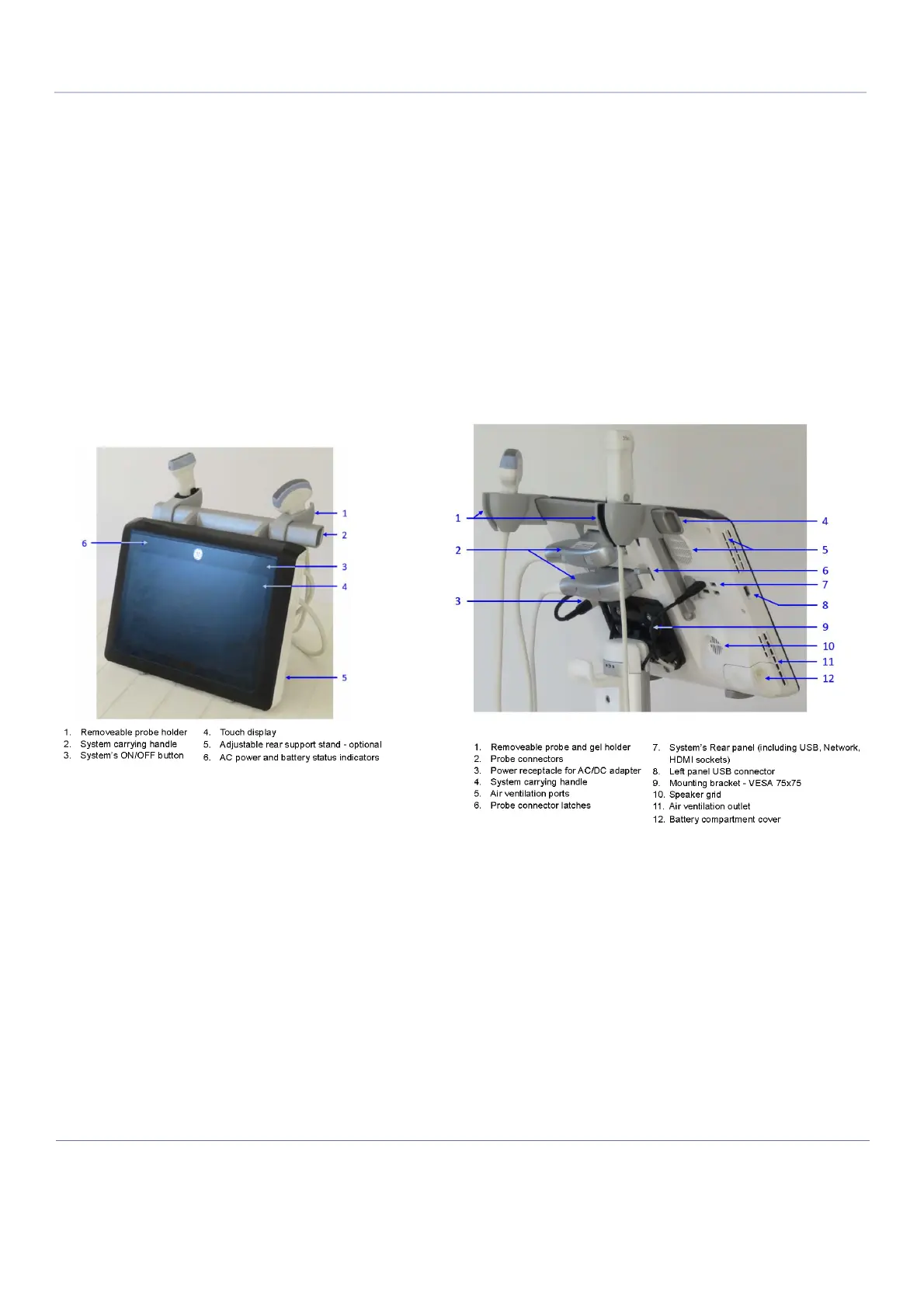

Figure 5-1 Venue Fit™ System - General View
5-2-2 Venue Fit™ Mechanical Design
Venue Fit™ scanner was designed to be mounted on a cart or used as a stand alone system with
optional rear stand. If purchased, the rear stand allows the system to be placed on a flat horizontal
surface to allow tilting the system up to 48 deg.
The system's angle when mounted on the cart is adjustable between 0-40 deg.
The system is mounted on the cart by a bracket supporting easy release mechanism (held by 2 captive
thumb screws).
The Cart enables the user to tilt of the scanner by holding the system by its sides.
The height of the Cart can be easily adjusted by stepping on the foot pedal located on the cart base.
