DIRECTION 5854713-100,
REVISION 2
VENUE FIT™ SERVICE
MANUAL
9-4
Section 9-4 - R
enewal Parts Li
sts and Diagrams
PRELIMINARY
Section 9-4
Renewal Parts Lists and Diagrams
9-4-1
Mechanical Hardware Parts
9-4-2
Covers
T

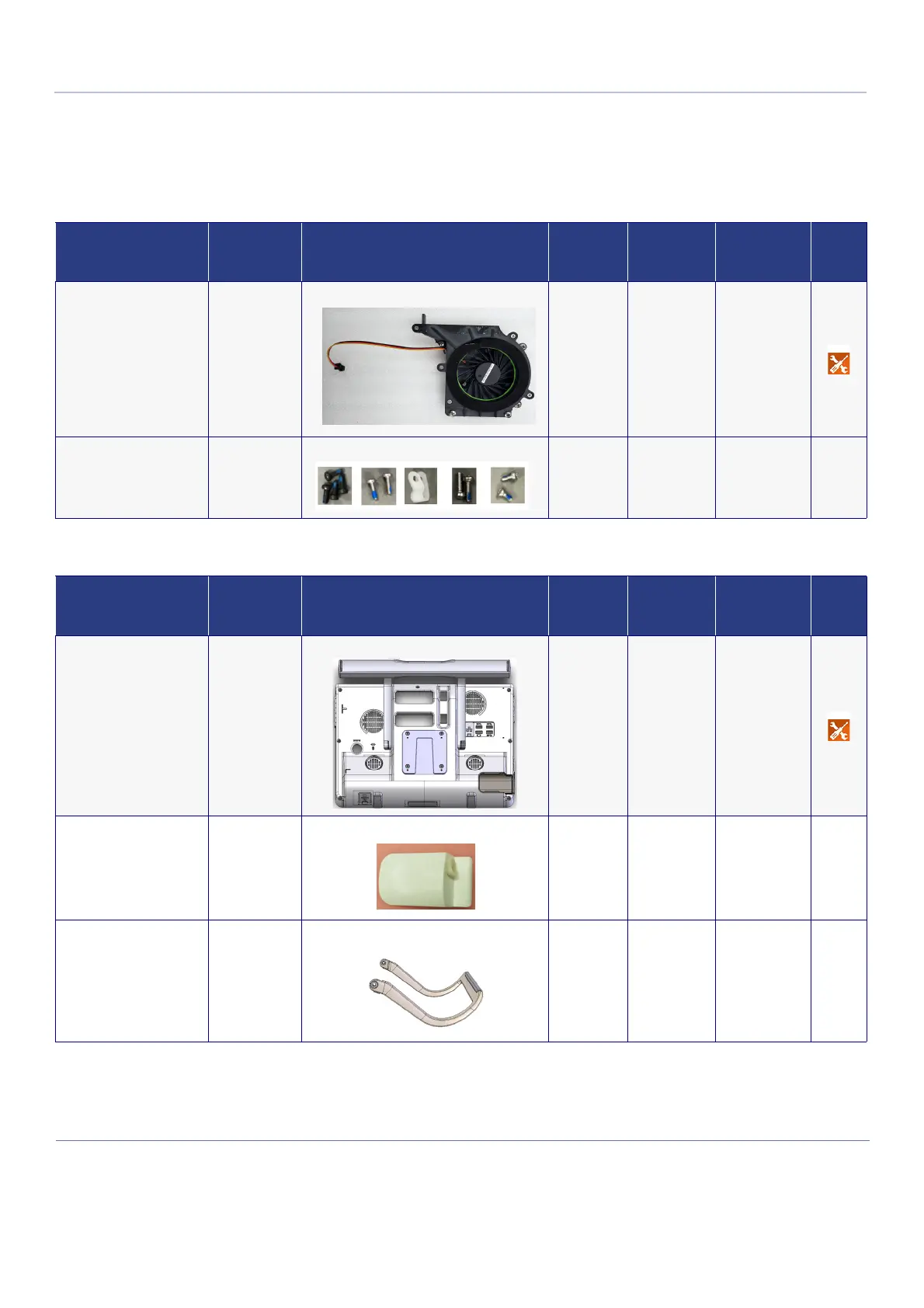

able 9-37 Mechanical Hardware Parts
Part Name
Part
Number
Can
Replace
Part #
Can Be
Replaced
by Part #
Not
Compatible
With
Repl
Proc
Fan FRU - Venue
Portable
S5789349
Screw Kit - FRU - Venue
Fit
S5849944
Part Name
Part
Number
Can
Replace
Part #
Can Be
Replaced
by Part #
Not
Compatible
With
Repl
Proc
Rear Cover Assy –
FRU
- Venue Fit
S5825564
Battery Cover assy –
CRU - Venue Fit
S5825567
kickstand Assy - FRU
- Venue Fit
S5845282
RP
RP
270
272
