DIRECTION 5854713-100, REVISION 2
VENUE FIT™ SERVICE MANUAL
Chapter 9 - Renewa
l Parts
9-7
PRELIMINARY
9-4-4

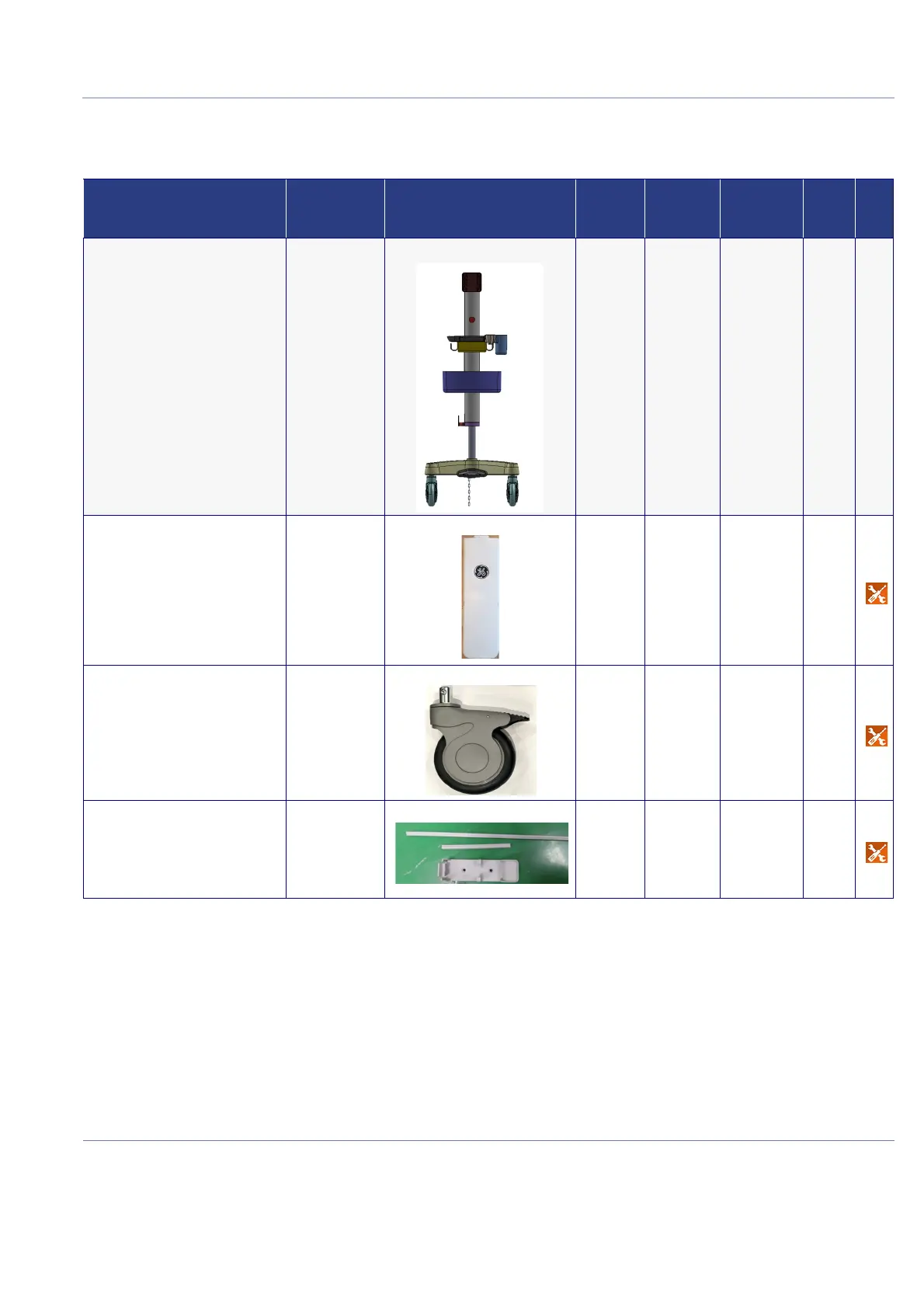

Cart Parts
T
able 9-39
Cart Parts
Part Name
Part Number
Can
Replace
Part #
Can Be
Replaced
by Part #
Not
Compatible
With
Repl
Proc
CRU
Cart assy - CRU - Venue Fit
S5843873
Cart AC_DC Cover - CRU - Venu
e
Fit
S5850154
Cart Caster - Venue Fit
S5850153
CART cable guides and ECG
Bracket - CRU - Venue Fit
S5850156
RP
RP
RP
273
275
