DIRECTION 5854713-100, REVISION 2 VENUE FIT™ SERVICE MANUAL
8-4 Chapter 8 - Replacement Procedures
PRELIMINARY
8-2-2-4 Battery Removal Procedure
1) Slide down the battery locking latch. While holding the latch down, using your thumb slide the cover
to the right.
2) Remove the battery by sliding it to the right.

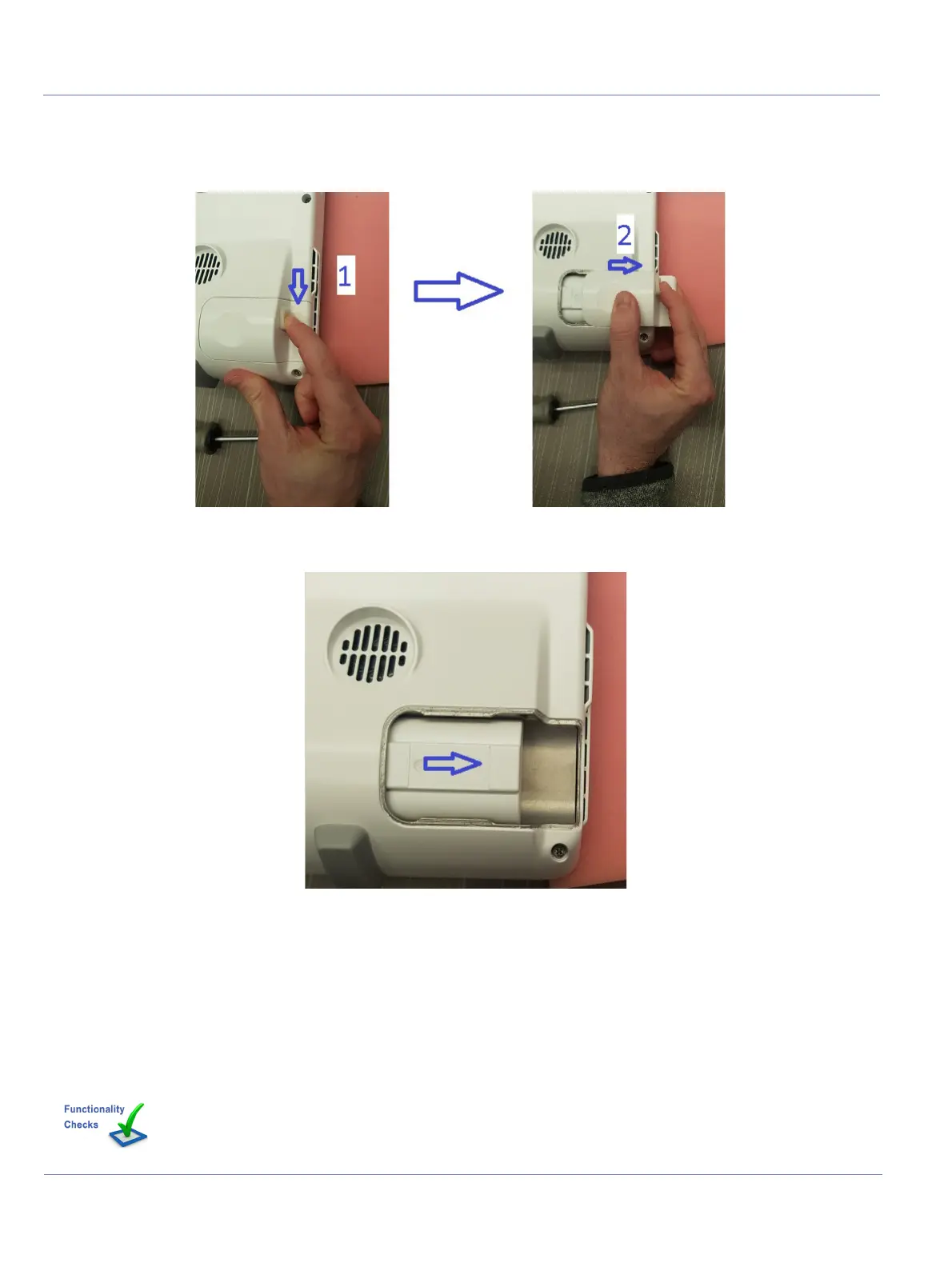

Figure 8-32 Battery removal
8-2-2-5 Battery Installation Procedure
1.) Slide in the battery into the system.
2.) Slide back the battery cover.
3.) Switch On the battery power switch.
4.) Close the battery power switch silicon cover.
Figure 8-31 Battery cover removal
Perform the checks listed in Tab l e 8-3 6 - System Parts section
To Next Page
