GE Versana Balance User Manual

Care and Maintenance
10-24 System view Versana Balance – Basic Service Manual
5808768-100 English Rev.9
10-7-3 Outlet test - wiring arrangement
Test all outlets in the area for proper grounding and wiring
arrangement by plugging in the neon outlet tester and noting the
combination of lights that are illuminated. Any problems found
should be reported to the hospital immediately and the
receptacle should not be used.

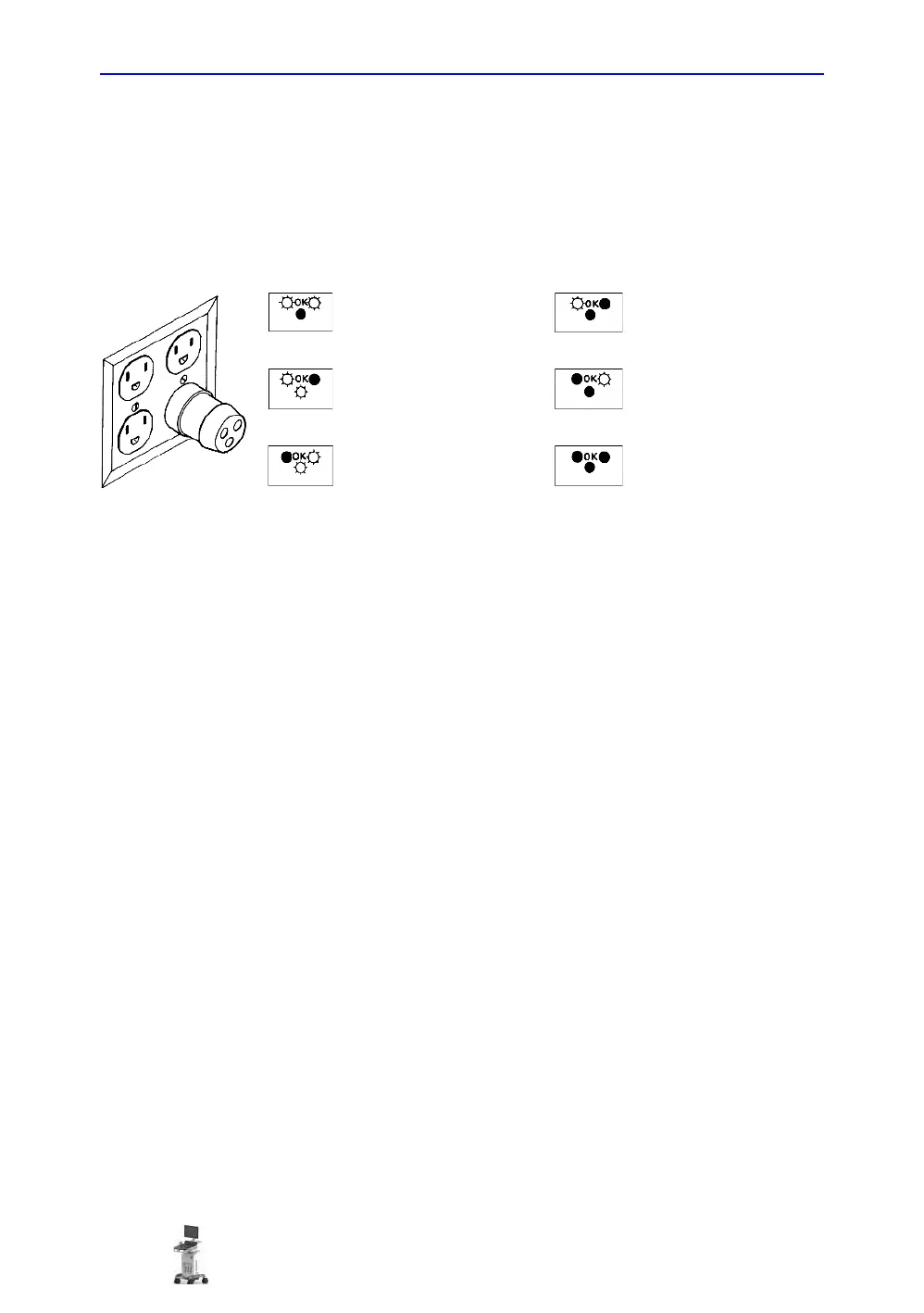

Figure 10-1. Typical alternate outlet tester
NOTE: No outlet tester can detect the condition where the Neutral
(grounded supply) conductor and the Grounding (protective
earth) conductor are reversed. If later tests indicate high leakage
currents, this should be suspected as a possible cause and the
outlet wiring should be visually inspected.
CORRECT WIRING OPEN GROUND WIRE
REVERSED POLARITY OPEN NEUTRAL WIRE
HOT AND GROUND
REVERSED
OPEN HOT WIRE

GE Versana Balance Specifications

General

Category	Ultrasound System
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Power Requirements	100-240 V AC, 50/60 Hz
DICOM Compatibility	Yes
Wireless Connectivity	Optional
Display	LED
Transducers	convex, linear, phased array
Image Storage	USB
Connectivity	USB, HDMI, Ethernet, DICOM
Applications	Obstetrics, Gynecology, Cardiology, Vascular, Urology
Imaging Modes	2D, M-Mode, 3D/4D
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to +60°C
Humidity Range	20% to 80% (non-condensing)
Display Size	15.6 inches
Transducer Ports	3 active transducer ports
