General Menu
(Main Menu > Configure > Setup > Edit Setup > General)

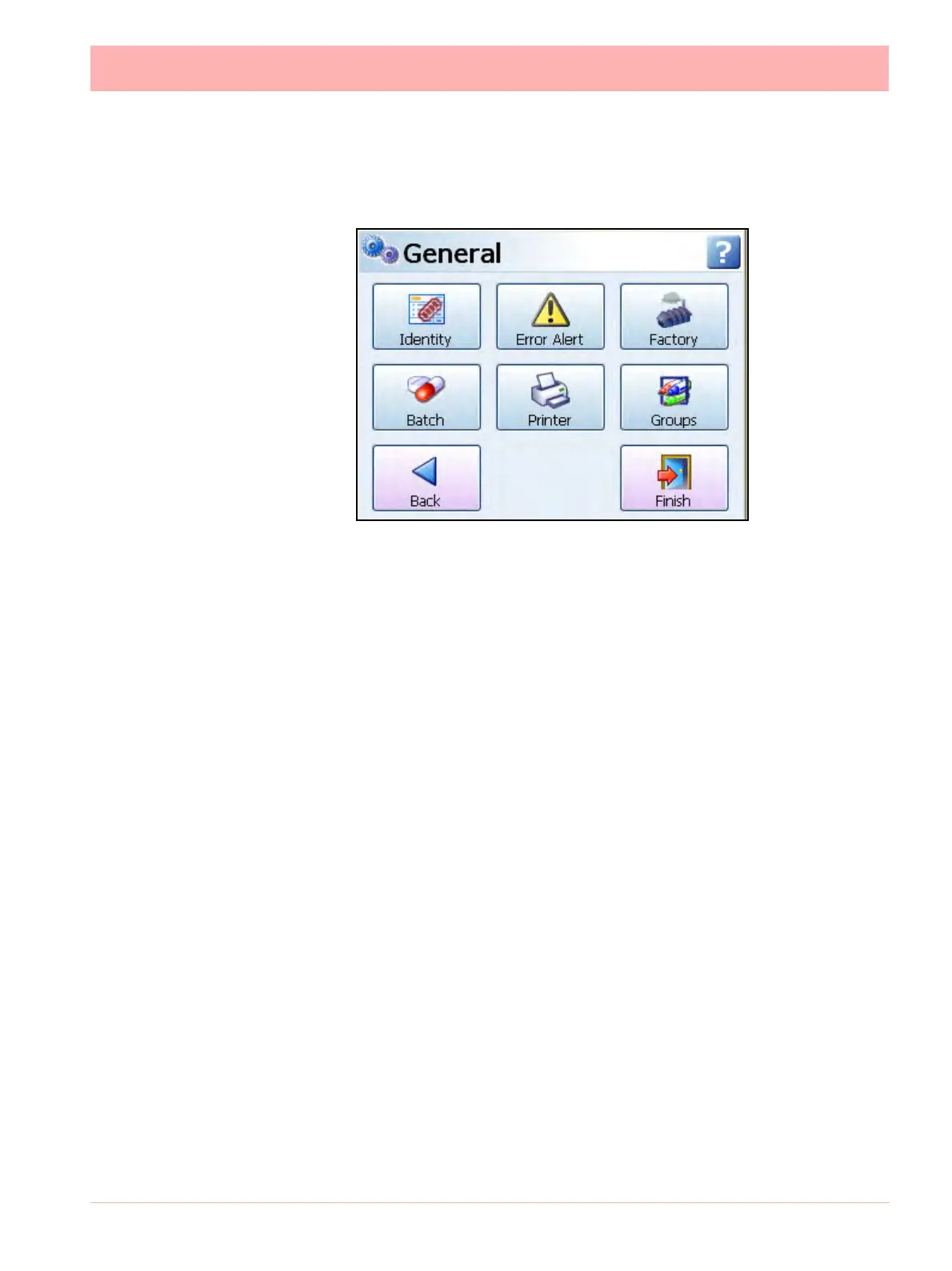

From this screen select the buttons required for General recorder configuration.
• Identity - Unique recorder information; Name, Description and ID. See “Identity” on
page 99
• Error Alert - Setup and customise the Alert box information. See “Error Alert” on
page 100.
• Factory - This menu contains Credits (for activating recorder options), Firmware
Upgrade, Calibration, Demo Traces, Reset Setup and Localisation.
See “Factory”
on page 102
• Batch - The Batch menu is for entering the Batch requirements for starting a new
batch, including using a Barcode reader.
“Batch Menu” on page 108.
• Printer - The Printer menu allows configuration for setting up a printer.
See “Printer
Menu” on page 111
.
• Groups - Groups of Pens can be specified and named with a Group name or number.
See “Groups” on page 112.
When the configuration is complete select the Finish button to Commit, Discard or Commit
Later. Select the Back button to return to the previous menu.
Identity
(Main Menu > Configure > Setup > Edit Setup> General > Ident)
Unique recorder information.
• Name - Enter the recorder’s name. Maximum characters 32
• Description - Enter a description for the recorder using the on-screen keyboard. Maxi-
mum characters 64
• ID - This is a unique 4 digit identifier specific to this recorder. It is advised to change the
ID as all recorders will default to 0001. If Modbus communications are used, it is highly
recommended to use the same number as the Modbus slave ID.
When the configuration is complete select the Finish button to Commit, Discard or Commit
Later. Select the Back button to return to the previous menu.
