122 43-TV-25-30 Iss.6 GLO Aug 07 UK
Layout
(Main Menu > Configure > Layout >)
The user can configure how the data is presented on the screen. From the Layouts screen
choose to Edit, Save or Load layouts in the recorder.

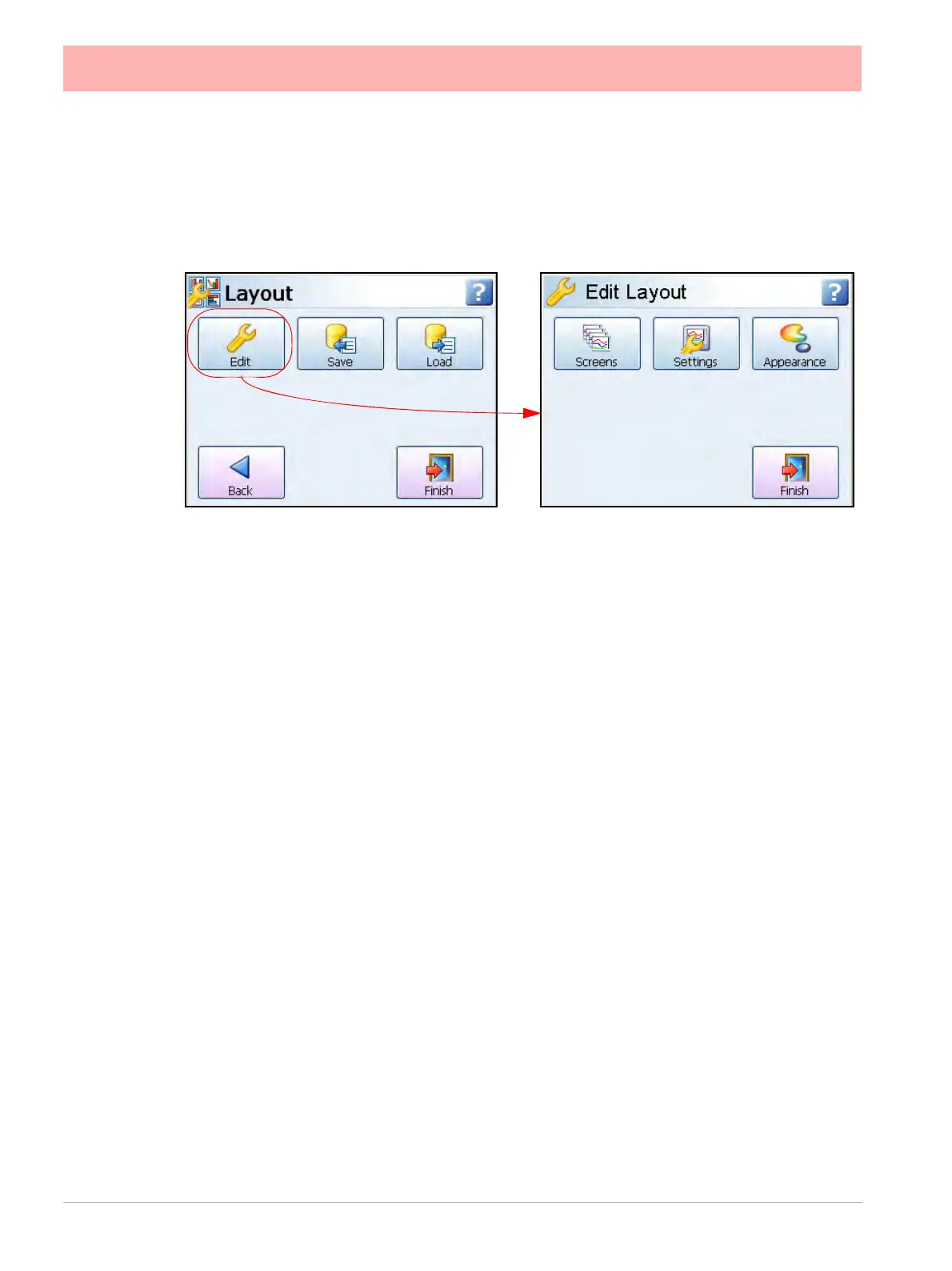

Edit Layout
(Main Menu > Configure > Layout > Edit)
The Edit Layout menu displays a Screen button to enable and display Standard and Custom
screens. The Settings button is used to enable screen cycling, alarm screens and replay
screens. The Appearance button is used to change the chart background colour for normal
charts and charts in replay mode.
Screens
(Main Menu > Configure > Layout > Edit > Screens)
This section allows the user to configure and modify the standard screens on the recorder.
The Edit button will produce a list of available screens in the recorder. In each screen you
can enable, check and change the screen properties.
The Edit button may display a warning message if the Commit Later option has been select-
ed. This means changes to the configuration have been made but the changes have not
been committed to the recorder. See “Commit Later” on page 168.
Select a standard or a new screen to view the following menu list:
• Name - Select to Change the name of the Standard Screen. 22 characters max, includ-
ing spaces.
• Enabled - Toggle On and Off to activate this Standard Screen
• Template Type - Select from a list of pre-defined templates.
• • DPMs - Select which pen is displayed. Activate to display Max/Min readings
and/or activate to display Total values
• • DPMs and Bars - Select which pen is displayed. Activate to display Max/Min
readings and/or activate to display Total values
• • Charts and DPMs - Select which pen is displayed.
