Minitrend QX Dimension details

4 Mounting clamp positions. For standard units fit only two

brackets on opposite sides of the unit, either top and bottom

or left and right slots. NEMA 4X rated recorders require all four

mounting brackets to be fitted.

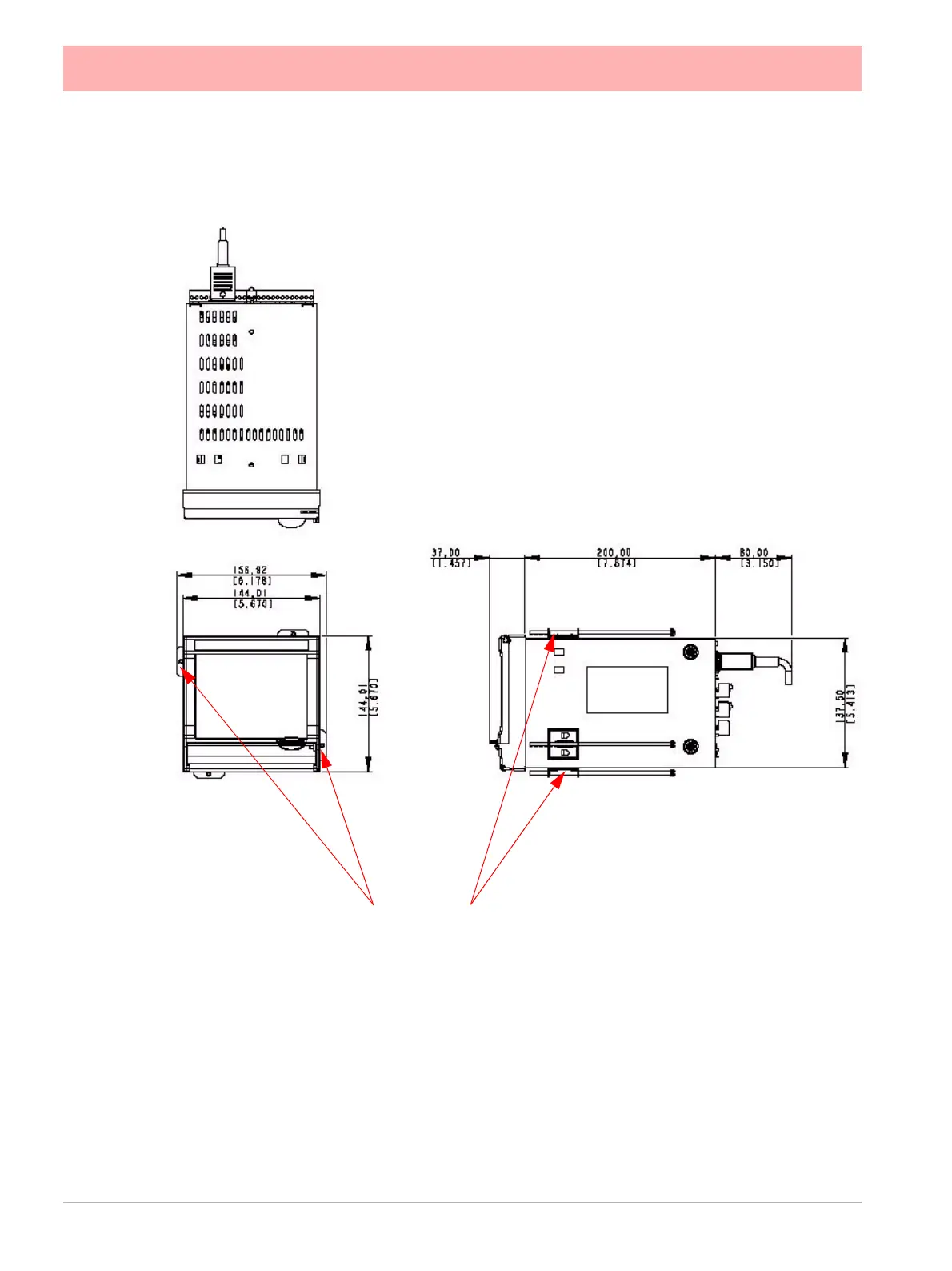

Figure 2.3 Minitrend QX Recorder dimensions
