(Main Menu > Configure > Setup > Edit Setup> Pens)
Select the Pens button to display all the pens available.
Click on individual pen number to set up each pen profile.
• Enabled - Toggle On and Off.
• Tag - Select and use the on-screen keyboard to type in an identifier for the pen. Up to
48 characters.
• Description - (Screen Designer screens only) This field is so a label on a Screen
Designed screen can display a description.
• Maths Type - Analogue signals may have a mathematical calculation performed on
them before they are represented as a pen. Basic maths is standard in all recorders.
Full Maths or Math Scripting are options that must be activated.
See “Options” on
page 157.
• Edit Maths - Edit the Maths for this particular pen. For details see “Appendix B:
Maths Expressions” on page 271.
• Scale - Select Scale to go to a sub menu to set up the scale parameters. See “Scale
Menu” on page 65
• Logging - Select Logging to go to a sub menu to set up the logging configuration. See
“Logging Menu” on page 66
• Alarms - Select Alarms to go to a sub menu to set up the alarm profile. See “Alarms
Menu” on page 68
• Totaliser - Select Totaliser to go to a sub menu to set up the totaliser settings. See
“Totaliser Menu” on page 70
• RAV - This will display the Rolling Average for this pen. The recorder takes an average
of the number of samples entered.
Enable the RAV function and enter the Number of Samples (Max 500). Then enter the
Sample Interval, or how often a reading is taken, in seconds. The Prefill will add in

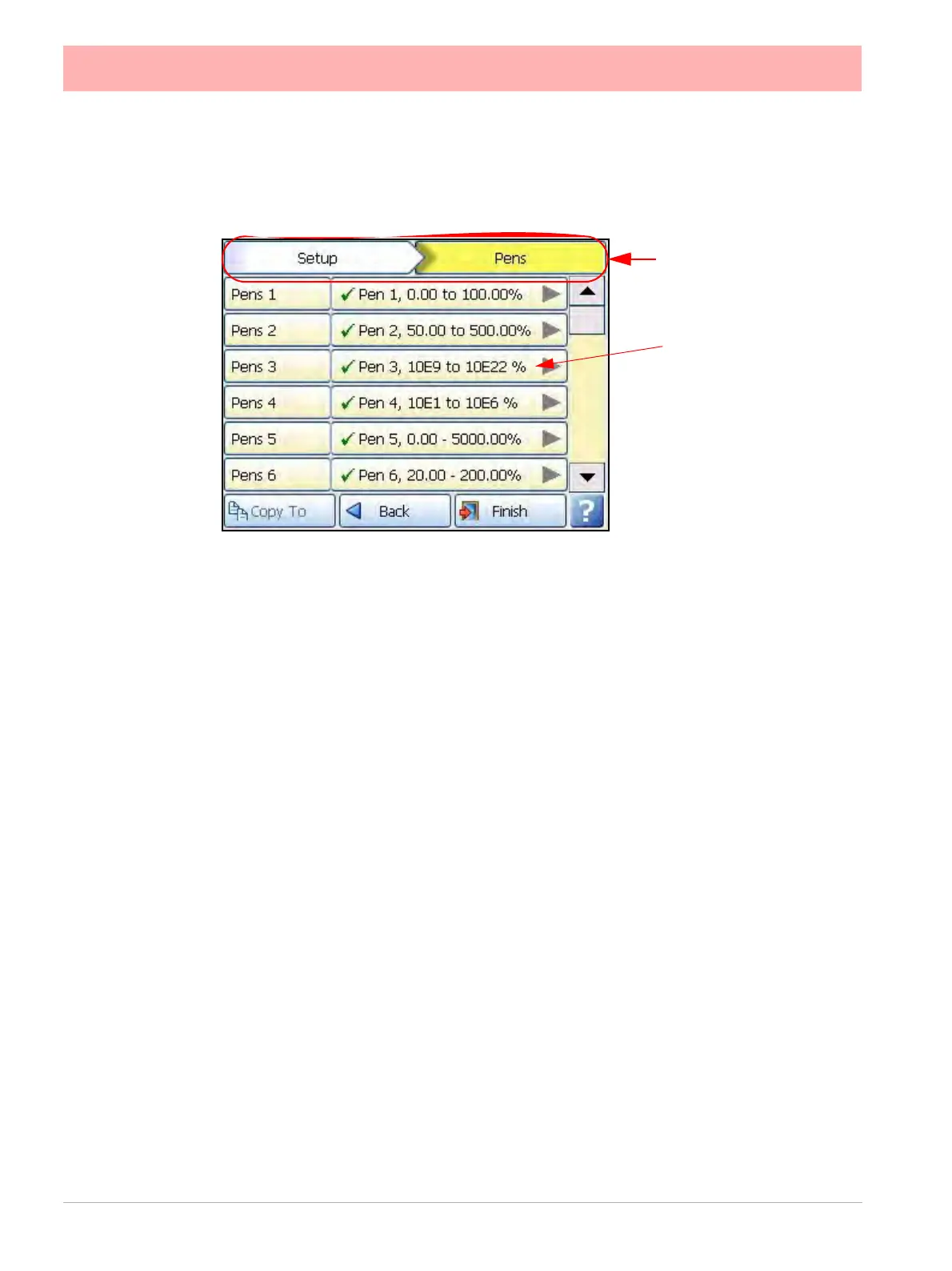

The Pens screen displays
all the available pens.
Each pen displays its
scale settings.
Select a pen number to
edit the setup of each pen
including the Scale,
Logging, Alarms and
Totaliser
