43-TV-25-30 Iss.6 GLO Aug 07 UK 223
The status lights will not be active yet. This is because no logging or graphs have been set
up so no data is being requested.
To set up Logging go to “Logging Configuration” on page 224
To start Realtime graphing go to “Realtime Graphing” on page 229
Edit a Device
Select the Comms port containing the device for editing and right click on the device either
in the left or top window. The Edit Device Details dialog box will appear showing the config-
uration for comms with that device. Any fields not greyed-out can be changed. For Ethernet
devices the IP address can be changed. Any device can be made active or inactive from
here. For active Modbus devices, the recorder name and protocol variant can be changed
(modbus vs Modbus X). For an inactive Modbus device the device profile can also be
changed.
For information on the Test button, see above. Click on the OK button to save the changes.
Delete a Device
Select the Comms port containing the device to be deleted and right click on the device ei-
ther in the left or top window. Select Delete Device from the resulting menu. The Delete De-
vice Details dialog box will appear showing the details of that particular device. Check this
is the correct device for deletion, then click on the OK button and the device is removed,
otherwise the operation can be cancelled.

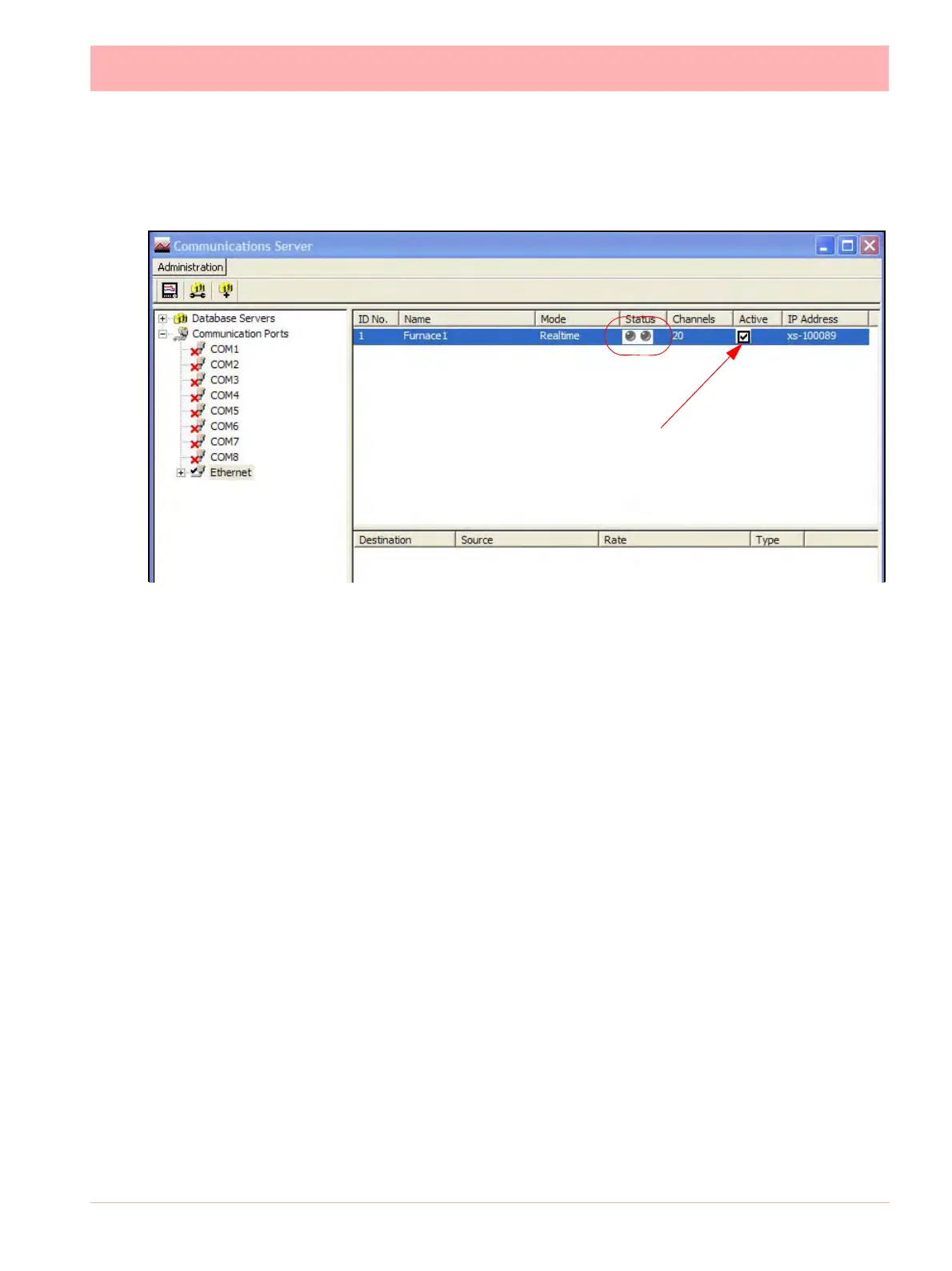

New device is added,
ensure the “Active” box is ticked.
Figure 8.6 New Device Status
