Status Menu
(Main Menu > Status)

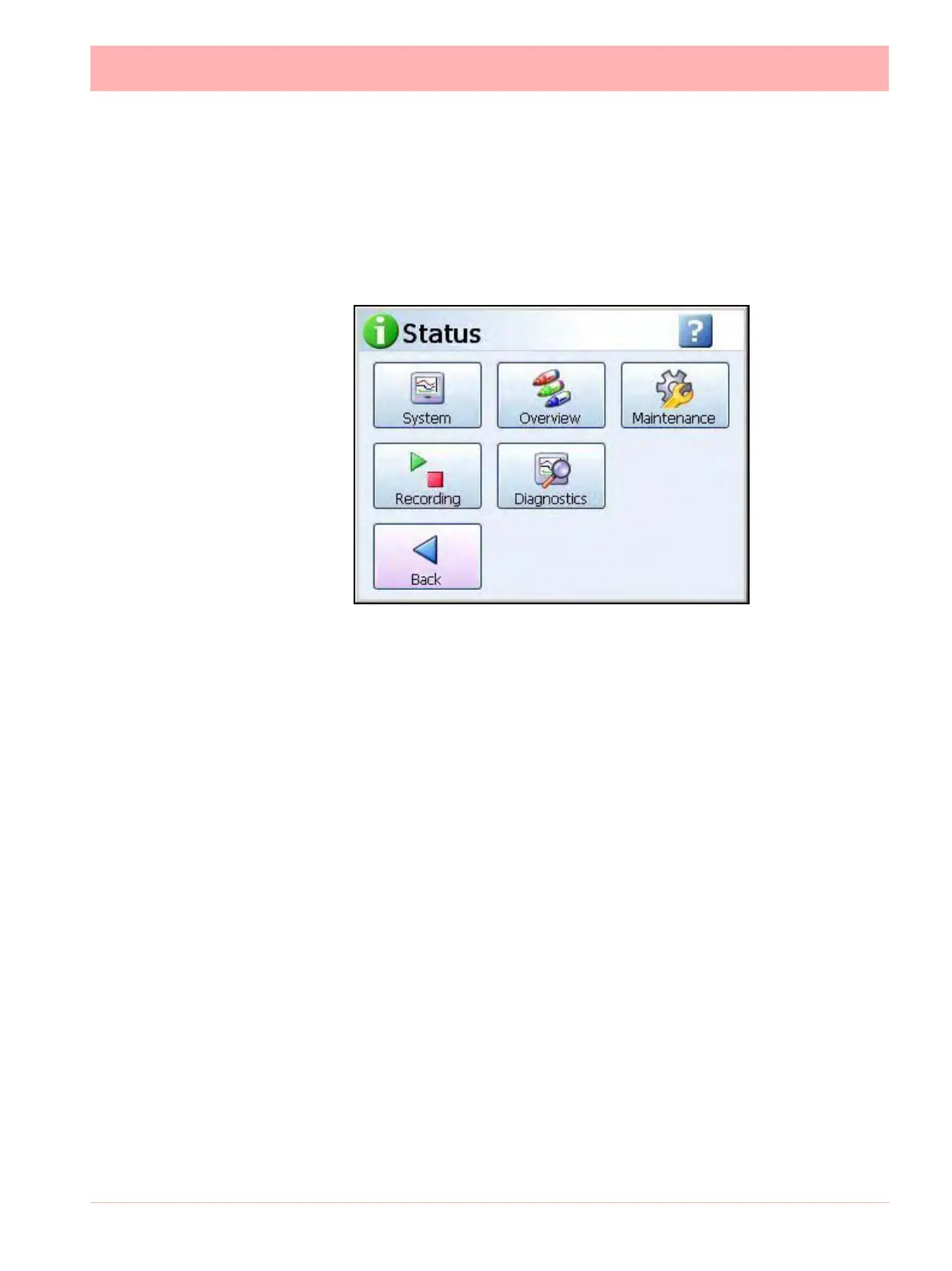

Use the Status menus to easily check on the current configuration of the recorder. A number
of status information screens are available to the user, these will provide information for re-
porting and diagnostic purposes.
The following Status screens are available
• System - Contains general information about the recorder setup such as Device infor-
mation, software and firmware versions and the recorder’s IP address. Plus a list of
Firmware options and I/O cards in the recorder,
See “System” on page 156
• Pen Overview - Each pen is displayed with full configuration details, including: Pen,
Value, Name, Maths, Scale, In Alarm, Pen Rate, Alarm, Total, and Group.
See “Pen
Overview” on page 158
• Maintenance - The recorder keeps track of important “life actions” for improved diag-
nostics and preventative maintenance notification. Health Watch/Maintenance is availa-
ble as a firmware option. See “Maintenance” on page 159
• Recording - Shows the current logging status of all pens within the system: Pen, Value,
Recording, Log Rate, Alarm Rate and Group. See “Recording” on page 160
• Diagnostics - Complete diagnostics is shown for each of the following categories:
Hardware (including Analogue In, Analogue Out, Digital IO and Pulse Inputs), Events,
Comms and Media. This is an option and requires firmware credits to be activated. See
“Diagnostics” on page 161
