126 43-TV-25-30 Iss.6 GLO Aug 07 UK
Save Layout
(Main Menu > Configure > Layout > Save)

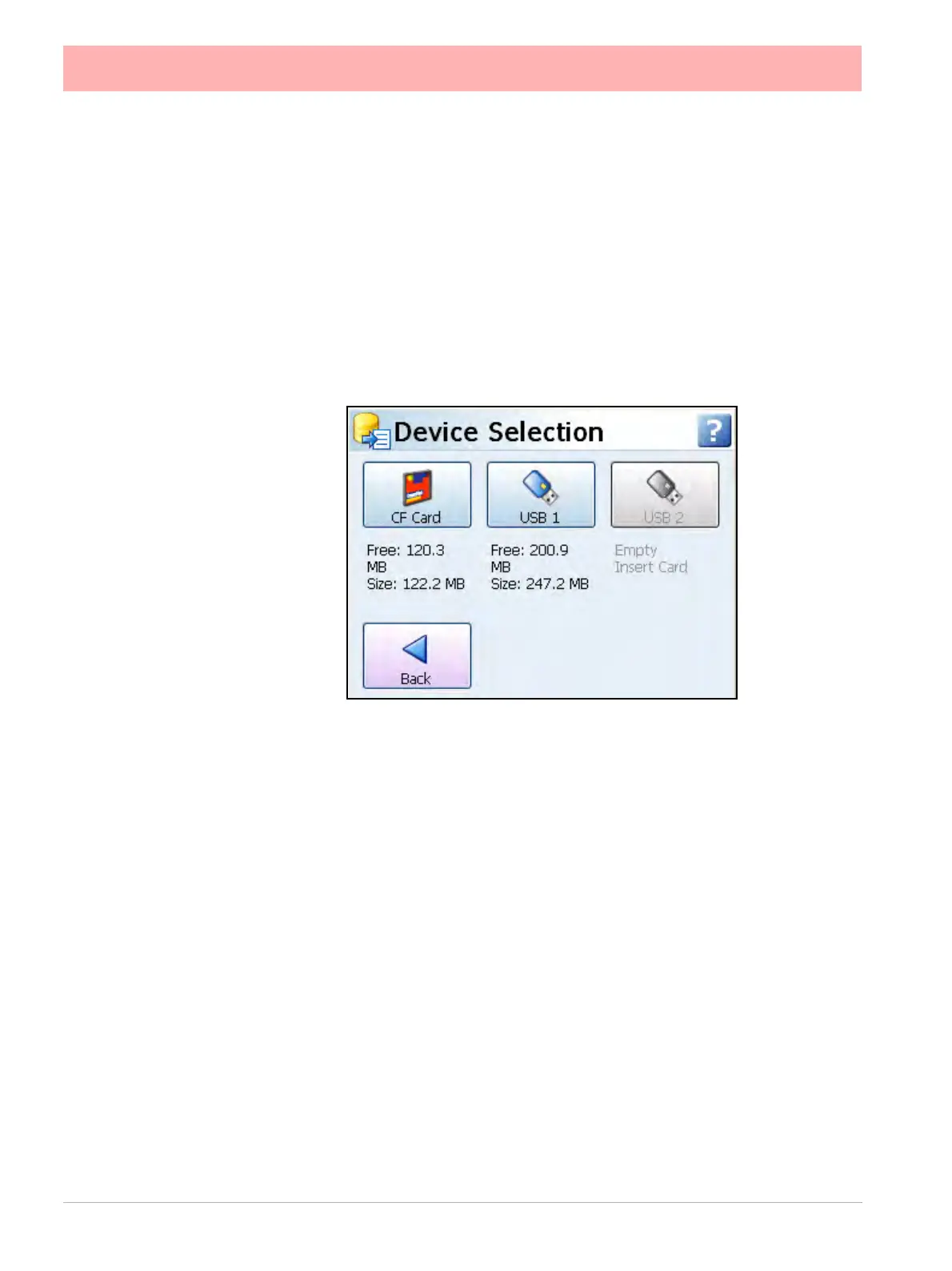

Layouts can be saved to Compact Flash or USB removable storage media. Plug in a remov-
able storage media device and the corresponding button on the screen will become active,
select the relevant media button.
Enter the file name required in the File name box. Maximum of 50 characters.
File format is .lay, click on the Save button.
The Compact Flash and the front USB device port are found under the front flap on the re-
corder. There is another USB port at the rear of the recorder. The first USB device fitted will
be USB1, therefore the second USB device fitted is USB2. Compact Flash not available
for
the
eZtrend QXe.
Load Layout
(Main Menu > Configure > Layout > Load)
Layouts can be loaded from Compact Flash or USB removable storage media. Plug in a re-
movable storage media device and the corresponding button on the screen will become ac-
tive. Select the relevant media button to display the layout files available to load. Select the
file and click on the Load button.
All screens loaded on from another recorder, via Compact Flash or USB, or Screen Design-
er will over-write the existing screens on the recorder.
The Compact Flash and the front USB device port are found under the front flap on the re-
corder. There is another USB port at the rear of the recorder. The first USB device fitted will
be USB1, therefore the second USB device fitted is USB2.
See “Storage Media Format” on page 146 for formatting information of Compact Flash
cards and USB keys.
Compact Flash not available
for the eZtrend QXe recorder.
When loading layouts from Screen Designer see “Loading a Layout into a Recorder” on
page 199.
