HP 8590 E-Series User Manual

TUNING
CAL
386866688
ZERO
211996616
Sweepsens <10M 0.0EElGS303
FAST
56503057
Sweepsens Wide 0.080002030
Main Coil Sens 0.098835200
ME0 1114621728
FM Co11sens Er 0.958118558
SLOW
22348669
Wide 01s~ Err 2.590917587
PkOfst
28
Wdsc sweeprenr 0.000502140
TCXO
-98
EYO A slope
5E-10
Last Cal Freq 18:18:33 NAR 84, 1992
Last Cal hmp 18:26:17 MAR 04, 1992
TRACKING GEN
FM DEMODULATION
AOFST
3051 ZERO 0
XOFST
3095 SLOPE 16893
OCORR -22372
Narrow BW 1756
ASLOP 0.617283940
Wide BW 1751
FSLOP 0.00EEEE168
XSLOP 8.307900012
GATE 0.999294639
Figure 4-30. Self-Calibration Data Results
If the number is not between 0.98 and 1.0, check that the GATE TRIGGER INPUT connector
is not connected to anything, then repeat the previous steps of this procedure.
7. Press (jjj.
Performing a Functional Check of Option 105
To check that the time-gated spectrum analyzer capability is operational, perform the following
steps:
1. Connect the rear panel HIGH SWEEP IN/OUT connector to the GATE TRIGGER INPUT
connector with a short BNC calibration cable (see Figure 4-31).

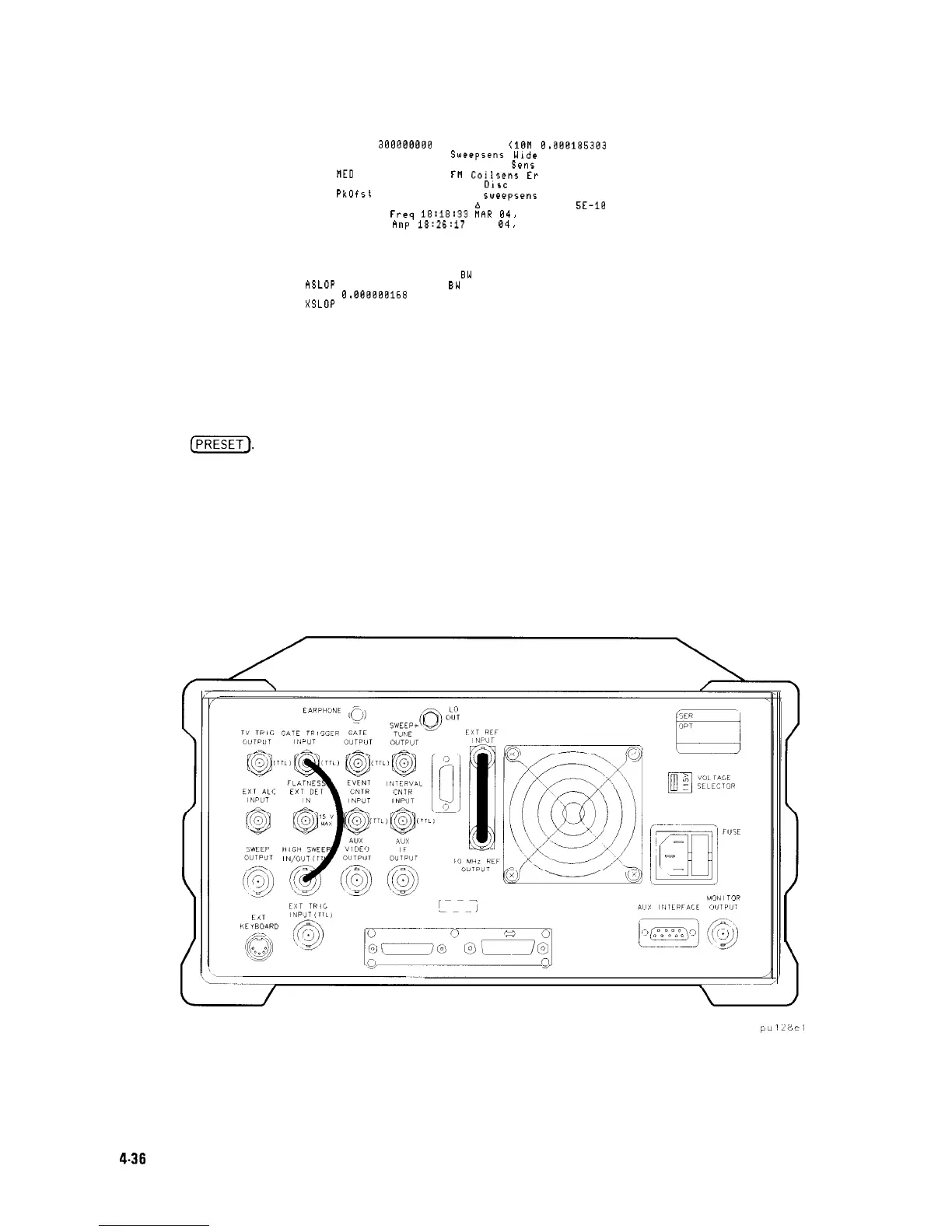

Figure 4-31. Rear Panel Connections for Option 105
4.36 Making Measurements
