Power Requirements
The spectrum analyzer is a portable instrument and requires no physical installation other than
connection to a power source.
Warning
Failure to ground the spectrum analyzer properly can result in personal
injury. Use an ac power outlet that has a protective earth contact. DO
NOTdefeat
the earth grounding protection by using an extension cable,
power cable, or autotransformer without a protective ground conductor.
Caution
Do not connect ac power until you have verified that the line voltage is correct,
the proper fuse is installed, and the line voltage selector switch is properly
positioned, as described in the following paragraphs. Damage to the equipment
could result.
‘Ihble
1-2. Power Requirements
Setting the Line Voltage Selector Switch
Caution
Before connecting the spectrum analyzer to the power source, you must set the
rear-panel voltage selector switch correctly to adapt the spectrum analyzer
to the power source. An improper selector switch setting can damage the
spectrum analyzer when it is turned on.
Set the instrument’s rear-panel voltage selector switch to the line voltage range
(115 V or 230 V) corresponding to the available ac voltage. See Figure l-2. Insert a small
screwdriver or similar tool in the slot and slide the switch so that the proper voltage label is
visible.
,,*-\,
‘I/
“\

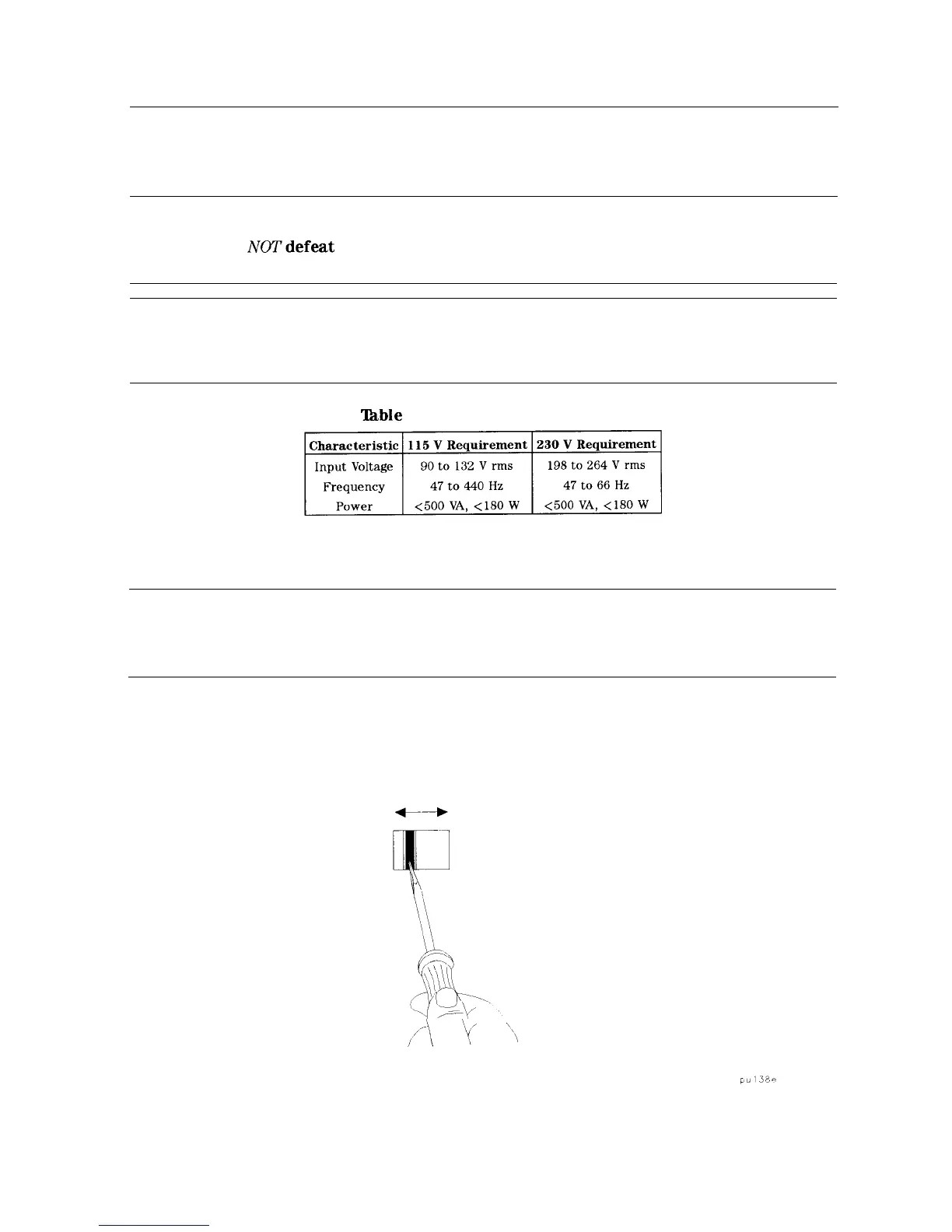

Figure l-2. Setting the Line Voltage Selector Switch
1-4 Preparing For Use
