HP 8590 E-Series User Manual

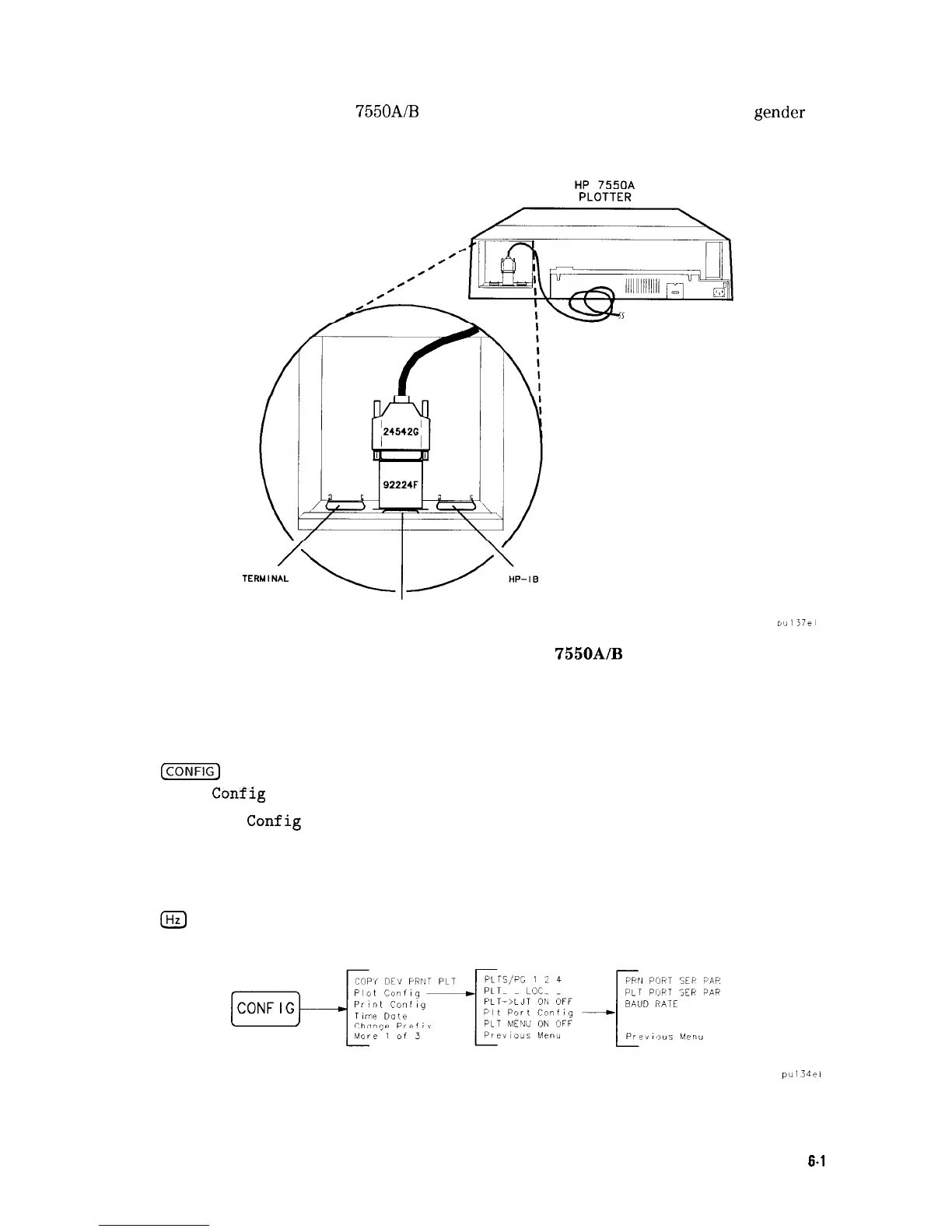

If you are connecting an HP 7550A/B plotter you will need to use the 92224F (f-f) gender
changer as shown in Figure 6-10.
COMPUTER/MODEM
Figure 6-10. Connecting the HP 7550A/B Plotter
3. Turn on the spectrum analyzer and the plotter.
4. Set the spectrum analyzer baud rate (see Figure 6-11). To set the spectrum analyzer baud
rate to 1200 baud, press:
(p5iFiq
Plot Config
Plt Port Config
PLT PORT SER PAR (so that SER is underlined)
BAUD RATE
1200
CHz)
pu 134P /
Figure 6-l 1. Baud Rate Menu Map
Printing and Plotting
6-l 5
